Audix AP42 OM5 Dual Handheld Wireless System (B Band / 554-586 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A high performance handheld diversity wireless system featuring the legendary Audix OM5. Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.
Features:
R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

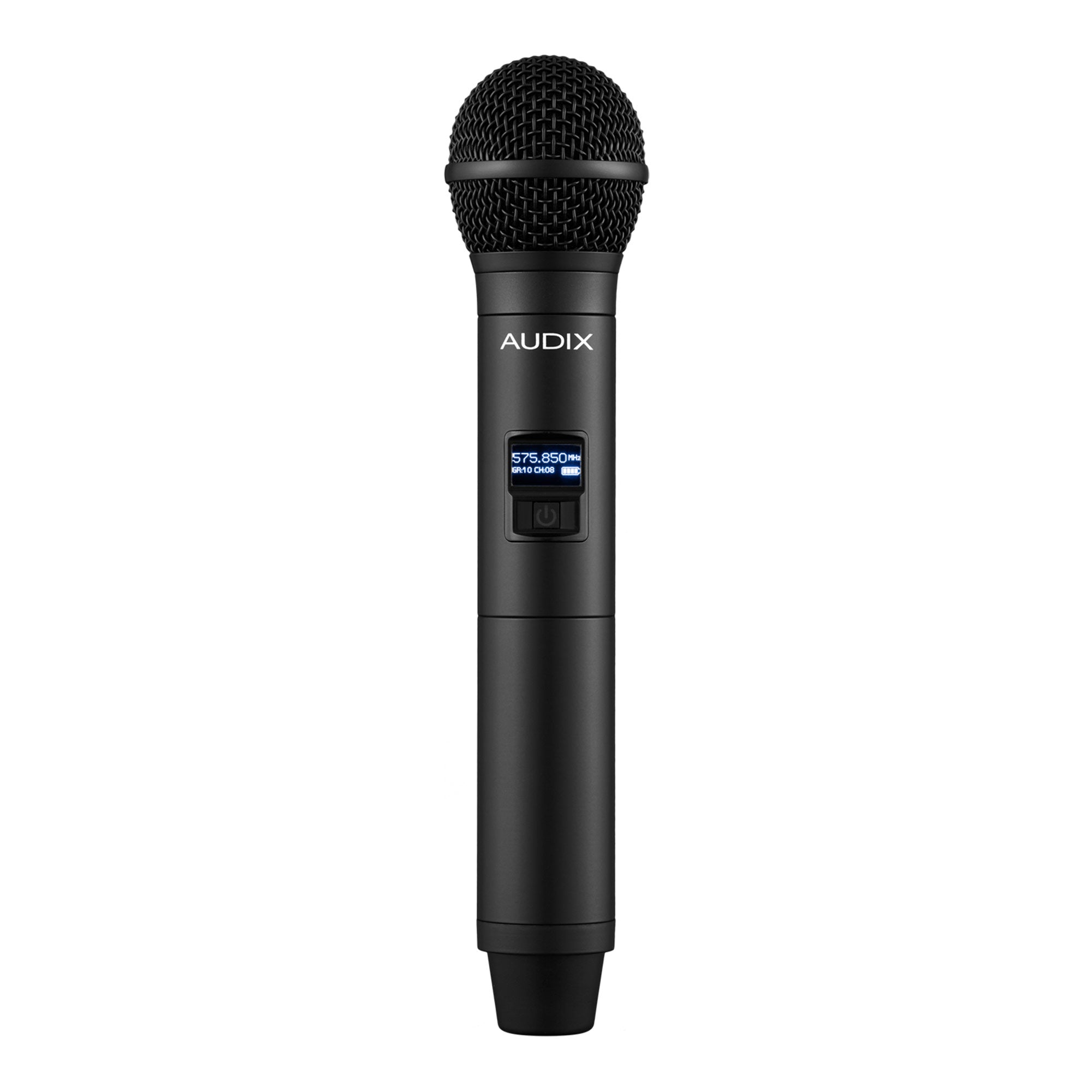

H60 OM5 Handheld Microphone
- 64 MHz Wide spectrum transmitter with OM5 dynamic capsule
- Durable metal housing
- 10 Hour run time - AA batteries
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R42 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.4 lbs. / 2.0 kg |
| H60 Handheld Transmitter | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L), 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
A high performance handheld diversity wireless system featuring the legendary Audix OM5. Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.
Features:
R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
H60 OM5 Handheld Microphone
- 64 MHz Wide spectrum transmitter with OM5 dynamic capsule
- Durable metal housing
- 10 Hour run time - AA batteries
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R42 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.4 lbs. / 2.0 kg |
| H60 Handheld Transmitter | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L), 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
