Audix AP61 OM2 L10 - Combo Wireless System (522 - 586 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Audix AP61 OM2 L10 is a Performance Series single-channel true diversity receiver and dual-transmitter bundle designed to deliver reliable long-range wireless audio for preachers, guest speakers, and announcers in houses of worship and live stage applications. It includes an R61 single-channel true diversity receiver, a B60 bodypack transmitter, an ADX10 cardioid condenser lavalier mic, and one H60 transmitter with an OM2 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, four AA batteries, a power supply, and a rackmount kit
R61 True Diversity Receiver
- 64 MHz Wide spectrum tuning receiver
- 207 Pre-coordinated frequencies for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
- 2560 tunable frequencies

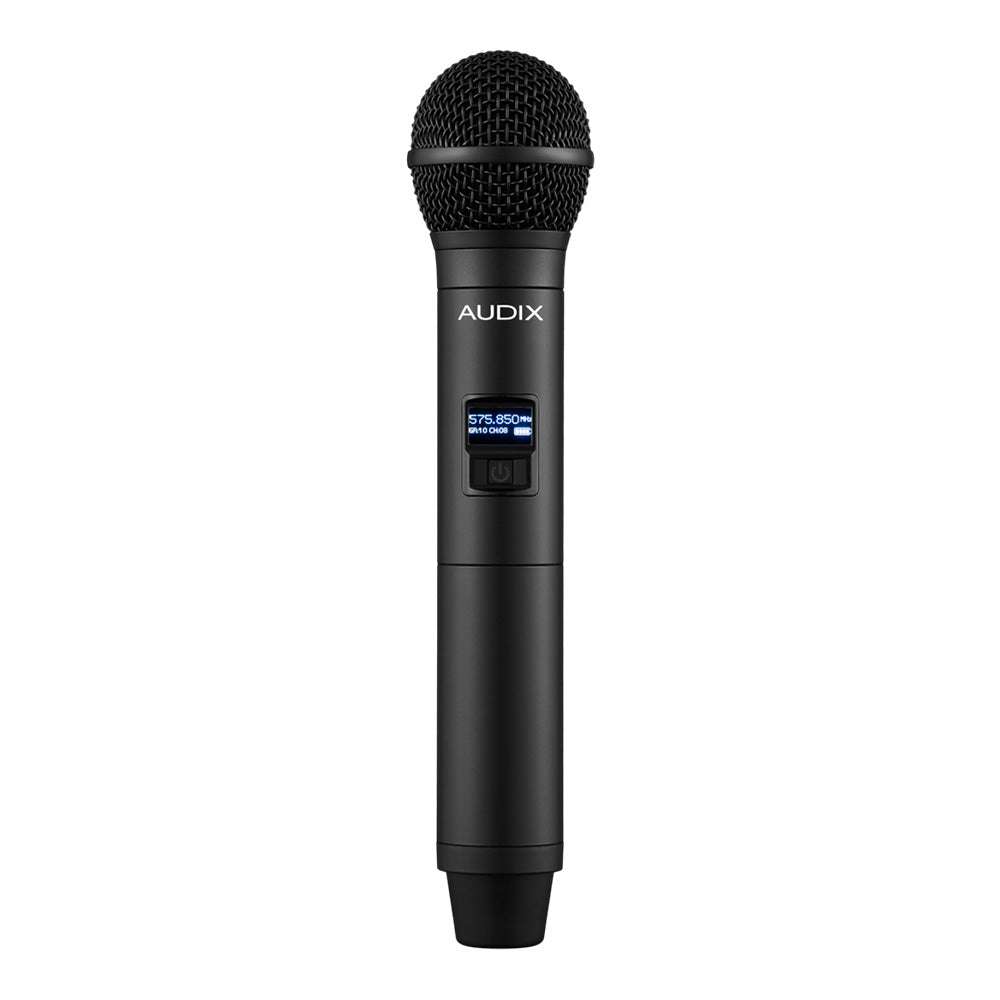

H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
- Durable metal housing
- 14 Hour run time – AA batteries

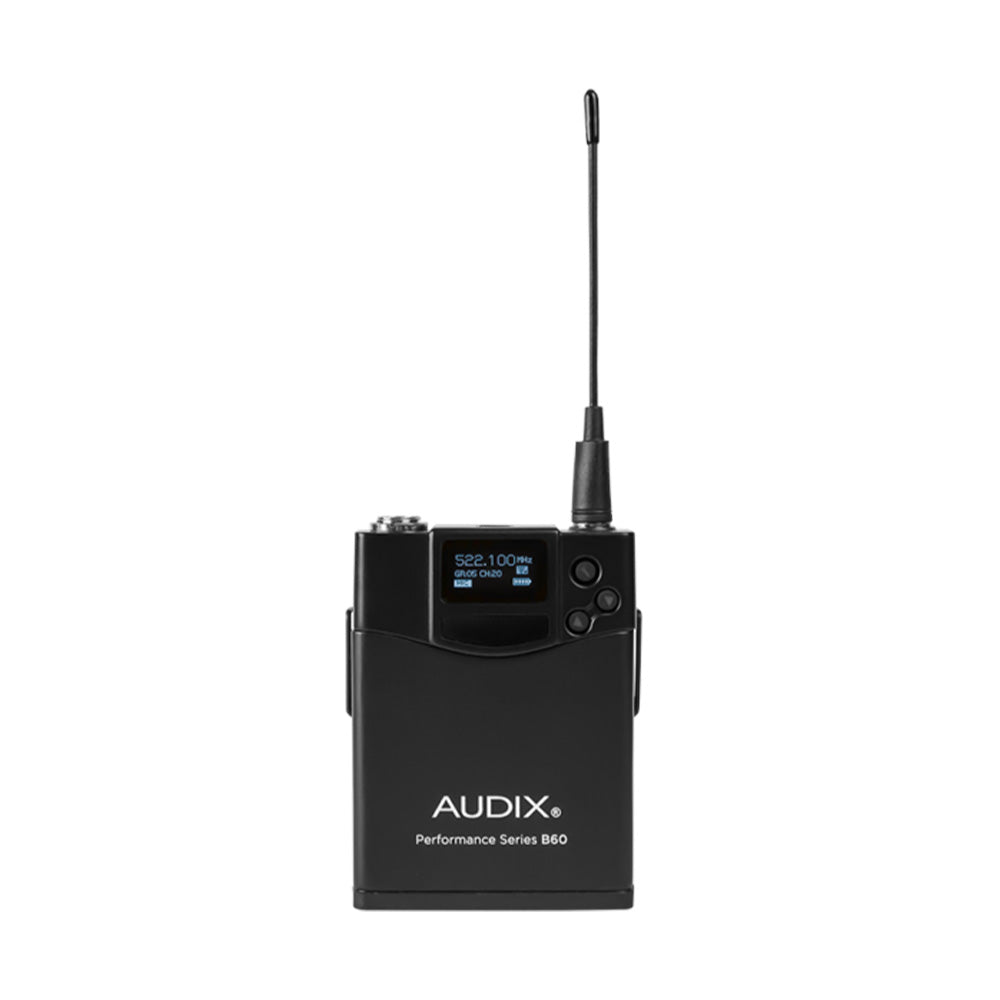

B60 L10 Bodypack Transmitter

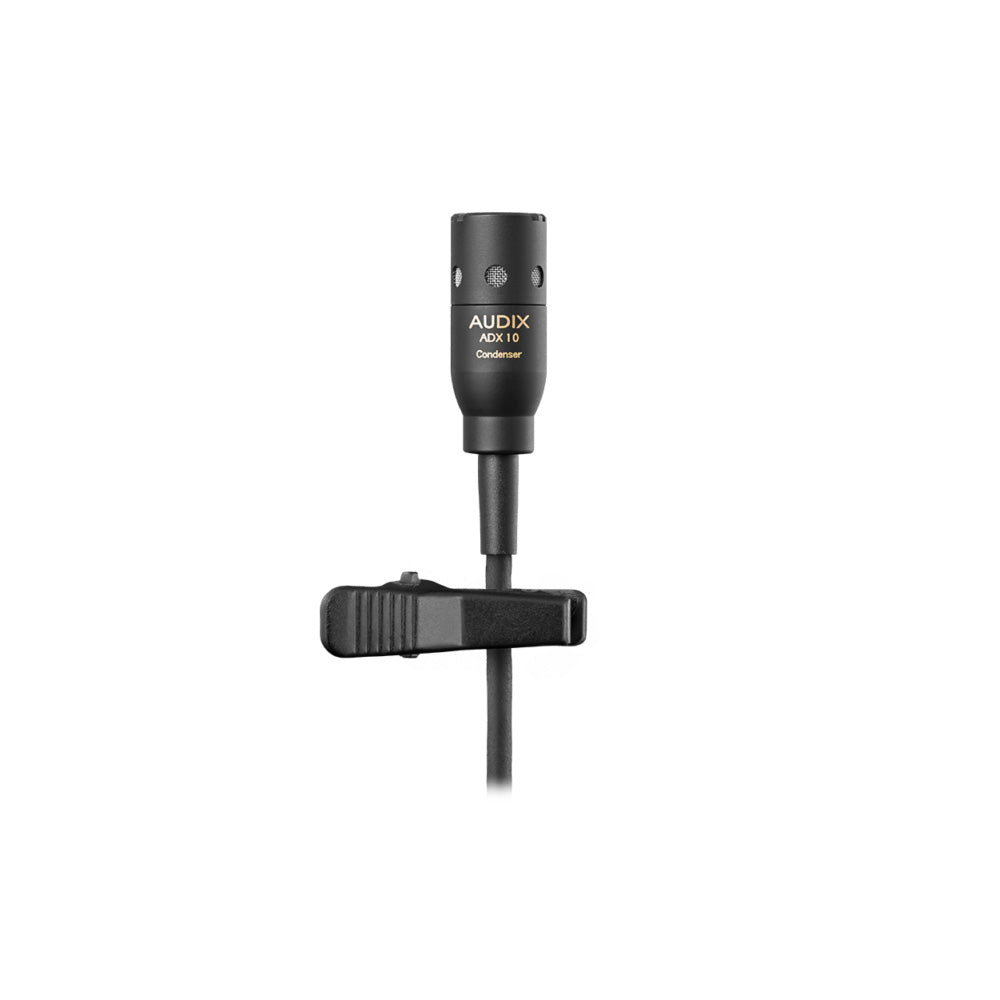

- 64 MHz Wide spectrum transmitter with ADX10 lavalier microphone
- Durable metal housing
- 14 Hour run time – AA batteries
| R61 Receiver | |
| Frequency Range | 522 MHz Ð 586 MHz |
| Bandwidth | 64 MHz |
| Compatible Systems | 20 Compatible system operation |
| Switchable Frequencies | 207 Preset frequencies |
| Manual Mode | 2560 Frequencies (spaced 25 kHz apart) |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 112 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | ?.4% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB?V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 450', (137 M) |
| Power Supply | 205 mm (W) x 206 mm (D) x 44 mm (H) |
| Net Weight | 2.43 lbs. / 1.1 kg |
| H60 Handheld | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L) 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 db, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
