Audix AP62 C2BP - Combo Wireless System (522 - 586 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the B60 bodypack to allow your choice of lavalier or headset microphones.
This is a professional wireless microphone system with the flexibility of a handheld mic. The OM2 has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.
A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and an antenna distribution system for up to four systems (8 channels).
R62 Two-Channel True Diversity Receiver
- 64 MHz Wide spectrum tuning receiver
- 2560 Tunable frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam

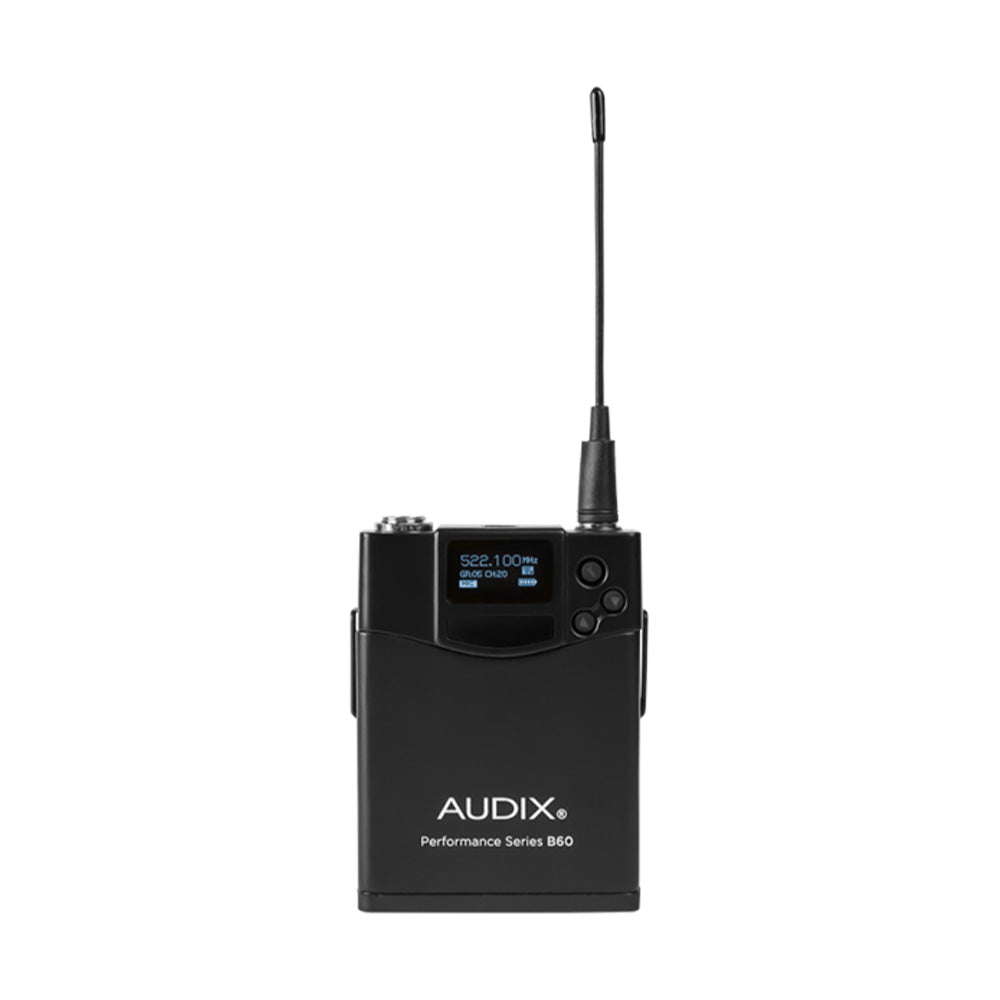

B60 Bodypack Transmitter:
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 14 Hour run time – AA batteries

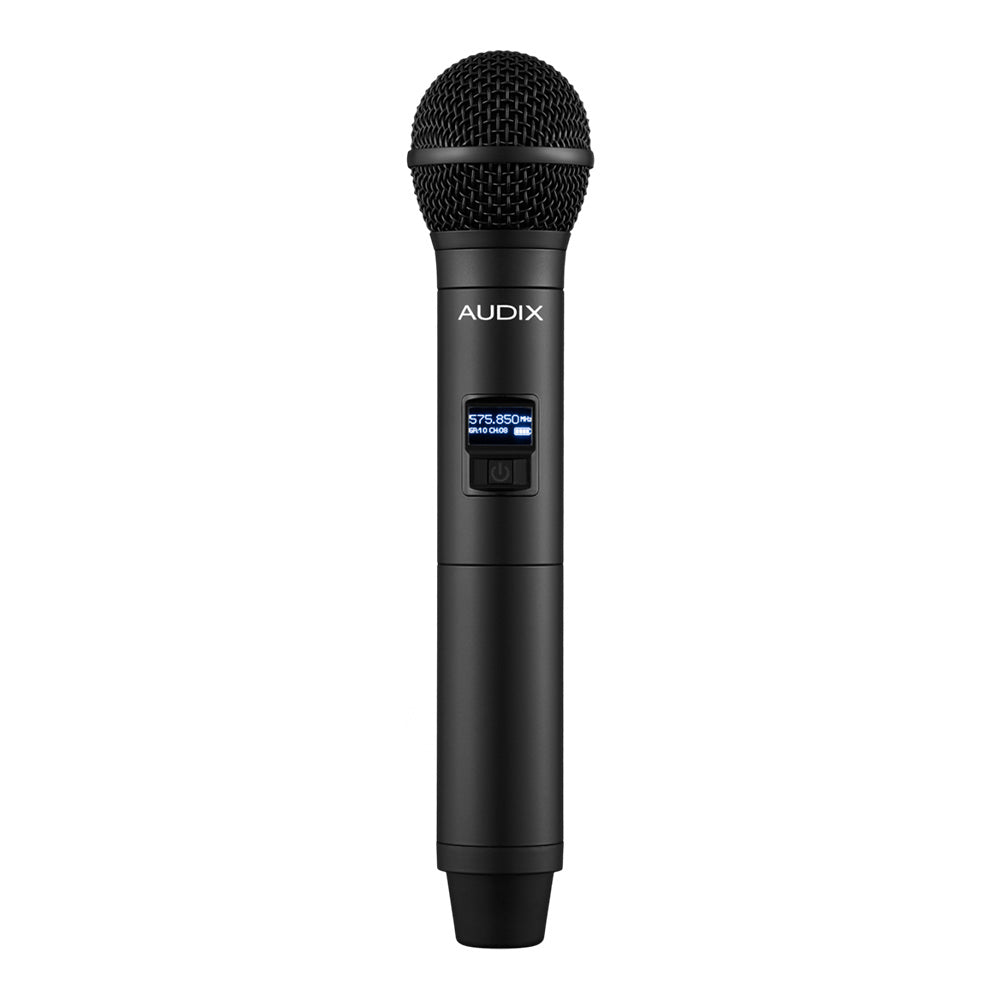

H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
- Durable metal housing
- 14 Hour run time – AA batteries
| R62 Receiver | |
| Frequency Range | 522 MHz Ð 586 MHz |
| Bandwidth | 64 MHz |
| Compatible Systems | 20 Compatible system operation |
| Switchable Frequencies | 207 Preset frequencies |
| Manual Mode | 2560 Frequencies (spaced 25 kHz apart) |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 112 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | ?.4% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB?V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 450', (137 M) |
| Power Supply | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.65 lbs. / 2.12 kg |
| H60 Handheld | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L) 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 db, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
A professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the B60 bodypack to allow your choice of lavalier or headset microphones.
This is a professional wireless microphone system with the flexibility of a handheld mic. The OM2 has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.
A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and an antenna distribution system for up to four systems (8 channels).
R62 Two-Channel True Diversity Receiver
- 64 MHz Wide spectrum tuning receiver
- 2560 Tunable frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
B60 Bodypack Transmitter:
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 14 Hour run time – AA batteries
H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
- Durable metal housing
- 14 Hour run time – AA batteries
| R62 Receiver | |
| Frequency Range | 522 MHz Ð 586 MHz |
| Bandwidth | 64 MHz |
| Compatible Systems | 20 Compatible system operation |
| Switchable Frequencies | 207 Preset frequencies |
| Manual Mode | 2560 Frequencies (spaced 25 kHz apart) |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 112 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | ?.4% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB?V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 450', (137 M) |
| Power Supply | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.65 lbs. / 2.12 kg |
| H60 Handheld | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L) 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 db, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
