Description

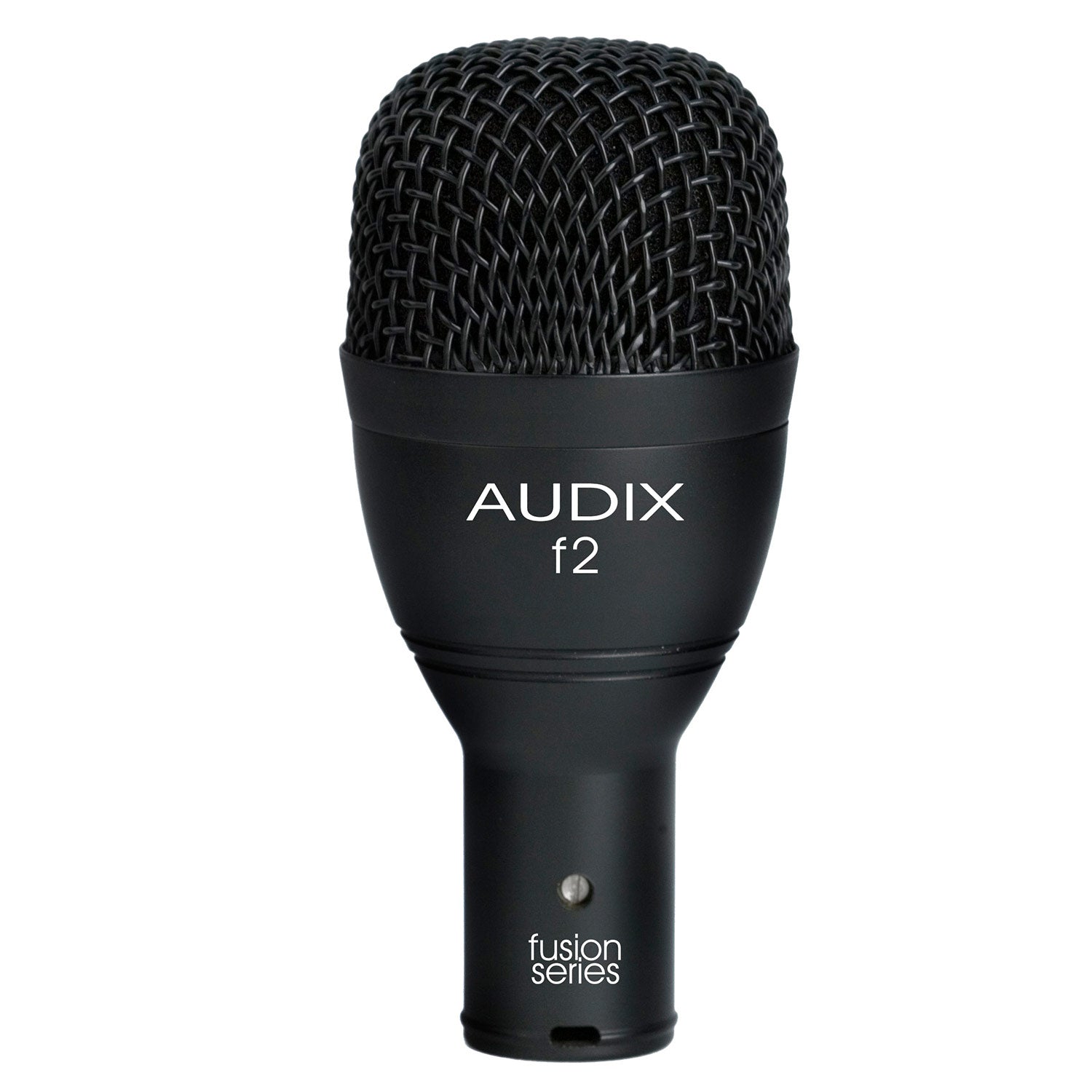

Designed, assembled and tested by Audix in the USA, the f2 is a dynamic instrument microphone used for stage and studio applications. The f2 is characterized with a hypercardioid pickup pattern for isolation and feedback control and is equipped with a LM (tm) diaphragm for natural, accurate sound reproduction. Features:
- Compact, lightweight
- Cast zinc alloy body
- LM (low mass) diaphragm
- Studio quality sound
- Excellent mid-bass transient response
- 3 year warranty

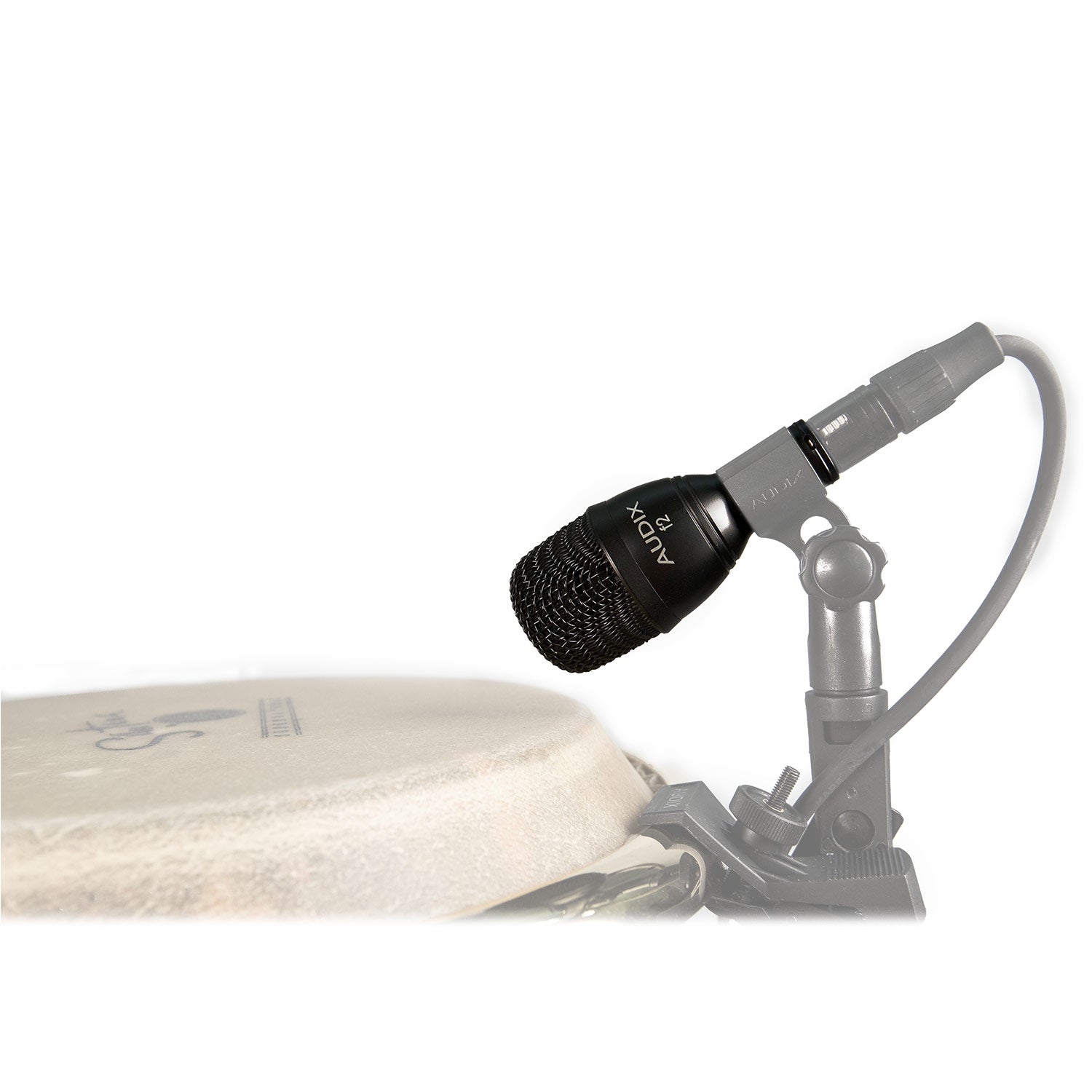

The f2 is lightweight, compact and easy to position. With a wide frequency response of 52 Hz - 15 kHz and the ability to handle sound pressure levels of 139 dB, the f2 is an excellent choice for miking instruments with a percussive nature such as rack toms, congas, saxophone, guitar cabinets and brass.
Roadworthy construction includes a precision cast zinc alloy body, black coat finish, laser etched model and serial number, steel mesh grill, gold XLR connector and a tension-fit heavy duty nylon mic clip.
Transformerless design, low impedance and balanced output allow for interference-free performance even with long cable runs.
| Transducer Type | Dynamic |
| Frequency Response | 52 Hz - 15 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 580 ohms |
| Sensitivity | 2 mV - Pa @ 1K |
| Maximum SPL @ .5% THD | 139 dB |
| Polarity | Pin 2 positive |
| Housing - Finish | Cast Zinc Alloy - Black Coat |
| Weight | 8.7 oz |
| Length | 4.09 inches |
| Transducer Type | Dynamic |
| Frequency Response | 52 Hz - 15 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 580 ohms |
| Sensitivity | 2 mV - Pa @ 1K |
| Maximum SPL @ .5% THD | 139 dB |
| Polarity | Pin 2 positive |
| Housing - Finish | Cast Zinc Alloy - Black Coat |
| Weight | 8.7 oz |
| Length | 4.09 inches |
