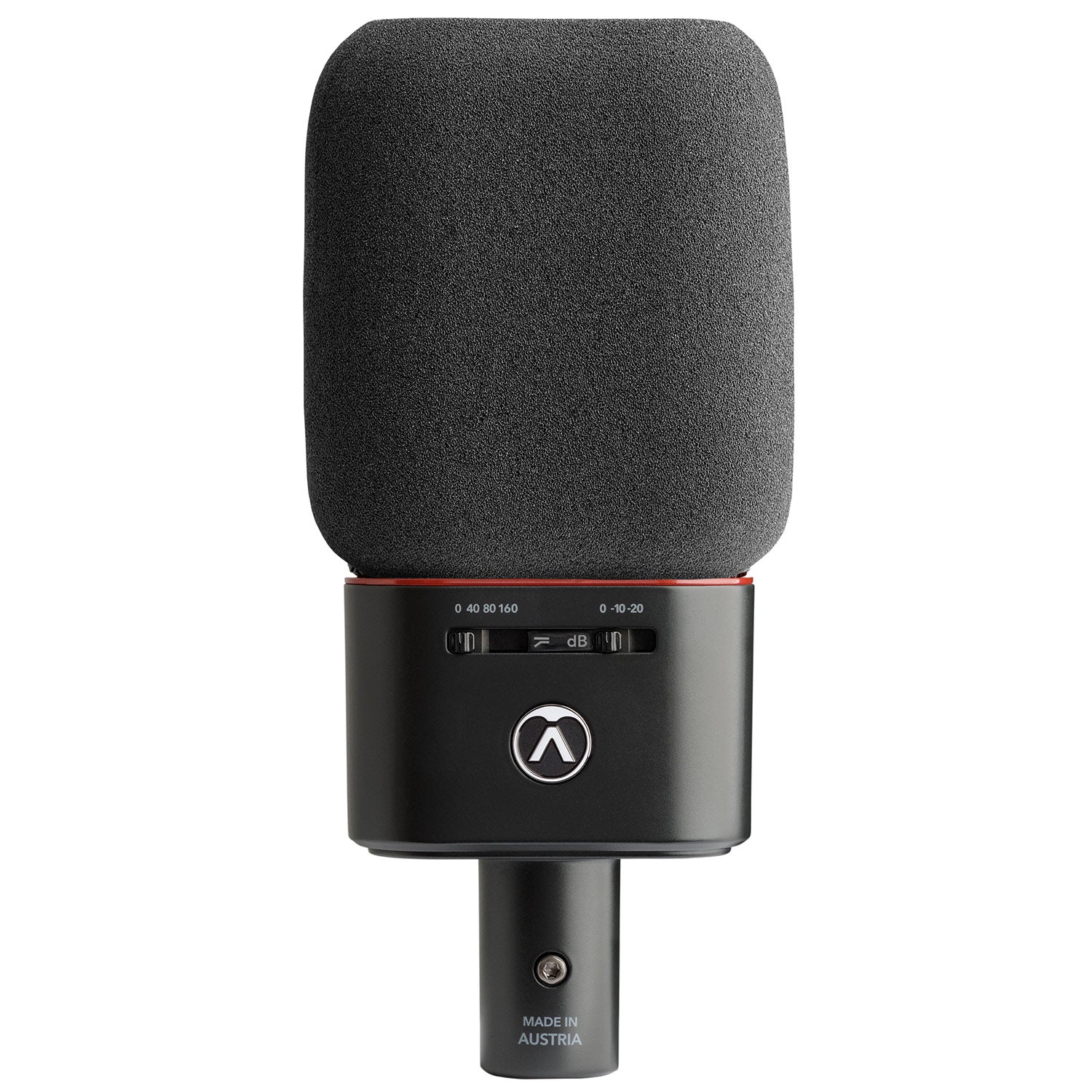

Austrian Audio OC18 Studio Set - Large Diaphragm Condenser Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Engineered and manufactured in Austria, its high sensitivity and low self-noise means it can handle everything from a whisper, to extreme SPLs without distortion, making it the perfect choice for studio, live and broadcast applications. The unique ceramic capsule design is so consistent, the OC18 can be match-paired with any other OC18 or paired with any OC818 set in cardioid mode.
Features:
-
The same handcrafted design as the OC818
Classic cardioid -
The same handmade CKR12 ceramic capsule
Only Single diaphragm -
Every Austrian Audio OC18 and OC818 is within 1dB of each other,
Making any two microphones a stereo pair
What's Included:
- 1 x OC18 Microphone

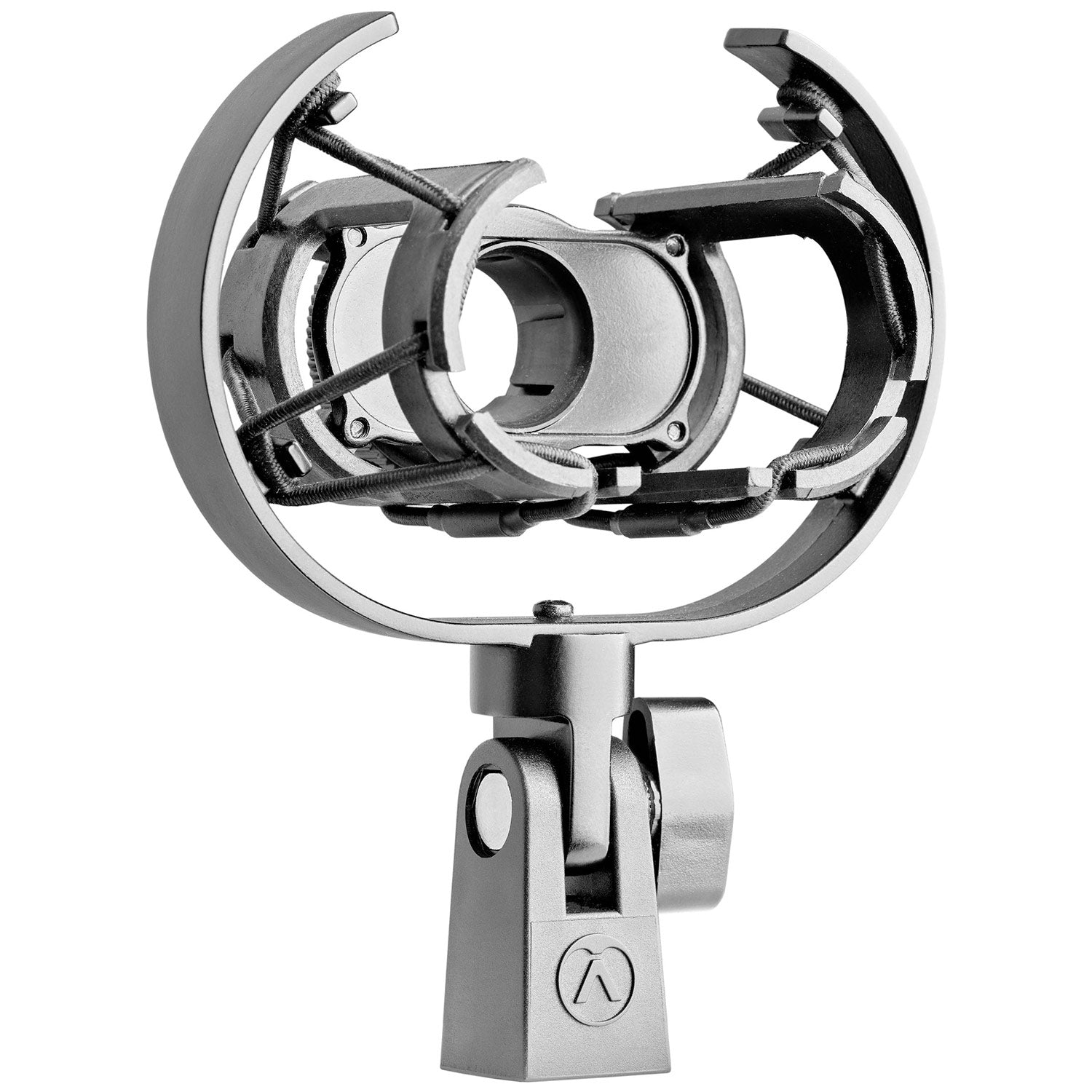

- 1 x OCS8 Microphone Shock Mount

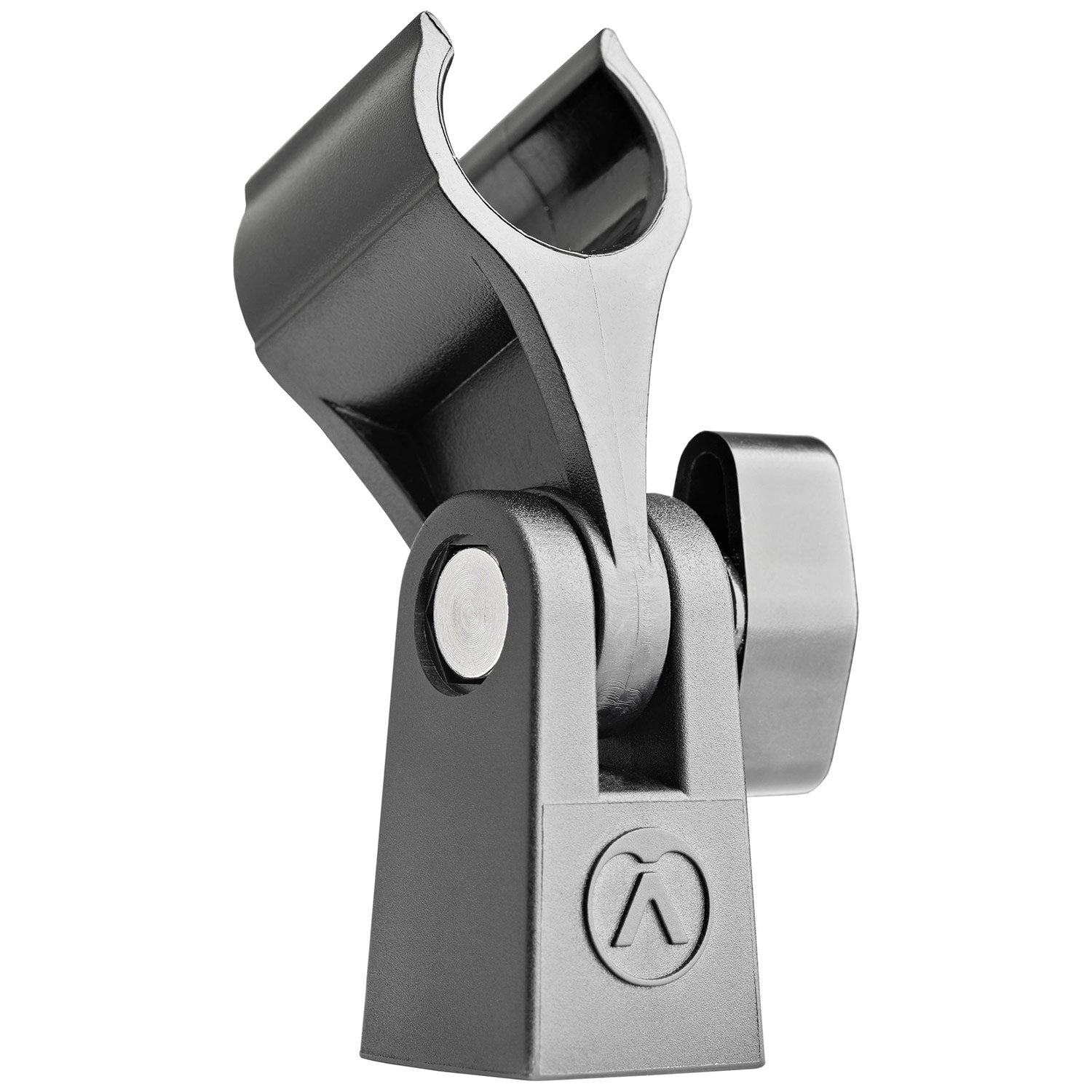

- 1 x OCH8 Microphone Clamp

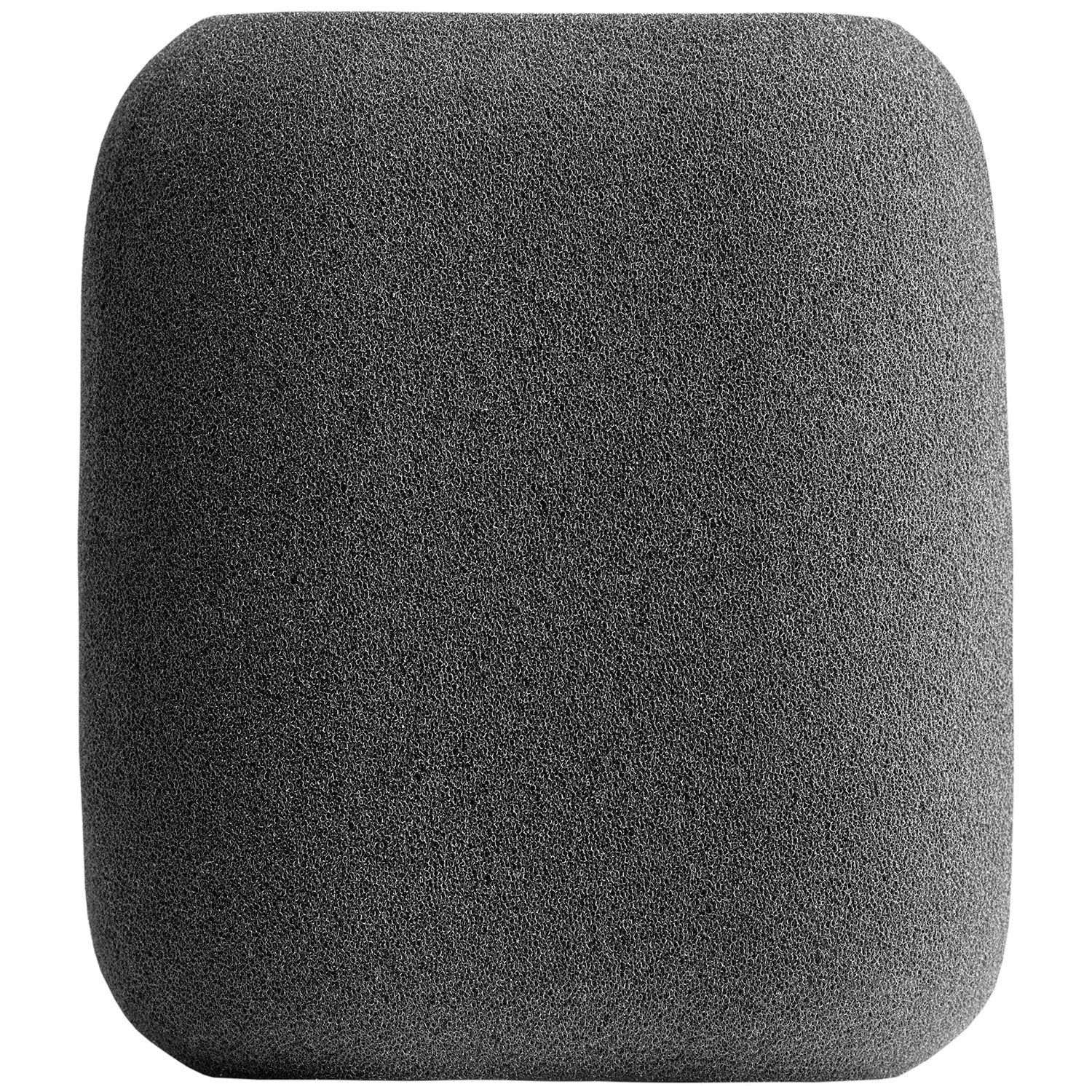

- 1 x OCW8 Windscreen
- 1 x Carrying Case
| Directional characteristics | Single |
| Impedance | 275 ? (symmetrical) |
| Polar pattern | Cardioid |
| Load impedance | > 1 k? |
| Frequency range | 20 Hz - 20 kHz |
| Supply voltage | 48 V (< 2.2mA) |
| Sensitivity (all directions) | 13mV/Pa |
| Main Connector | XLR 3 pin |
| Equivalent noise level | 9 dB SPL (A) |
| Max SPL | 148 dB SPL (158 dB SPL) |
| Dimensions | 157 x 63 x 35 mm |

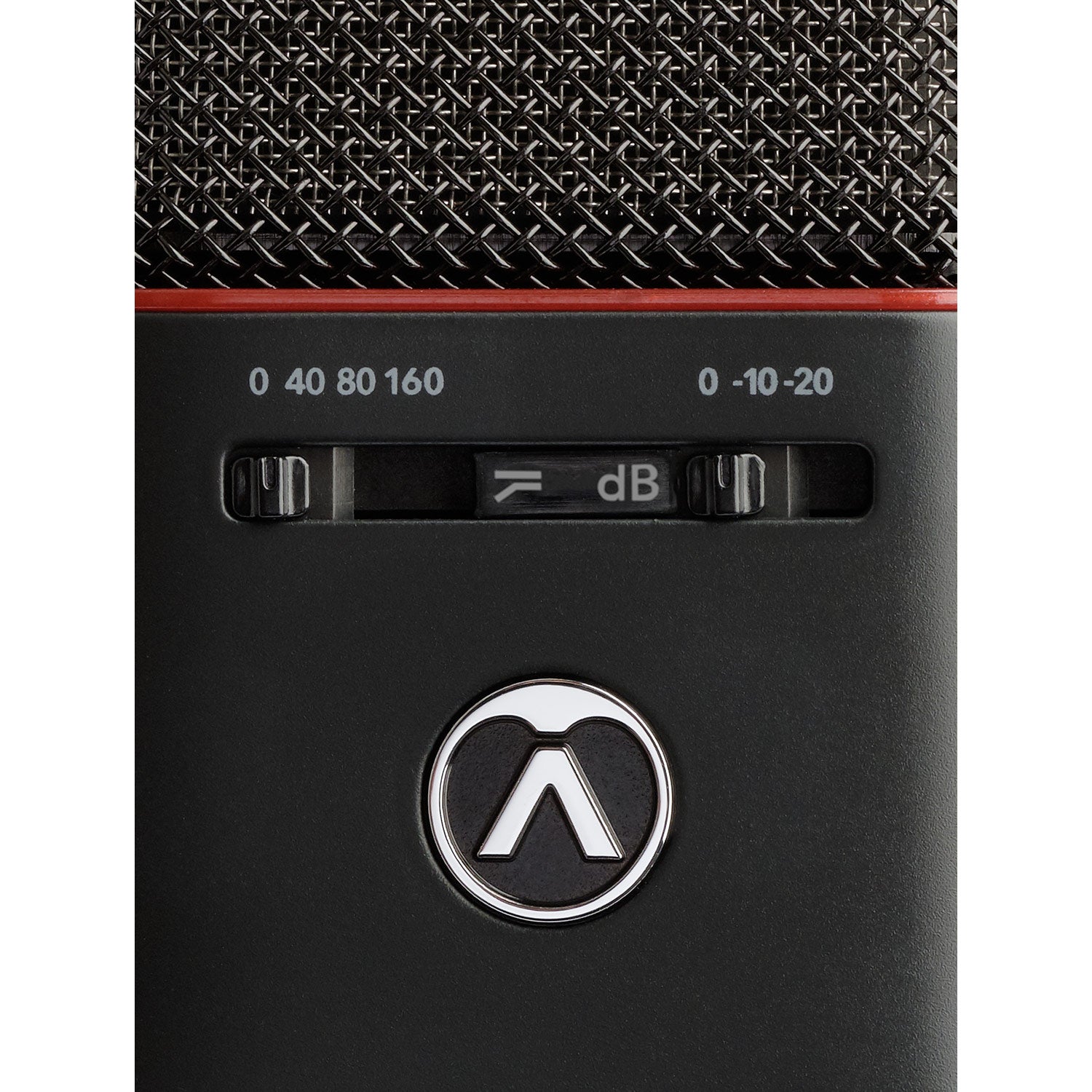

| Switchable pad | -10 dB, -20 dB |
| Weight | 335 g |
| Analog Low Cut filter | 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below) |
Engineered and manufactured in Austria, its high sensitivity and low self-noise means it can handle everything from a whisper, to extreme SPLs without distortion, making it the perfect choice for studio, live and broadcast applications. The unique ceramic capsule design is so consistent, the OC18 can be match-paired with any other OC18 or paired with any OC818 set in cardioid mode.
Features:
-
The same handcrafted design as the OC818
Classic cardioid -
The same handmade CKR12 ceramic capsule
Only Single diaphragm -
Every Austrian Audio OC18 and OC818 is within 1dB of each other,
Making any two microphones a stereo pair
What's Included:
- 1 x OC18 Microphone
- 1 x OCS8 Microphone Shock Mount
- 1 x OCH8 Microphone Clamp
- 1 x OCW8 Windscreen
- 1 x Carrying Case
| Directional characteristics | Single |
| Impedance | 275 ? (symmetrical) |
| Polar pattern | Cardioid |
| Load impedance | > 1 k? |
| Frequency range | 20 Hz - 20 kHz |
| Supply voltage | 48 V (< 2.2mA) |
| Sensitivity (all directions) | 13mV/Pa |
| Main Connector | XLR 3 pin |
| Equivalent noise level | 9 dB SPL (A) |
| Max SPL | 148 dB SPL (158 dB SPL) |
| Dimensions | 157 x 63 x 35 mm |
| Switchable pad | -10 dB, -20 dB |
| Weight | 335 g |
| Analog Low Cut filter | 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below) |
