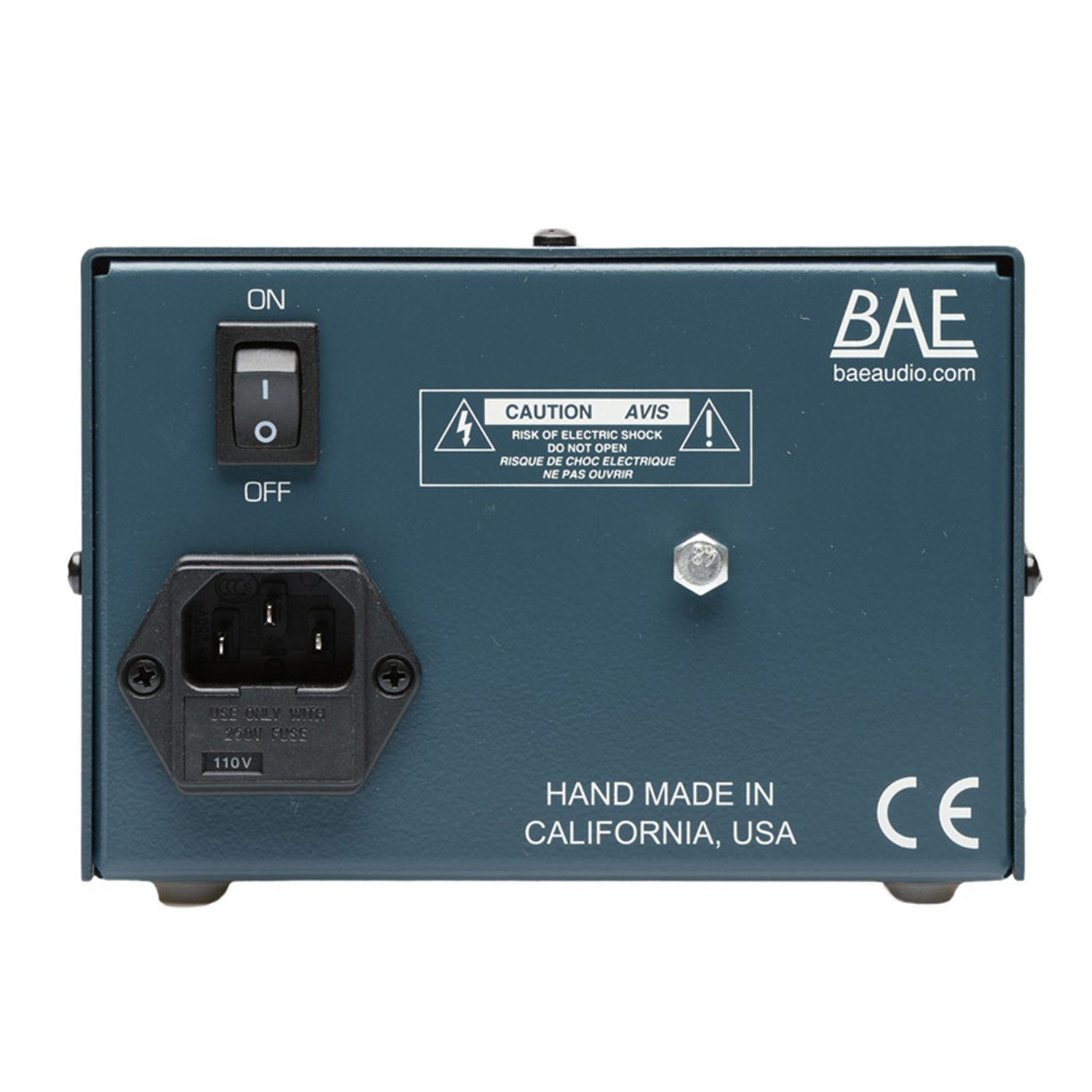

BAE 1028 Rackmount Mic Preamp and Equalizer (with PSU)

  • Dale #:

    BAE-1028WPS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The 1028 is completely hand-wired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and hi sections. Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow y... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The 1028 is completely hand-wired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and hi sections. Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways. The 1028 includes the same low pass filter as the 1084, giving it 28 frequencies.

Features

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • Low Pass Filter: 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180º

More +

Product Specs

Frequency Response 10Hz to -3dB at 55kHz
3 Band Equaliser HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz
High Pass Filter 45Hz, 70Hz, 160Hz & 360Hz
Low Pass Filter 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz
Mic Input Impedance 1200/300 ohms
Line Input Impedance 10k ohms
DI Input Impedance 150k ohms
Output Impedance 65 ohms
Common Mode Rejection Ratio 100dB min @ 60Hz
Maximum Output Level +27.4 dBu @ 600
Power Requirements 115/230 VAC, 28W
Gain dB 0 to 80 dB
Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth

More +
