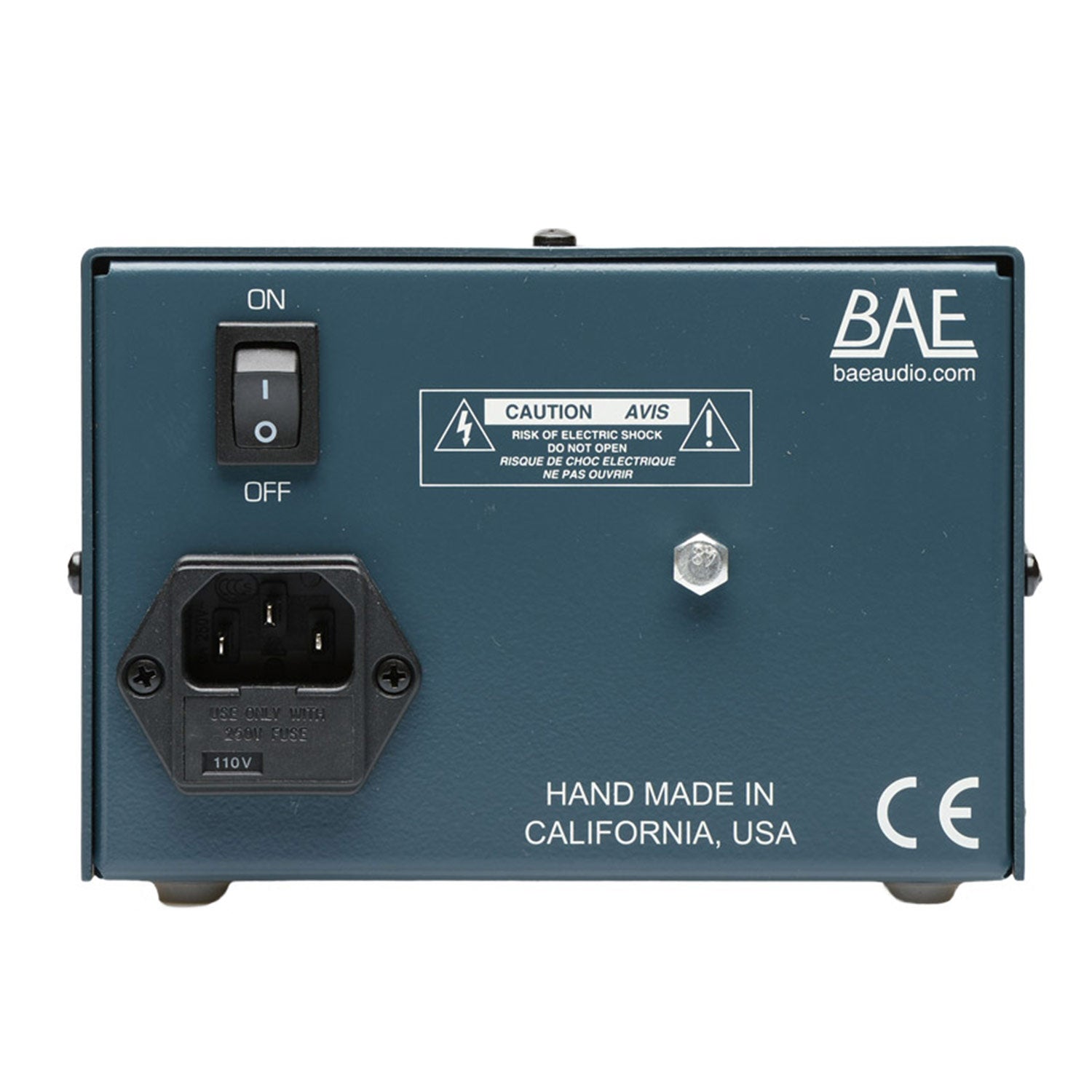

BAE 1066D Rackmount Mic Preamp and Equalizer Module (Includes PSU)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066D adds a few different frequencies to your pallet. This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.
Features:
- High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
- Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
- Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
- High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
- EQ Button: Switches the equaliser on or off
- Phase Button: 180º
| Frequency Response | 10Hz to -3dB at 55kHz |
| 3 Band Equaliser | HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz / 220Hz MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz |
| High Pass Filter | 45Hz, 70Hz, 160Hz / 360Hz |
| Mic Input Impedance | 1200/300 ohms |
| Line Input Impedance | 10k ohms |
| DI Input Impedance | 150k ohms |
| Output Impedance | 65 ohms |
| Common Mode Rejection Ratio | 100dB min @ 60Hz |
| Maximum Output Level | +27.4 dBu @ 600 |
| Power Requirements | 115/230 VAC, 28W |
| Gain dB | 0 to 80 dB |
| Equivalent Input Noise | -110 dBu; Unweighted 300kHz Bandwidth |
The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066D adds a few different frequencies to your pallet. This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.
Features:
- High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
- Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
- Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
- High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
- EQ Button: Switches the equaliser on or off
- Phase Button: 180º
| Frequency Response | 10Hz to -3dB at 55kHz |
| 3 Band Equaliser | HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz / 220Hz MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz |
| High Pass Filter | 45Hz, 70Hz, 160Hz / 360Hz |
| Mic Input Impedance | 1200/300 ohms |
| Line Input Impedance | 10k ohms |
| DI Input Impedance | 150k ohms |
| Output Impedance | 65 ohms |
| Common Mode Rejection Ratio | 100dB min @ 60Hz |
| Maximum Output Level | +27.4 dBu @ 600 |
| Power Requirements | 115/230 VAC, 28W |
| Gain dB | 0 to 80 dB |
| Equivalent Input Noise | -110 dBu; Unweighted 300kHz Bandwidth |
