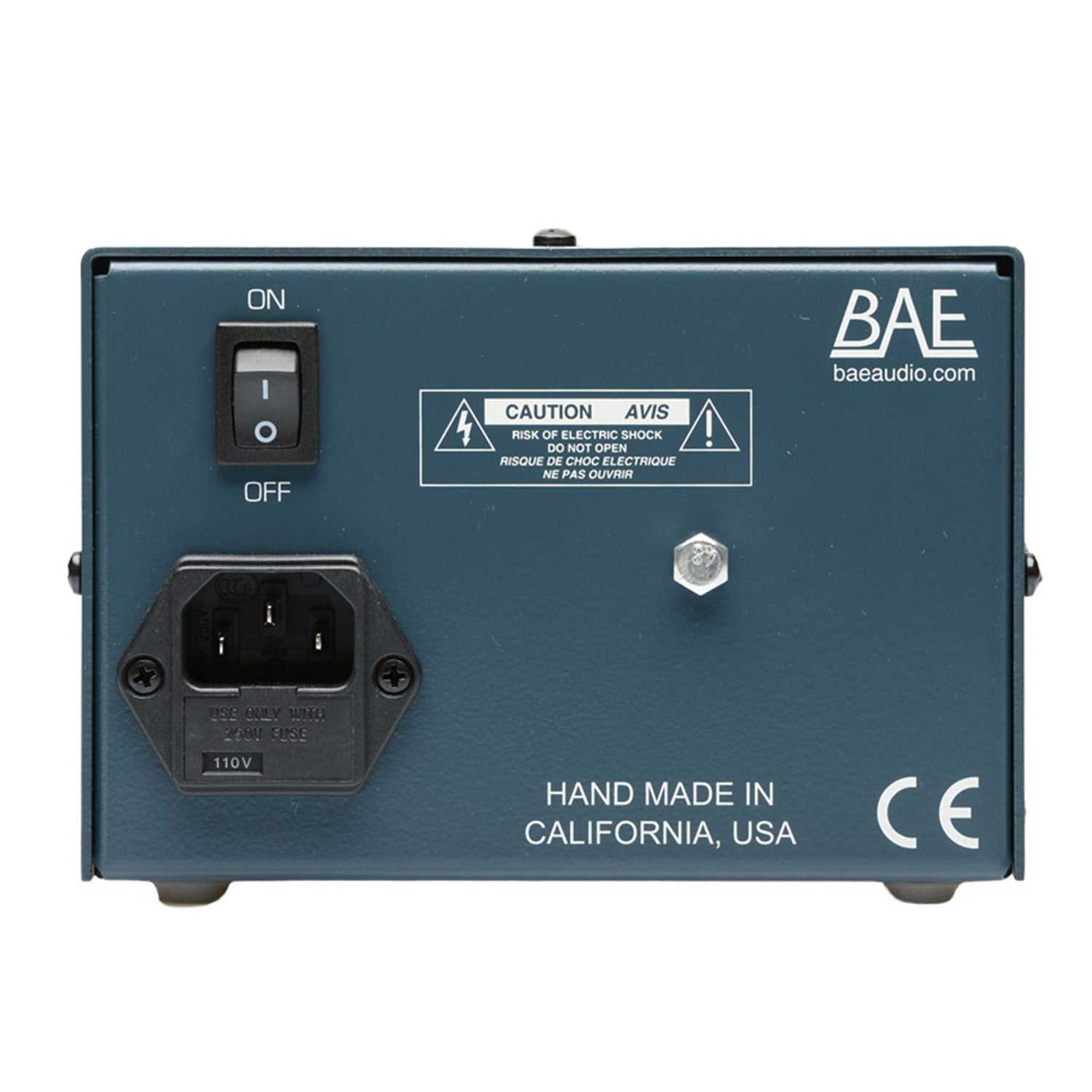

BAE 1073MP Rackmount Mic Preamp (Includes PSU)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids. A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones. There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments. As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth. All Class A, transformer-coupled design in a 19 1U chassis.
Features:
- Line level XLR inputs for extra versatility as a line preamp.
- High impedance DI for guitar and synth.
- The same Class A components as the 1073 and 1084.
- Illuminated phase reverse and phantom power pushbuttons.
- Input impedance selector switch between 1200 and 300 ohms.
- Same modular design and hand-wiring BAE is known for.
- Regulated linear power supply will run up to four channels.
| Frequency Response | 10Hz to -3dB at 55kHz |
| Mic Input Impedance | 1200/300 ohms |
| Line Input Impedance | 10k ohms |
| DI Input Impedance | 150k ohms |
| Output Impedance | 65 ohms |
| Common Mode Rejection Ratio | 100dB min @ 60Hz |
| Maximum Output Level | +27.4 dBu @ 600 |
| Power Requirements | 115/230 VAC, 30W |
| Gain dB | 0 to 71 dB |
| Equivalent Input Noise | -110 dBu; Unweighted 300kHz Bandwidth |
| Weight (Single/Dual) | 8 LBS / 3.63 KG 10 LBS / 4.54 KG |
| Dimensions (Inches) | 19W x 1.75L x 9D |
This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids. A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones. There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments. As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth. All Class A, transformer-coupled design in a 19 1U chassis.
Features:
- Line level XLR inputs for extra versatility as a line preamp.
- High impedance DI for guitar and synth.
- The same Class A components as the 1073 and 1084.
- Illuminated phase reverse and phantom power pushbuttons.
- Input impedance selector switch between 1200 and 300 ohms.
- Same modular design and hand-wiring BAE is known for.
- Regulated linear power supply will run up to four channels.
| Frequency Response | 10Hz to -3dB at 55kHz |
| Mic Input Impedance | 1200/300 ohms |
| Line Input Impedance | 10k ohms |
| DI Input Impedance | 150k ohms |
| Output Impedance | 65 ohms |
| Common Mode Rejection Ratio | 100dB min @ 60Hz |
| Maximum Output Level | +27.4 dBu @ 600 |
| Power Requirements | 115/230 VAC, 30W |
| Gain dB | 0 to 71 dB |
| Equivalent Input Noise | -110 dBu; Unweighted 300kHz Bandwidth |
| Weight (Single/Dual) | 8 LBS / 3.63 KG 10 LBS / 4.54 KG |
| Dimensions (Inches) | 19W x 1.75L x 9D |
