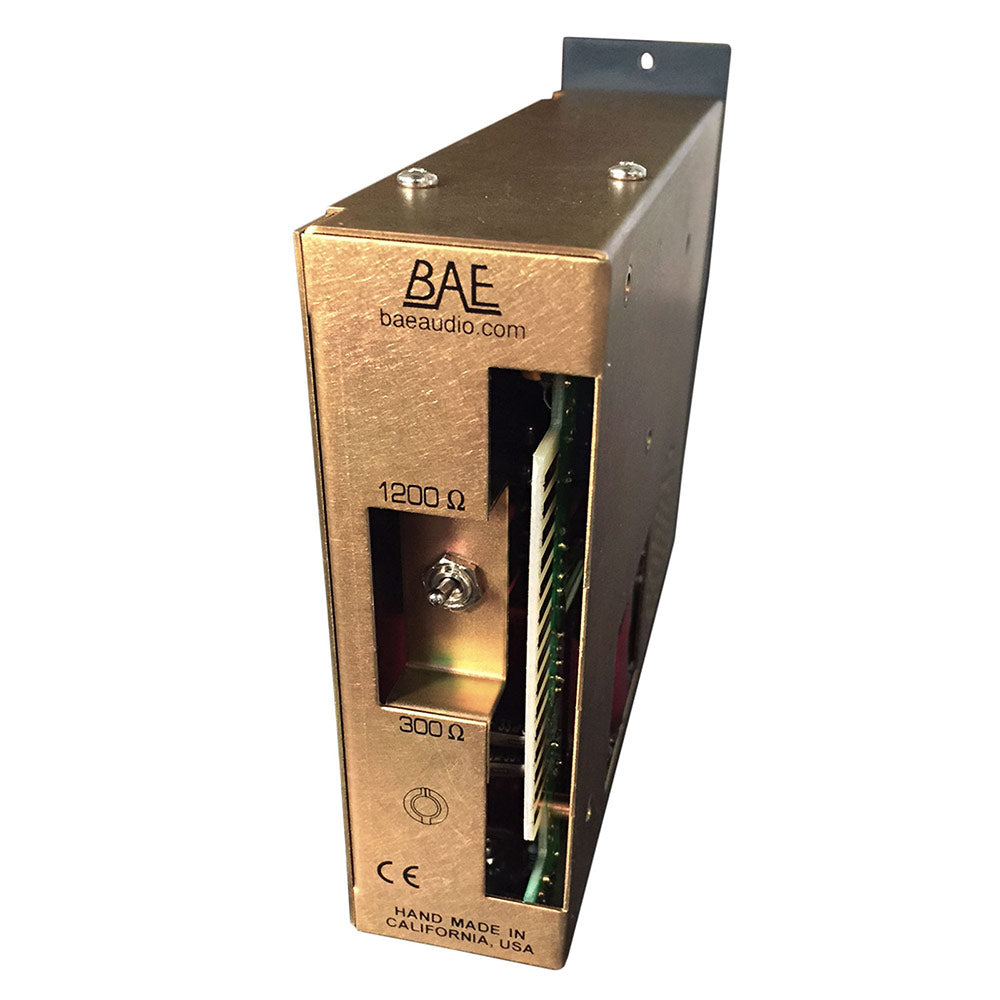

BAE 1073MPL Neve-Style 500 Series Microphone Preamp Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This is the 500 Series version of the 1073MP (a mic pre-amp version of the 1073 equaliser) having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids. Two selectable impedances makes the 1073MPL work well with a variety of microphones. As a coloured and versatile mic-pre, the 1073MPL maintains its sonic signature across a wide bandwidth.
Features:
- All Class A, transformer-coupled design in a 500 series module.
- Original Marconi knobs.
- Input impedance selector switch between 1200 and 300 ohms.
- Line level capability for extra versatility as a line preamp.
- High impedance DI for guitar and synth.
- Same Carnhill St Ives transformers as the 1073 and 1084.
- Same modular design and hand-wiring BAE is known for.
| Frequency Response | 10Hz to -3dB at 55kHz |
| Line Input Impedance | 10k ohms |
| Output Impedance | 65 ohms |
| Common Mode Rejection Ratio | 100dB min @ 60Hz |
| Maximum Output Level | +27.4 dBu @ 600 |
| Gain dB | 0 to 71 dB |
This is the 500 Series version of the 1073MP (a mic pre-amp version of the 1073 equaliser) having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids. Two selectable impedances makes the 1073MPL work well with a variety of microphones. As a coloured and versatile mic-pre, the 1073MPL maintains its sonic signature across a wide bandwidth.
Features:
- All Class A, transformer-coupled design in a 500 series module.
- Original Marconi knobs.
- Input impedance selector switch between 1200 and 300 ohms.
- Line level capability for extra versatility as a line preamp.
- High impedance DI for guitar and synth.
- Same Carnhill St Ives transformers as the 1073 and 1084.
- Same modular design and hand-wiring BAE is known for.
| Frequency Response | 10Hz to -3dB at 55kHz |
| Line Input Impedance | 10k ohms |
| Output Impedance | 65 ohms |
| Common Mode Rejection Ratio | 100dB min @ 60Hz |
| Maximum Output Level | +27.4 dBu @ 600 |
| Gain dB | 0 to 71 dB |
