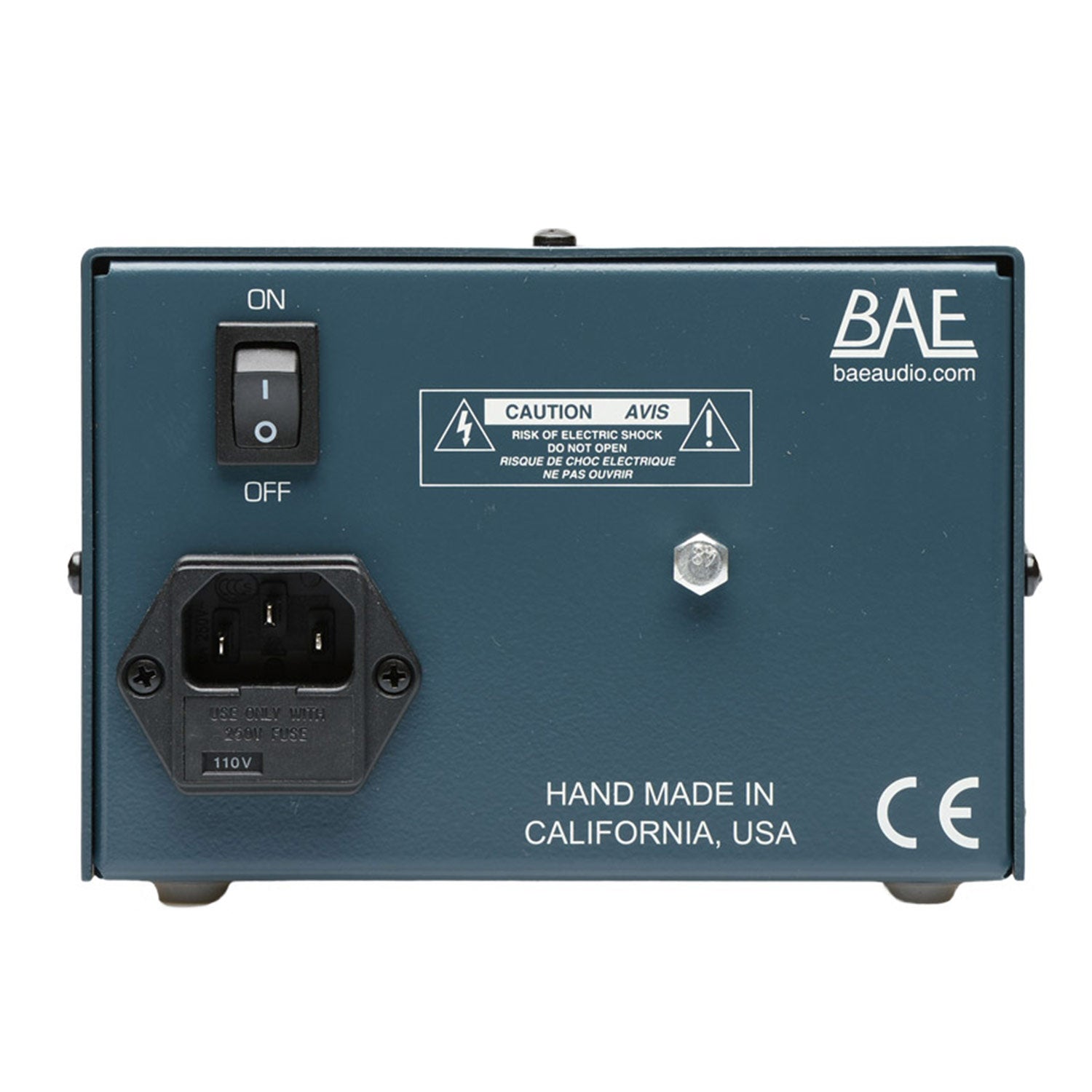

BAE 1084 Rackmount Mic Preamp and Equalizer (Includes PSU)

  • Dale #:

    BAE-1084WPS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire. The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire. The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

Features:

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180º

More +

Product Specs

Frequency Response 10Hz to -3dB at 55kHz
3 Band Equaliser HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
High Pass Filter 50Hz, 80Hz, 160Hz & 300Hz
Low Pass Filter 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz
Mic Input Impedance 1200/300 ohms
Line Input Impedance 10k ohms
DI Input Impedance 150k ohms
Output Impedance 65 ohms
Common Mode Rejection Ratio 100dB min @ 60Hz
Maximum Output Level +27.4 dBu @ 600
Power Requirements 115/230 VAC, 28W
Gain dB 0 to 80 dB
Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth
