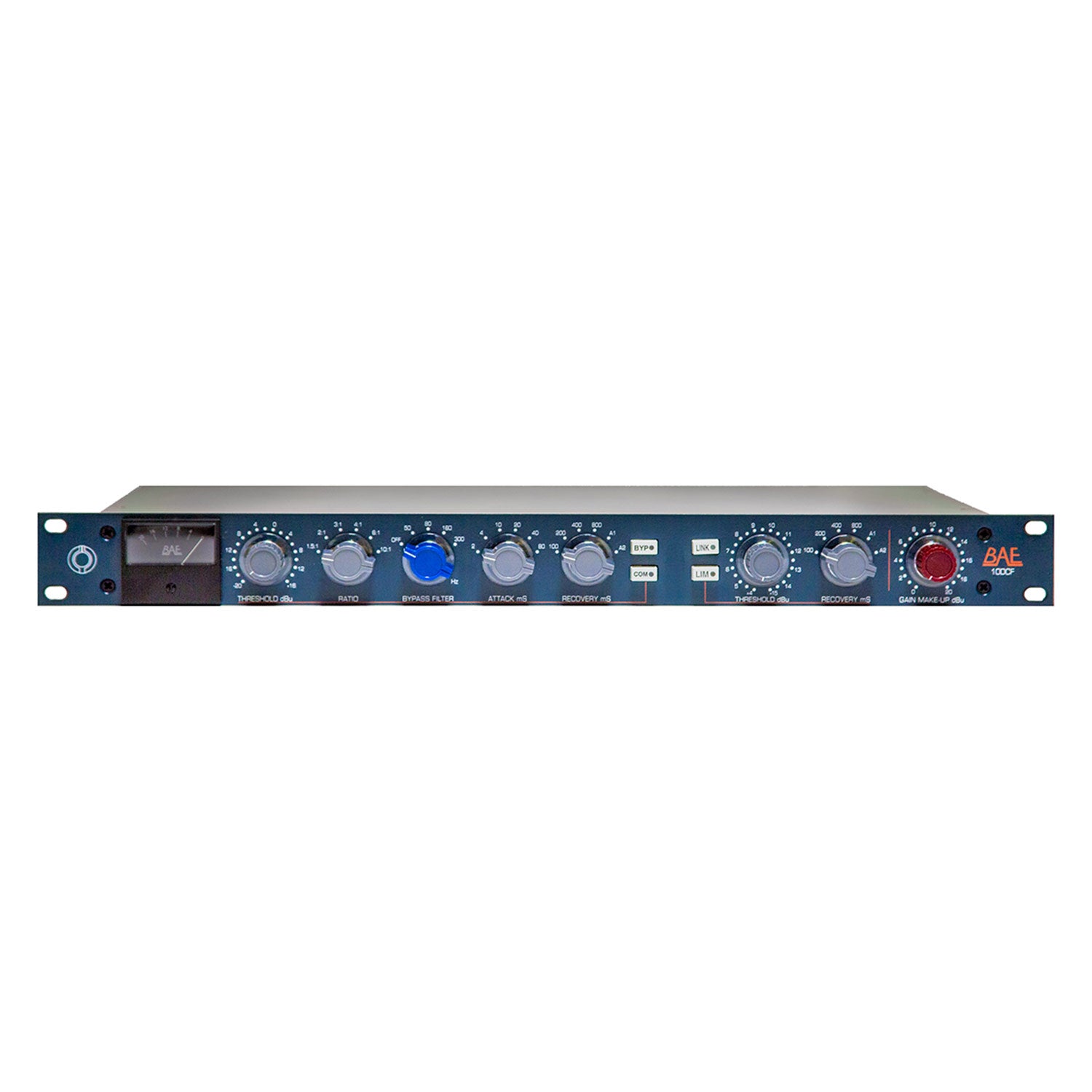

BAE 10DCF Compressor/Limiter with Filter (Includes PSU)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 10DCF, which builds on the capabilities of the 10DC compressor/limiter, features Carnhill and Jensen transformers, all discrete circuitry while adding a brand new, inductor-based bypass filter. The 10DCF bypass filter delivers increased flexibility while recording low frequency ranged instruments, and engages at 50, 80, 160 and 300 Hz perfect for users who want to compress a broad frequency range while leaving lower frequencies uncompressed. The 10DCF units are also stereo linkable, making them the perfect complement for the output stage of a mixer.
The 10DCF is an incredibly versatile tool for both tracking and mixing. It retains the same top grade, Class A circuitry that is present in BAE gear, while providing bypass filter options that make it more customizable, especially useful for drum and bass applications.
Features:
- Discrete Class A transformer-coupled circuit throughout.
- Fully independent Compressor and Limiter for separate audio dynamics control.
- Intuitive layout with illuminated meter showing gain reduction.
- High quality stepped Elma® switches for dialing accuracy and repeatability.
- True bypass even when the unit is off.
- Same remote power supply as used on other 24VDC BAE units. One power supply can run two units.
| Frequency Response | 5Hz to 45kHz -1dB Measured at +8dBu |
| Noise | -80dBu with 200ohms source |
| Maximum Output Level | +33dBu into 10k +27dBU into 600 |
| Distortion | Varies from 0.03% to greater than 1% |
| Compressor | Threshold: -20dBu to +16dBu with 2dB steps Ratio: 1.5:1 to 10:1 with 6 position switch Attack: 2mS to 80mS with 6 position switch Recovery: 100, 200, 400, 800mS Auto 1 100mS isolated peaks, 2 Sec prolonged levels Auto 2 50mS isolated peaks, 5 Sec prolonged levels |
| Limiter | Threshold +4dBu to +15dBu with 0.5 dB steps Attack: Slow 4mS, Fast 2mS Recovery: 100, 200, 400, 800mS Auto 1 100mS isolated peaks, 2 Sec prolonged levels Auto 2 50mS isolated peaks, 5 Sec prolonged levels |
| Bypass Filter | 50, 80,160 and 300 Hz |
| Gain Make-up | 0 to +20dBu in 1 dB steps |
| Output Impedance | 100 Balanced earth free |
| Power Consumption | 200mA at 24VDC |
| Dimensions in Inches | 19W x 1.75L x 9D |
