BAE Dual 1073MPF Rackmount 2 Channel Mic Preamp with HPF (With PSU)

  • Dale #:

    BAE-DUAL73MPFWPS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids. A transformer coupled input, with t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids. A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones. There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments. As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

Features:

  • All Class A, transformer-coupled design in a 19 1U chassis.
  • Inductor based high pass filter
  • Line level XLR inputs for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • The same Class A components as the 1073 and 1084.
  • Illuminated phase reverse and phantom power pushbuttons.
  • Input impedance selector switch between 1200 and 300 ohms.
  • Same modular design and hand-wiring BAE is known for.

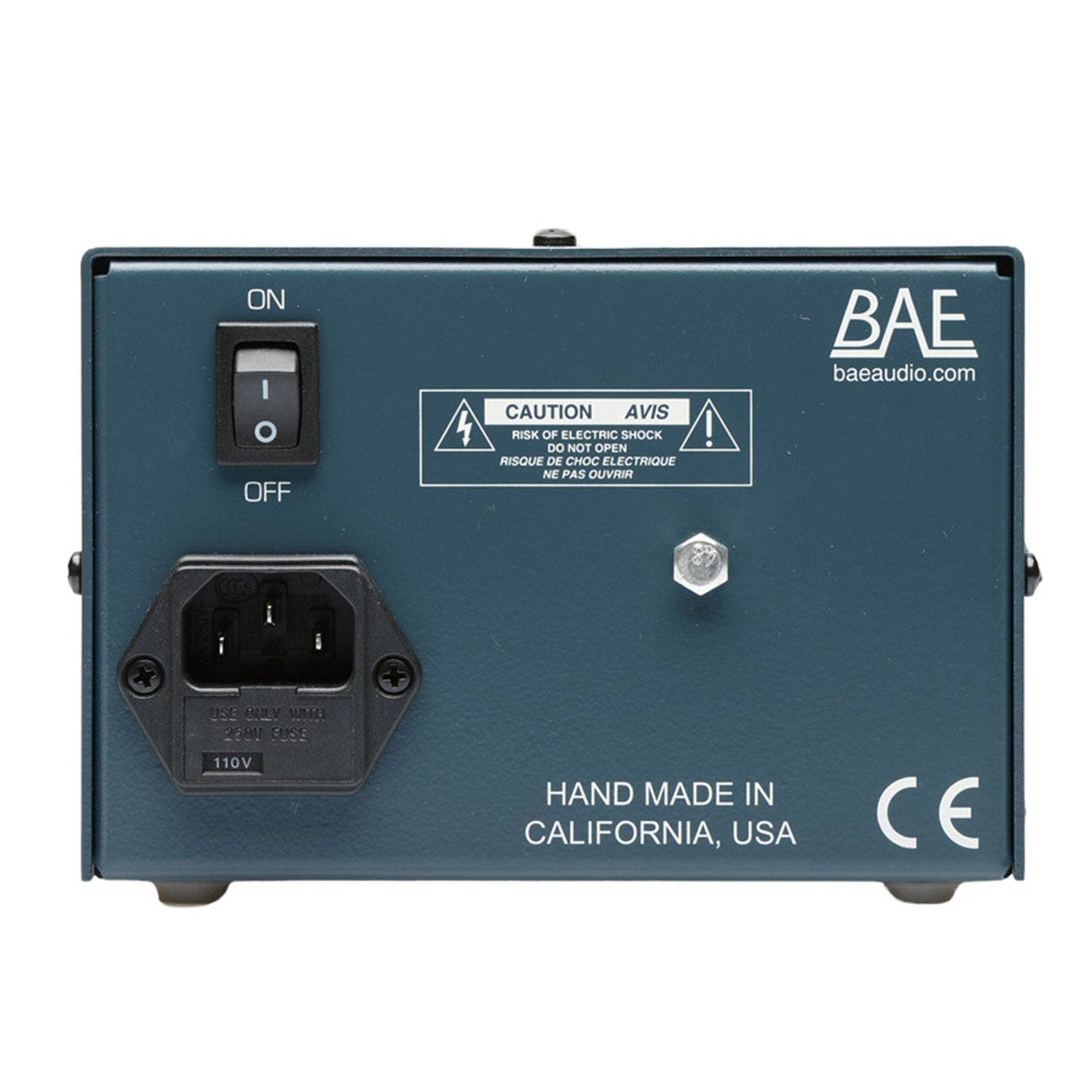

  • Regulated linear power supply will run up to four channels.

More +

Product Specs

Frequency Response 10Hz to -3dB at 55kHz
High Pass Filter 50Hz, 80Hz, 160Hz, 300Hz
Mic Input Impedance 1200/300 ohms
Line Input Impedance 10k ohms
DI Input Impedance 150k ohms
Output Impedance 65 ohms
Common Mode Rejection Ratio 100dB min @ 60Hz
Maximum Output Level +27.4 dBu @ 600
Power Requirements 115/230 VAC, 30W
Gain dB 0 to 71 dB
Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth
Weight (Single/Dual) 8 LBS / 3.63 KG
10 LBS / 4.54 KG
Dimensions (Inches) 19W x 1.75L x 9D
