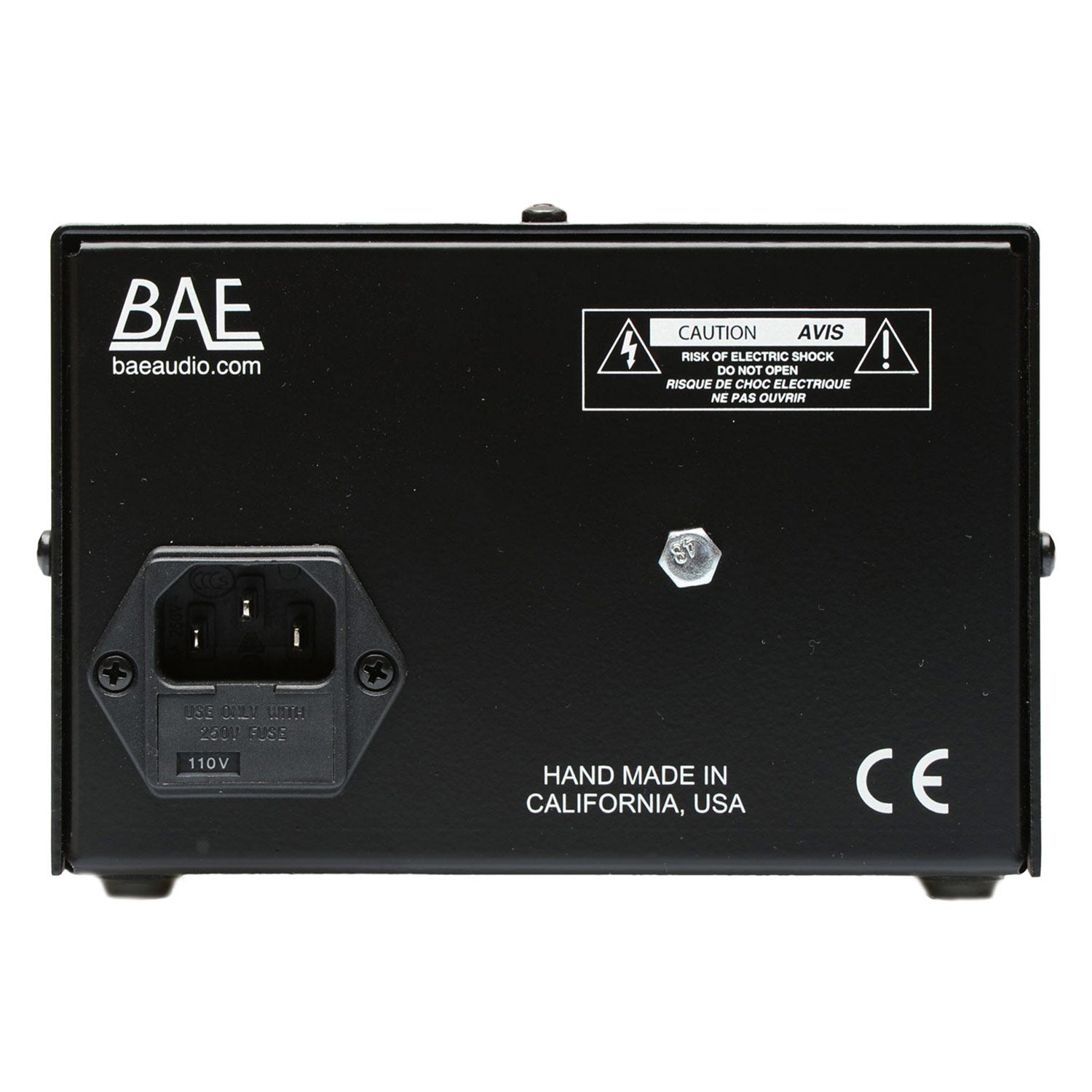

BAE Single 312A Rackmount Mic Preamp (Includes PSU)

  • Dale #:

    BAE-SIN312WPS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The 312A is available as a 500 series module or a single or dual channel 19 rackmount. Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers. Made with the highest quality parts including Jens... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The 312A is available as a 500 series module or a single or dual channel 19 rackmount. Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers. Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.

  • Made using Avedis 1122 opamps
  • Supplied with Jensen input and output transformers
  • Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality
  • Switches have gold contacts for long life
  • XLR connectors on the back for mic input and output and phone jack in front for direct input
  • High impedance direct input for guitar and synthesizer
  • Separate front panel switches for phantom power

More +

Product Specs

Frequency Response 5Hz to 75kHz (-3dB)
Mic Input Impedance 1400 ohms
Line Input Impedance 10k ohms
DI Input Impedance 250k ohms
Output Impedance 75 ohms
Common Mode Rejection Ratio 110dB min @ 60Hz
Maximum Output Level +27.1 dBu @ 600
Power Requirements 115/230 VAC, 27W (Rackmount), 40mA per Rail (Module)
Gain dB 10 to 66 dB
Equivalent Input Noise -120 dBu; Unweighted 300kHz Bandwidth
