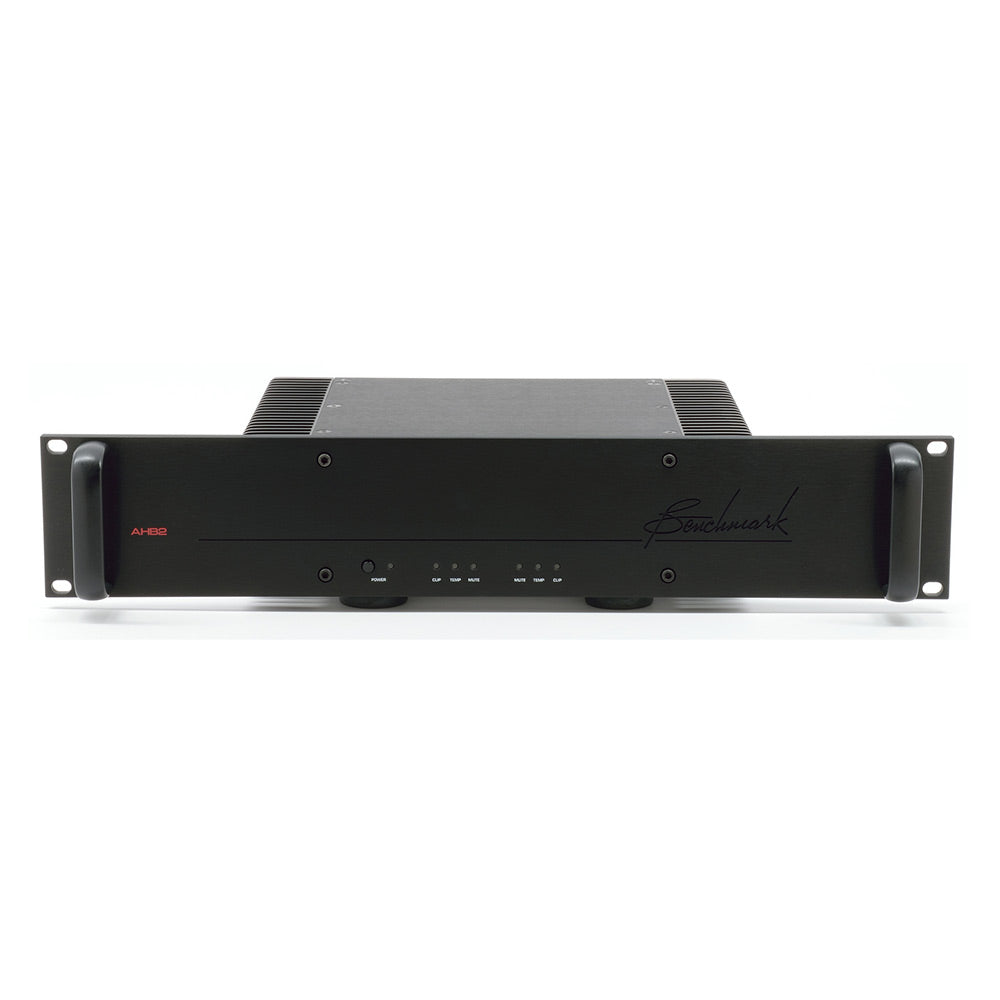

Benchmark AHB2 High Resolution Power Amplifier (Black Rack Mount)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:BENC-500-18000-400

Availability: Special Order - Contact Us

This item is on back-order and is expected to ship mid-October 2018.
Free Shipping (Continental US)
  • High-Resolution audio is only as good as the weakest link in the playback system. Benchmark's AHB2 power amplifier delivers musical details without introducing the masking effects of amplifier noise and distortion. The dynamic range of the AHB2 approaches 130 dB, making it 10 to 30 dB quieter than the typical reference-quality power amplifier. You will discover previously overlooked nuances, dynamics, and detail in your favorite recordings and experience the full potential of the latest high-resolution 24-bit PCM and 1-bit DSD audio formats. The AHB2 delivers true High-Resolution Audio.

    Features:

    • True high-resolution performance
    • Extended Frequency Response
    • High Damping Factor
    • Efficient operation
    • Innovative new power supply
    • Passive cooling lets you install it anywhere
    • Low noise input amplifiers
    • Low gain for system noise
    • Neutrik Speakon outputs
    • Feed Forward error correction
    • Ideal companion for Benchmark D/A converters
  • Frequency Response
    • Better than 0.1 Hz to 200 kHz, +0/-3 dB
    • -0.01 dB at 20 Hz, -0.17 dB at 20 kHz, 8-Ohm Load
    • -0.23 dB at 20 Hz, -0.32 dB at 20 kHz, 4-Ohm Load
    Maximum Audio Output Current
    • 29 A peak, per channel, both channels driven
    Input Sensitivity
    • Low-Gain = 22 dBu (9.8 Vrms), Gain = 9.2 dB
    • Mid-Gain = 14.2 dBu (4 Vrms), Gain = 17.0 dB
    • High-Gain = 8.2 dBu (2 Vrms), Gain = 23 dB
    • Use Mid-Gain or High-Gain settings for unbalanced inputs
    • Unbalanced inputs require RCA to XLRM adapter cables
    Weight
    • 12.5 lbs., 16 lbs. shipping - Non-rack-mount version
    • 13.5 lbs., 17 lbs. shipping - Rack-mount version
