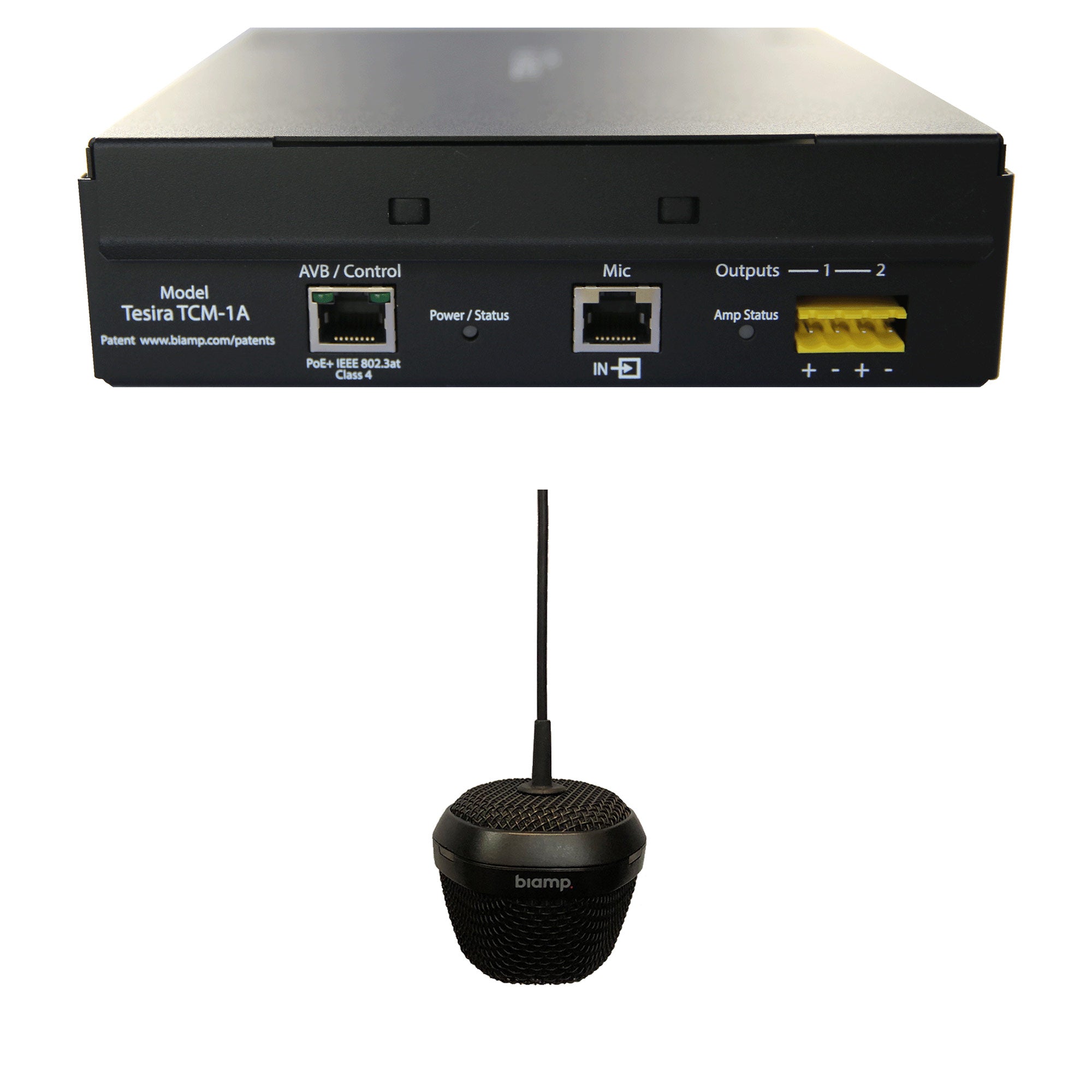

Biamp Parle TCM-1A - BeamTracking Ceiling Microphone with PoE Amplifier (Black)


  • Dale #:

    BIAM-PARLETCM1ABLACK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional R... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.

Features:

  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Three 120° zones for 360° coverage
  • Pendant microphone available in either white or black
  • Plenum box includes a PoE+ amplifier:
    • Two channels; 4W continuous per channel
    • Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
    • Software-selectable power vs. channel count
    • Includes internal limiter function
  • Optional tile bridge mounting accessory available
  • LED mute status indicator
  • User-adjustable mic height
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems' five-year warranty

More +

Product Specs

PENDANT MICROPHONE
Microphone Technology 8-Element Digital Array
Frequency Response (150 Hz - 16 kHz) ± 3dB
Polar Pattern Beamformed
Sensitivity (94dB SPL, 1kHz) > 70dB
Maximum SPL (at 0.5% THD) 106dB
Dynamic Range (THD+N < 10%) 92dB, A-Weighted
Indicators Mute Indicator (Green/Red LED)
Digital Interface Custom/Proprietary
Connector Custom 2-pin (cable length 10 feet [3 meters])
Overall Dimensions Height: 2 inches (51 mm)
Width: 2.5 inches (63 mm)
Depth: 2.5 inches (63 mm)
Weight 0.4 lbs (0.2 kg)
PLENUM BOX
Connectors Two RJ-45: one between TCM-1A plenum box and switch, the other between TCM-1A plenum box and additional TCM-1EX plenum box
2-pin 3.5 mm Phoenix connector to TCM-1A microphone
Power PoE+ (IEEE 802.3at Class 4, 30W)
Indicators Power Indicator (Green/Yellow/Red LED)
Amp Status Indicator (Green/Yellow/Red LED)
Digital Interface Custom/Proprietary
Max Distance Between Devices 330 feet (100 meters) from switch to TCM-1A plenum box
33 feet (10 meters) for daisy-chained connections between TCM plenum boxes
Overall Dimensions Height: 2 inches (51 mm)
Width: 7 inches (178 mm)
Depth: 7.125 inches (181 mm)
Weight 2.4 lbs (1.1 kg)
Ambient Operating Temperature Range 32 - 104° F (0 - 40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-10,000 ft (0-3000m) MSL
Compliance FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
AMPLIFIER
Number of Channels 4
Connectors 4-pin 5.08 mm Phoenix connectors
Amplifier Topology Class D
Burst Power Output (per ANSI/CTA-2006-B @ 1kHz) 4Ω (per channel): 40W
8Ω (per channel): 30W
Continuous Power Output Single Channel Driven, (4Ω, 8Ω): 8W
Dual Channel Driven (4Ω, 8Ω): 4W
THD+N (20Hz-20kHz, at continuous power) 0.3%
Frequency Response (20Hz-20kHz) ± 1dB
Dynamic Range (20Hz-20kHz BW) 85dB
Minimum Operational Load
Intermodulation distortion (SMPTE) 0.3%
Cross Talk (channel to channel @ 1kHz) -90dB
