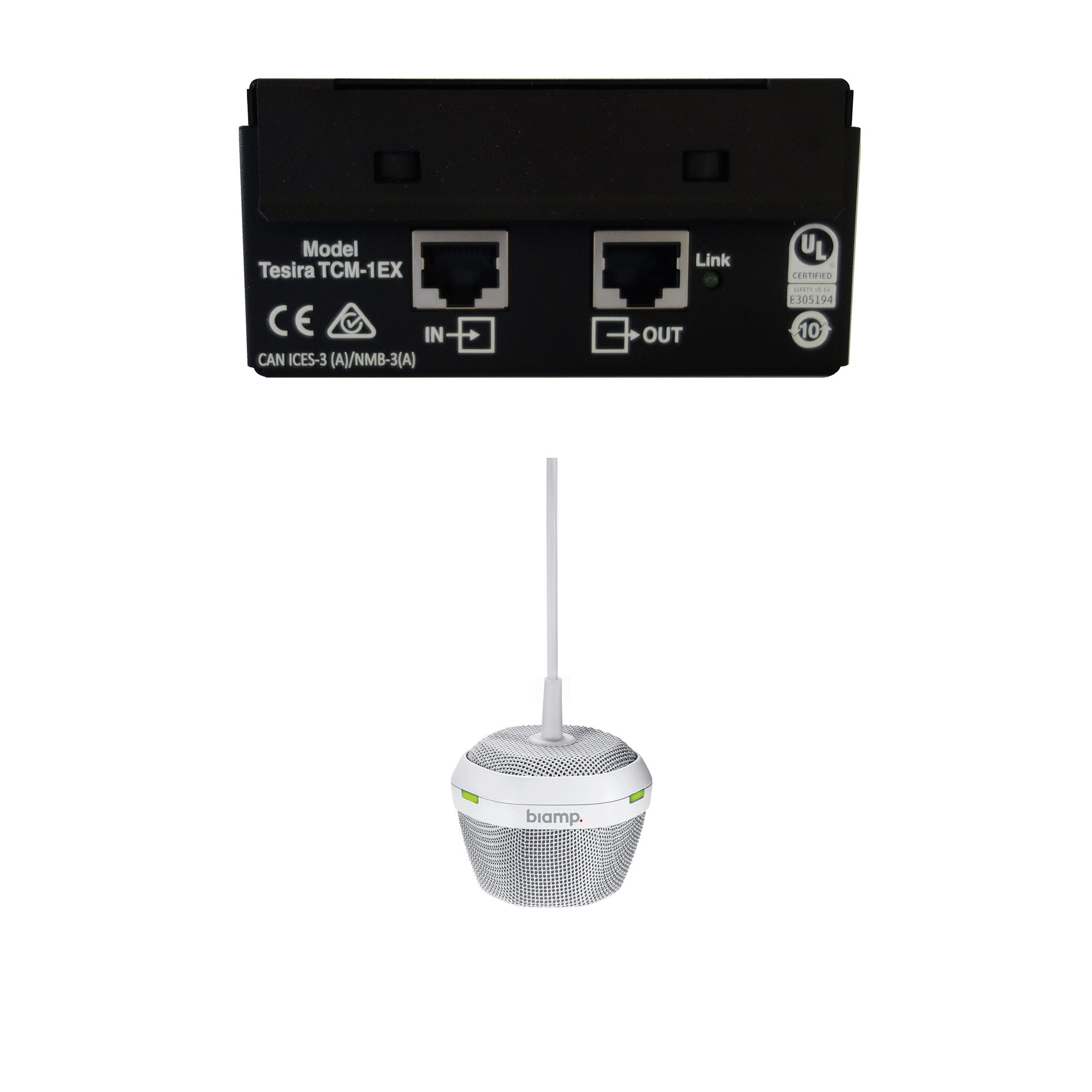

Biamp Parle TCM-1EX - Expansion BeamTracking Pendant Microphone with Plenum Box (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
Features:
- Must be used with a Parlé TCM-1 or TCM-1A microphone
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| PENDANT MICROPHONE | |
| Microphone Technology | 8-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Beamformed |
| Sensitivity (94dB SPL, 1kHz) | > 70dB |
| Maximum SPL (at 0.5% THD) | 106dB |
| Dynamic Range (THD+N < 10%) | 92 dB, A-Weighted |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | Custom 2-pin (cable length 10 feet [3 meters]) |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 2.5 inches (63 mm) Depth: 2.5 inches (63 mm) |
| Weight | 0.4 lbs (0.2 kg) |
| PLENUM BOX | |
| Connectors | Two RJ-45: one between TCM-1EX plenum box and TCM-1 or TCM-1A, the other between TCM-1EX plenum box and additional TCM-1EX plenum box 2-pin 3.5 mm Phoenix connector to TCM-1EX microphone |
| Power | Custom/Proprietary |
| Indicators | Link Indicator (Green LED) |
| Digital Interface | Custom/Proprietary |
| Max Distance Between Devices | 33 feet (10 meters) between TCM plenum boxes |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 4 inches (102 mm) Depth: 5.25 inches (133 mm) |
| Weight | 0.8 lbs (0.4 kg) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 - 40¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
