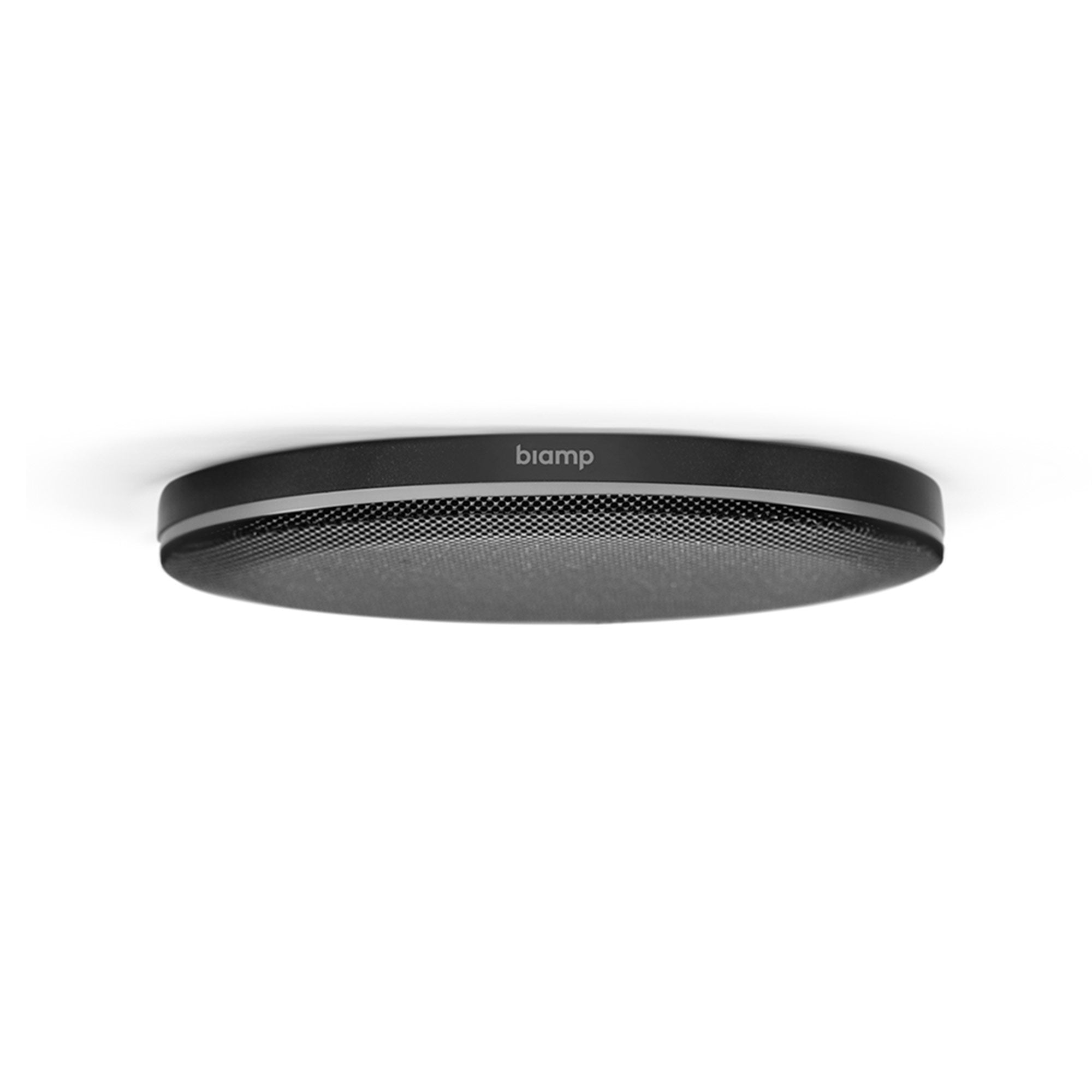

Biamp Parle TCM-X - BeamTracking Ceiling Microphone with AVB Interface (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
Features:
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| CEILING MOUNT MICROPHONE | |
| Microphone Technology | 16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Active Beamformed |
| SNR (at 1kHz, 94dBSPL A-Weighted) | > 76dB |
| Maximum SPL (at < 1% THD) | 109dB |
| Dynamic Range (THD+N < 1%) | 92dB, A-Weighted |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions | Height (excluding ceiling mount): 0.7 inches (17 mm) Diameter: 5.9 inches (150 mm) |
| Weight | 0.7 lbs (340 g) |
| NETWORK BOX | |
| Connectors | Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX |
| Power | PoE (IEEE 802.3at Class 3, 15.4W) |
| Indicators | Power Indicator (Green/Yellow/Red LED) |
| Digital Interface | Custom/Proprietary |
| Max Distance Between Devices | 330 feet (100 meters) from switch to TCM-X network box 33 feet (10 meters) between TCM-X network box and TCM-XEX |
| Overall Dimensions | Height: 1.2 inches (30 mm) Width: 6.8 inches (172 mm) Depth: 5.2 inches (132 mm) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 - 40¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
Features:
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| CEILING MOUNT MICROPHONE | |
| Microphone Technology | 16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Active Beamformed |
| SNR (at 1kHz, 94dBSPL A-Weighted) | > 76dB |
| Maximum SPL (at < 1% THD) | 109dB |
| Dynamic Range (THD+N < 1%) | 92dB, A-Weighted |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions | Height (excluding ceiling mount): 0.7 inches (17 mm) Diameter: 5.9 inches (150 mm) |
| Weight | 0.7 lbs (340 g) |
| NETWORK BOX | |
| Connectors | Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX |
| Power | PoE (IEEE 802.3at Class 3, 15.4W) |
| Indicators | Power Indicator (Green/Yellow/Red LED) |
| Digital Interface | Custom/Proprietary |
| Max Distance Between Devices | 330 feet (100 meters) from switch to TCM-X network box 33 feet (10 meters) between TCM-X network box and TCM-XEX |
| Overall Dimensions | Height: 1.2 inches (30 mm) Width: 6.8 inches (172 mm) Depth: 5.2 inches (132 mm) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 - 40¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
