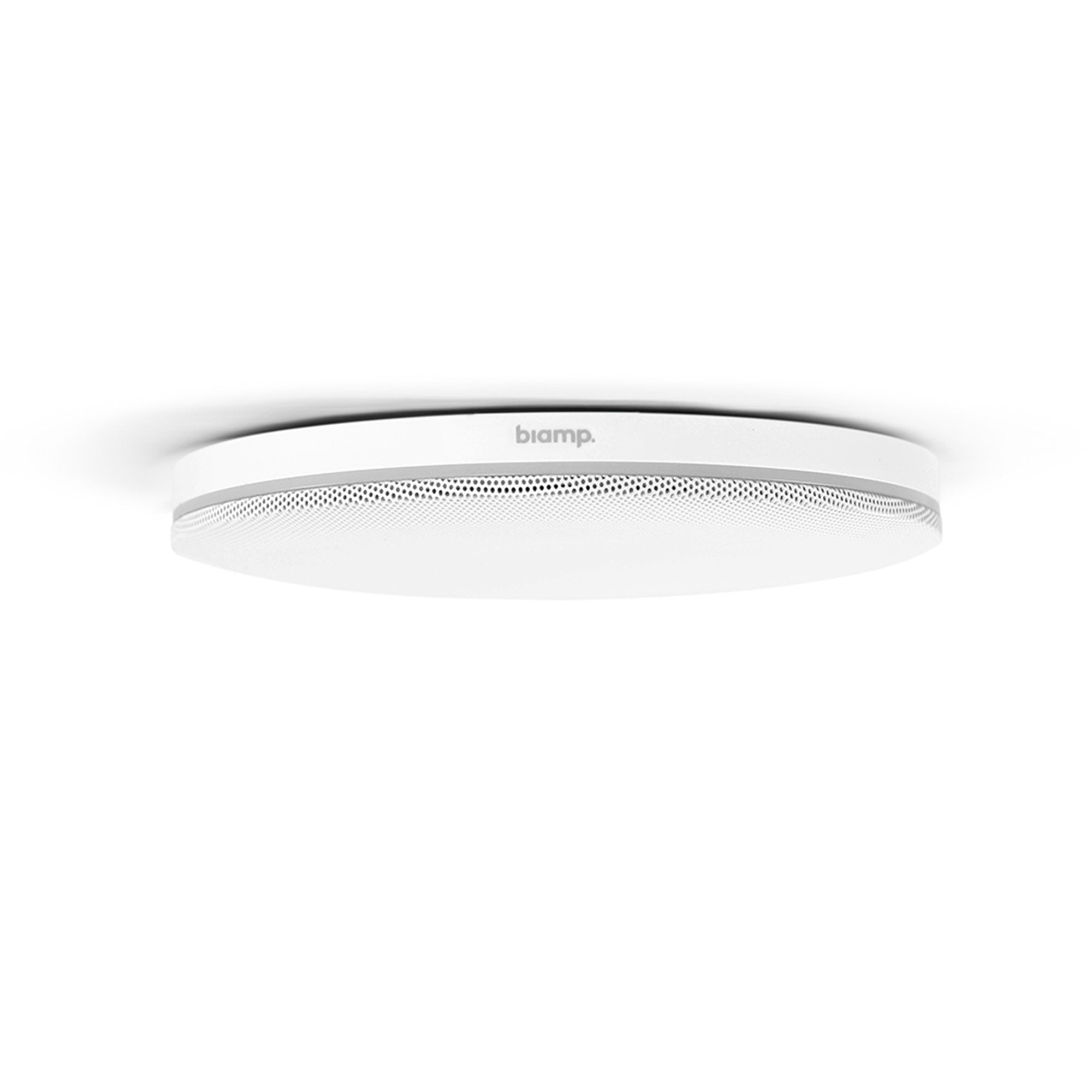

Biamp Parle TCM-X - BeamTracking Ceiling Microphone with AVB Interface (White)


  • Dale #:

    BIAM-PARLETCMXWHITE
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone deliver... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.

Features:

  • Measures 5.90 inches (150 mm) in diameter
  • Mounts directly to the ceiling to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Network box includes DSP for Beamtracking
  • Uses only one channel of AEC per mic
  • Single cable connection via CAT cable
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • LED mute status indicator
  • Available in either black or white
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Additional RJ-45 connection
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems' five-year warranty

More +

Product Specs

CEILING MOUNT MICROPHONE
Microphone Technology 16-Element Digital Array
Frequency Response (150 Hz - 16 kHz) ± 3dB
Polar Pattern Active Beamformed
SNR (at 1kHz, 94dBSPL A-Weighted) > 76dB
Maximum SPL (at < 1% THD) 109dB
Dynamic Range (THD+N < 1%) 92dB, A-Weighted
Indicators Mute Indicator (Green/Red LED)
Digital Interface Custom/Proprietary
Connector RJ-45 (cable length 6.6 feet [2 meters])
Overall Dimensions Height (excluding ceiling mount): 0.7 inches (17 mm)
Diameter: 5.9 inches (150 mm)
Weight 0.7 lbs (340 g)
NETWORK BOX
Connectors Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX
Power PoE (IEEE 802.3at Class 3, 15.4W)
Indicators Power Indicator (Green/Yellow/Red LED)
Digital Interface Custom/Proprietary
Max Distance Between Devices 330 feet (100 meters) from switch to TCM-X network box
33 feet (10 meters) between TCM-X network box and TCM-XEX
Overall Dimensions Height: 1.2 inches (30 mm)
Width: 6.8 inches (172 mm)
Depth: 5.2 inches (132 mm)
Ambient Operating Temperature Range 32 - 104° F (0 - 40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-10,000 ft (0-3000m) MSL
Compliance FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces

More +
