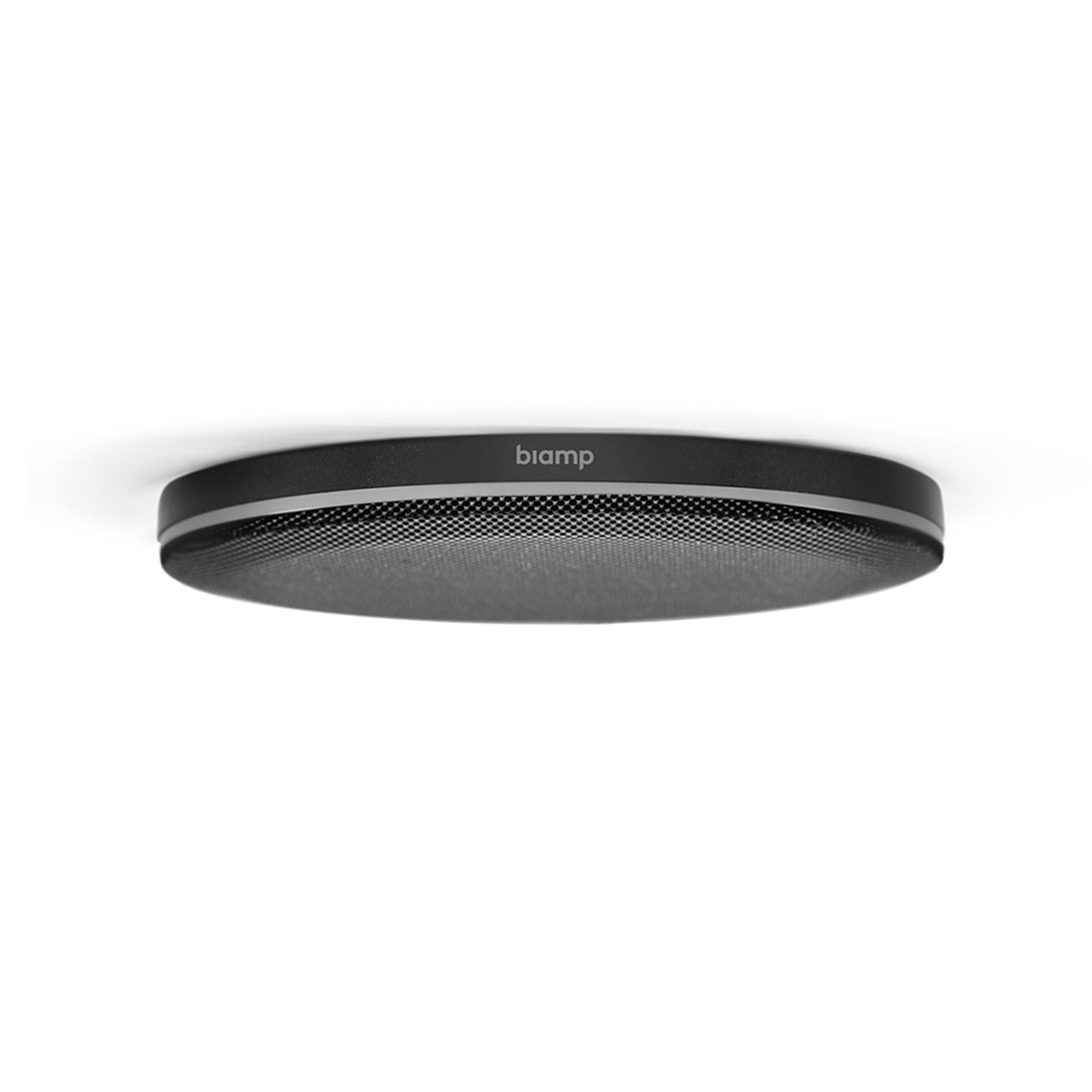

Biamp Parle TCM-XA - BeamTracking Ceiling Microphone with AVB Interface (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
Features:
- Measures 5.90 inches (150mm) in diameter
- Uses only one channel of AEC per mic
- Network box includes DSP for Beamtracking and a PoE+ amplifier:
- Two channels
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- Single cable connection via CAT cable
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| CEILING MOUNT MICROPHONE | |
| Microphone Technology | 16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Active Beamformed |
| SNR (at 1kHz, 94dBSPL A-Weighted) | > 76dB |
| Maximum SPL (at < 1% THD) | 109dB |
| Dynamic Range (THD+N < 1%) | 92dB, A-Weighted |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions | Height (excluding ceiling mount): 0.7 inches (17 mm) Diameter: 5.9 inches (150 mm) |
| Weight | 0.7 lbs (340 g) |
| NETWORK BOX | |
| Connectors | Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX |
| Power | PoE+ (IEEE 802.3at Class 4, 30W) |
| Indicators | Power Indicator (Green/Yellow/Red LED) |
| Digital Interface | Custom/Proprietary |
| Max Distance Between Devices | 330 feet (100 meters) from switch to TCM-X network box 33 feet (10 meters) between TCM-X network box and TCM-XEX |
| Overall Dimensions | Height: 1.2 inches (30 mm) Width: 6.8 inches (172 mm) Depth: 5.2 inches (132 mm) |
| Weight | 1.5 lbs (680 g) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 - 40¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
| AMPLIFIER | |
| Number of Channels | 2 |
| Connectors | RJ-45 |
| Amplifier Topology | Class D |
| Burst Power Output (per ANSI/CTA-2006-B @ 1kHz) | 4½ (per channel): 40W 8½ (per channel): 30W |
| Continuous Power Output | Single Channel Driven, (4½, 8½): 8W Dual Channel Driven (4½, 8½): 4W |
| THD+N (20Hz-20kHz, at continuous power) | < 0.3% |
| Frequency Response (20Hz-20kHz) | ± 1dB |
| Dynamic Range (20Hz-20kHz BW) | > 85dB |
| Minimum Operational Load | 4½ |
| Intermodulation distortion (SMPTE) | < 0.3% |
| Cross Talk (channel to channel @ 1kHz) | < -90dB |
The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
Features:
- Measures 5.90 inches (150mm) in diameter
- Uses only one channel of AEC per mic
- Network box includes DSP for Beamtracking and a PoE+ amplifier:
- Two channels
- Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
- Software-selectable power vs. channel count
- Includes internal limiter function
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- Single cable connection via CAT cable
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| CEILING MOUNT MICROPHONE | |
| Microphone Technology | 16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Active Beamformed |
| SNR (at 1kHz, 94dBSPL A-Weighted) | > 76dB |
| Maximum SPL (at < 1% THD) | 109dB |
| Dynamic Range (THD+N < 1%) | 92dB, A-Weighted |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions | Height (excluding ceiling mount): 0.7 inches (17 mm) Diameter: 5.9 inches (150 mm) |
| Weight | 0.7 lbs (340 g) |
| NETWORK BOX | |
| Connectors | Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX |
| Power | PoE+ (IEEE 802.3at Class 4, 30W) |
| Indicators | Power Indicator (Green/Yellow/Red LED) |
| Digital Interface | Custom/Proprietary |
| Max Distance Between Devices | 330 feet (100 meters) from switch to TCM-X network box 33 feet (10 meters) between TCM-X network box and TCM-XEX |
| Overall Dimensions | Height: 1.2 inches (30 mm) Width: 6.8 inches (172 mm) Depth: 5.2 inches (132 mm) |
| Weight | 1.5 lbs (680 g) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 - 40¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
| AMPLIFIER | |
| Number of Channels | 2 |
| Connectors | RJ-45 |
| Amplifier Topology | Class D |
| Burst Power Output (per ANSI/CTA-2006-B @ 1kHz) | 4½ (per channel): 40W 8½ (per channel): 30W |
| Continuous Power Output | Single Channel Driven, (4½, 8½): 8W Dual Channel Driven (4½, 8½): 4W |
| THD+N (20Hz-20kHz, at continuous power) | < 0.3% |
| Frequency Response (20Hz-20kHz) | ± 1dB |
| Dynamic Range (20Hz-20kHz BW) | > 85dB |
| Minimum Operational Load | 4½ |
| Intermodulation distortion (SMPTE) | < 0.3% |
| Cross Talk (channel to channel @ 1kHz) | < -90dB |
