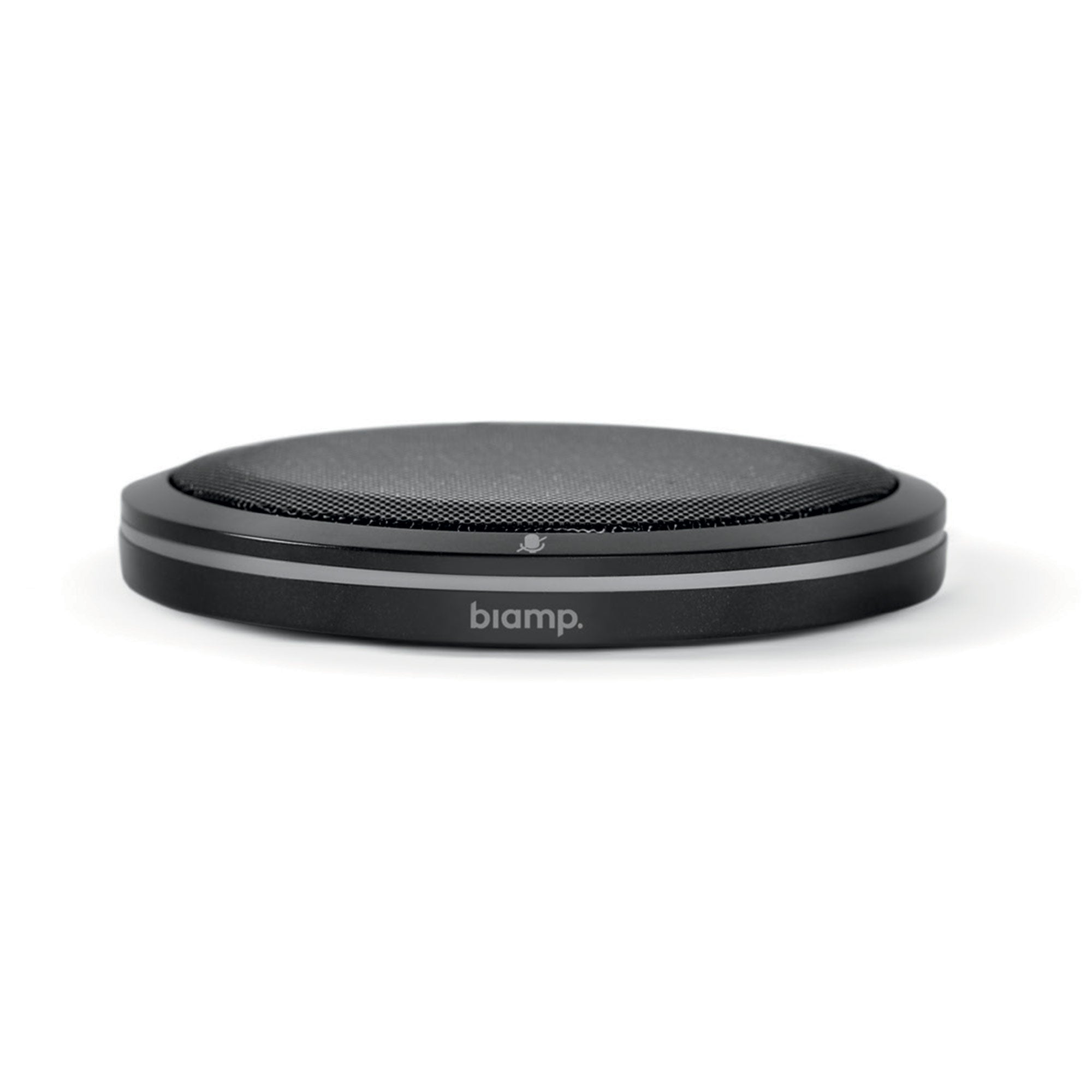

Biamp Parle TTM-X - Tabletop BeamTracking Microphone with AVB Interface (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Parlé TTM-X is an AVB low profile tabletop microphone for use in Tesira systems. Comprising a network box and a tabletop microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TTM-XEX. A maximum of two microphones are permitted (one TTM-X with TTM-XEX).
Features:
- Measures 4.7 inches (110 mm) in diameter
- Sits directly on a table top to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box which includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Additional RJ-45 connection for TTM-XEX
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| TABLETOP MICROPHONE | |
| Microphone Technology | 16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Beamformed |
| Sensitivity (94dB SPL, 1kHz) | > 74dB |
| Maximum SPL (at 0.5% THD) | 109dB |
| Dynamic Range (THD+N < 10%) | 90dB, A-Weighted |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions | Height: 0.7 inches (18 mm) Diameter: 4.3 inches (110 mm) |
| Weight | 0.5 lbs (231 g) |
| NETWORK BOX | |
| Connectors | Three RJ-45: one between TTM-X network box and switch, one between the network box and microphone, the other between TTM-X network box and TTM-XEX |
| Power | PoE (IEEE 802.3at Class 3, 15.4W) |
| Indicators | Power Indicator (Green/Yellow/Red LED) |
| Digital Interface | Custom/Proprietary |
| Max Distance Between Devices | 330 feet (100 meters) from switch to TTM-X network box 33 feet (10 meters) between TTM-X network box and TTM-XEX |
| Overall Dimensions | Height: 0.9 inches (23 mm) Width: 4.2 inches (106 mm) Depth: 4.2 inches (106 mm) |
| Weight | 0.7 lbs (310 g) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 - 40¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) |
