DALE SKU # BLMG-BDLKULSDMAREC3G

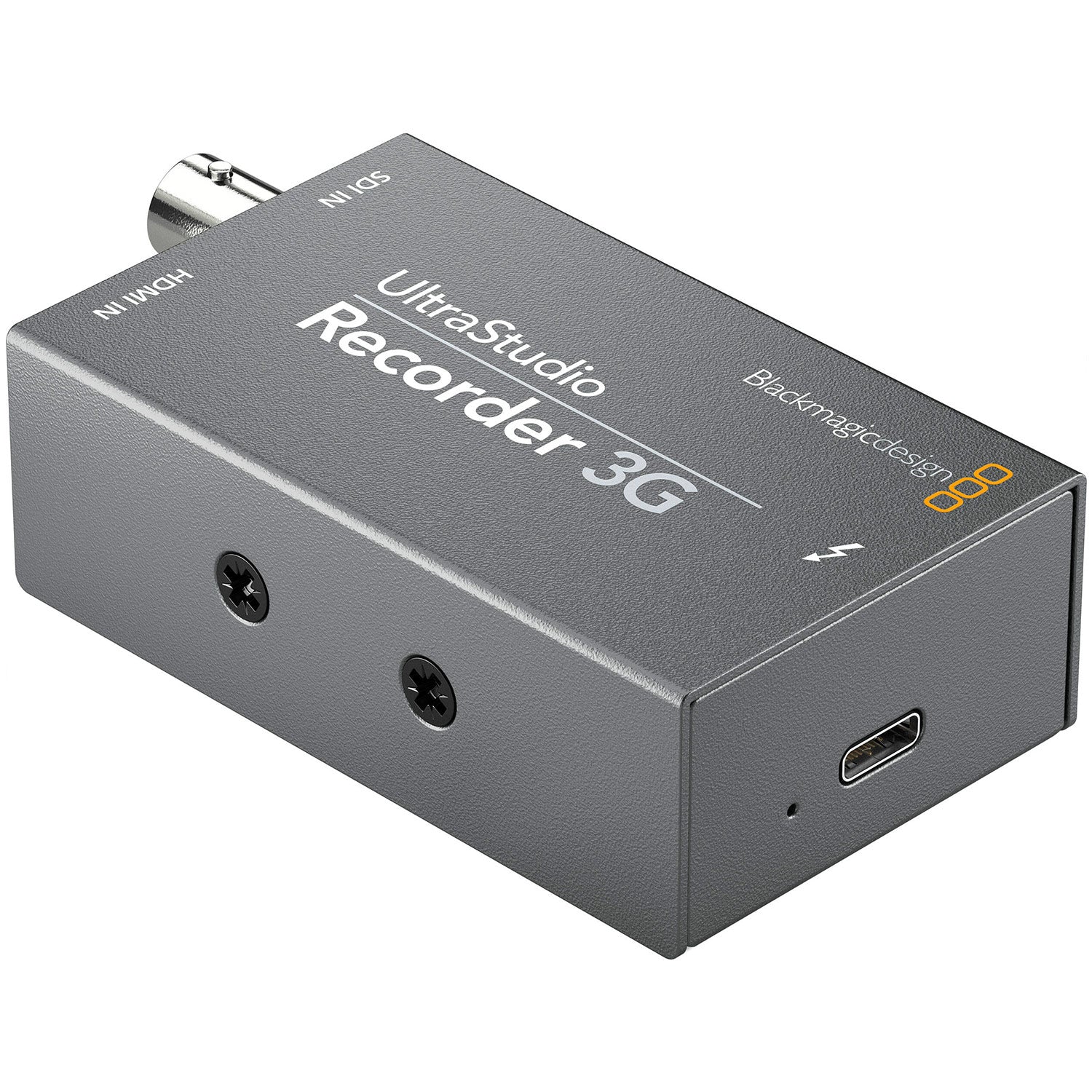

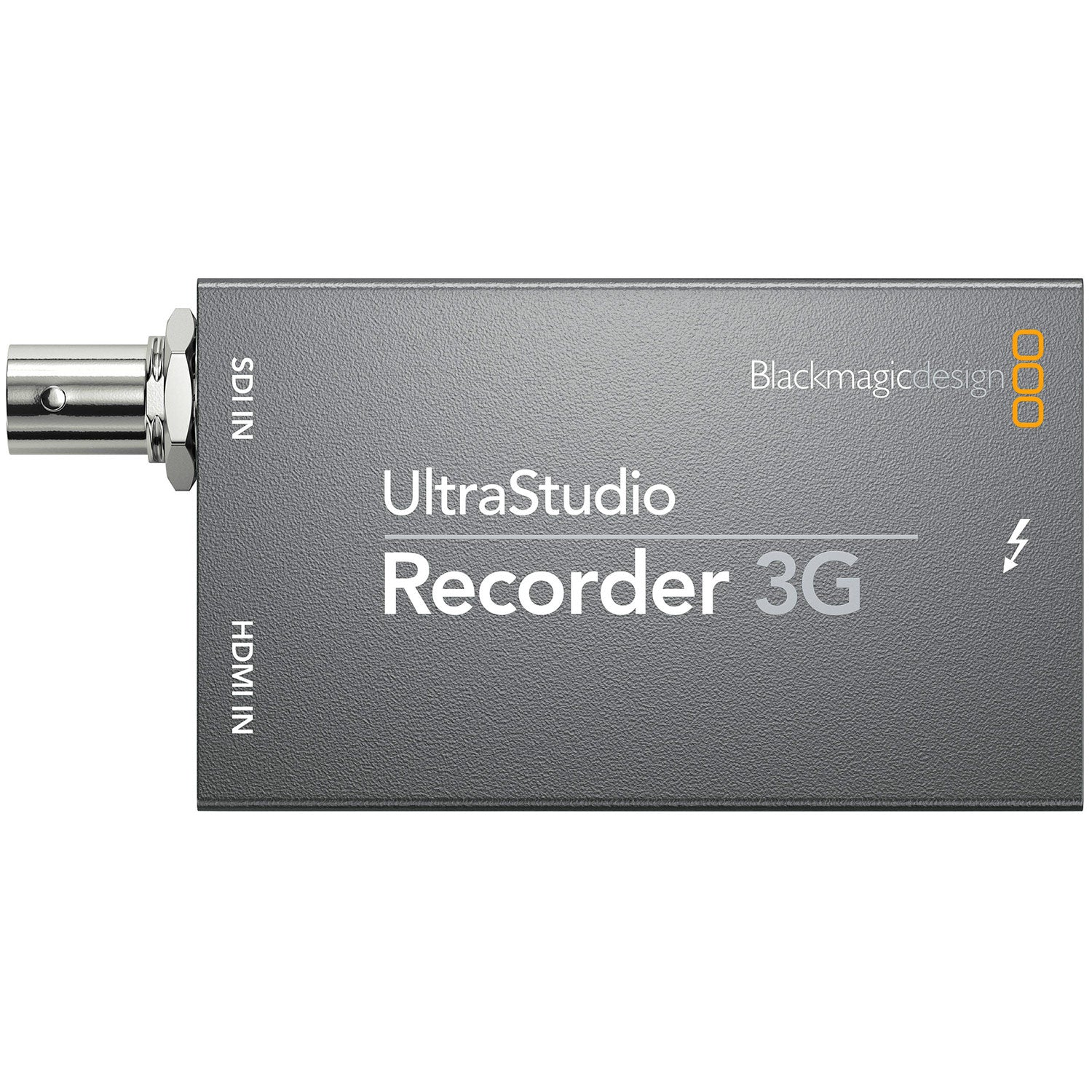

Blackmagic Design UltraStudio Recorder 3G

Sale price$149.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Great for streaming and capture from any HDMI or SDI broadcast quality video source, UltraStudio Recorder includes 3G-SDI and HDMI in all formats up to 1080p60.

    Get the world’s smallest pocket sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer! UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more!

    SDI Video Inputs 1
    SDI Rates 270Mb, 1.5G, 3G
    SDI Audio Inputs 16 Channels embedded in SD/HD
    HDMI Video Inputs 1
    HDMI Audio Inputs 8 Channels embedded in SD/HD
    Computer Interface Thunderbolt䋢 3 (Mac OS, Windows and Linux)
    Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR / DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
    Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
    Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
    Software Applications Wirecast
    vMix
    OBS
    Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go / [REC]Marker, Zoom.
    SDI Standards
    SD Video Standards 525i59.94 NTSC, 625i50 PAL
    HD Video Standards 720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60
    2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
    SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
    SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning.
    SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
    SDI Video Sampling 4:2:2, 4:4:4
    SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
    SDI Color Space REC 601, REC 709 and REC 2020
    Multiple Rate Support SDI video connection is switchable between SD and HD.
    HDMI Video Standards
    SD Video Standards 525i59.94 NTSC, 625i50 PAL
    HD Video Standards 720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60
    HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
    HDMI Video Sampling 4:2:2 and 4:4:4
    HDMI Color Precision 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
    HDMI Configuration HDMI 2.0a supports Deep Color.
    HDMI Color Space REC 601, REC 709 and REC 2020
    Multiple Rate Support HDMI video connection is switchable between SD and HD.
    Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
    Hardware Frame Buffer v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
    Processing
    Colorspace Conversion Hardware based real time.
    Physical Installation Requires computer with a Thunderbolt䋢 3 USB-C port. Please check support pages to see the full system requirements.
    Physical Specifications
    Operating Systems Mac 10.14 Mojave,
    Mac 10.15 Catalina or later.
    Windows 8.1 and 10, both 64-bit.
    Linux
    Power Requirements Powered by Thunderbolt cable. Requires computer with a Thunderbolt䋢 3 USB-C port.
    Operating Temperature 5å¡ to 40å¡ C (32å¡ to 104å¡ F)
    Storage Temperature -20å¡ to 45å¡ C (-4å¡ to 113å¡ F)
    Relative Humidity 0% to 90% non-condensing
    What's Included UltraStudio Recorder 3G
    Warranty 12 Month Limited Manufacturer's Warranty.
