Bose DesignMax DM10P-SUB - 300-Watt 10-Inch Pendant Install Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose DesignMax DM10P-SUB - 300-Watt 10-Inch Pendant Install Subwoofer (Black)
Sale price$599.95
Regular price$716.00
Description

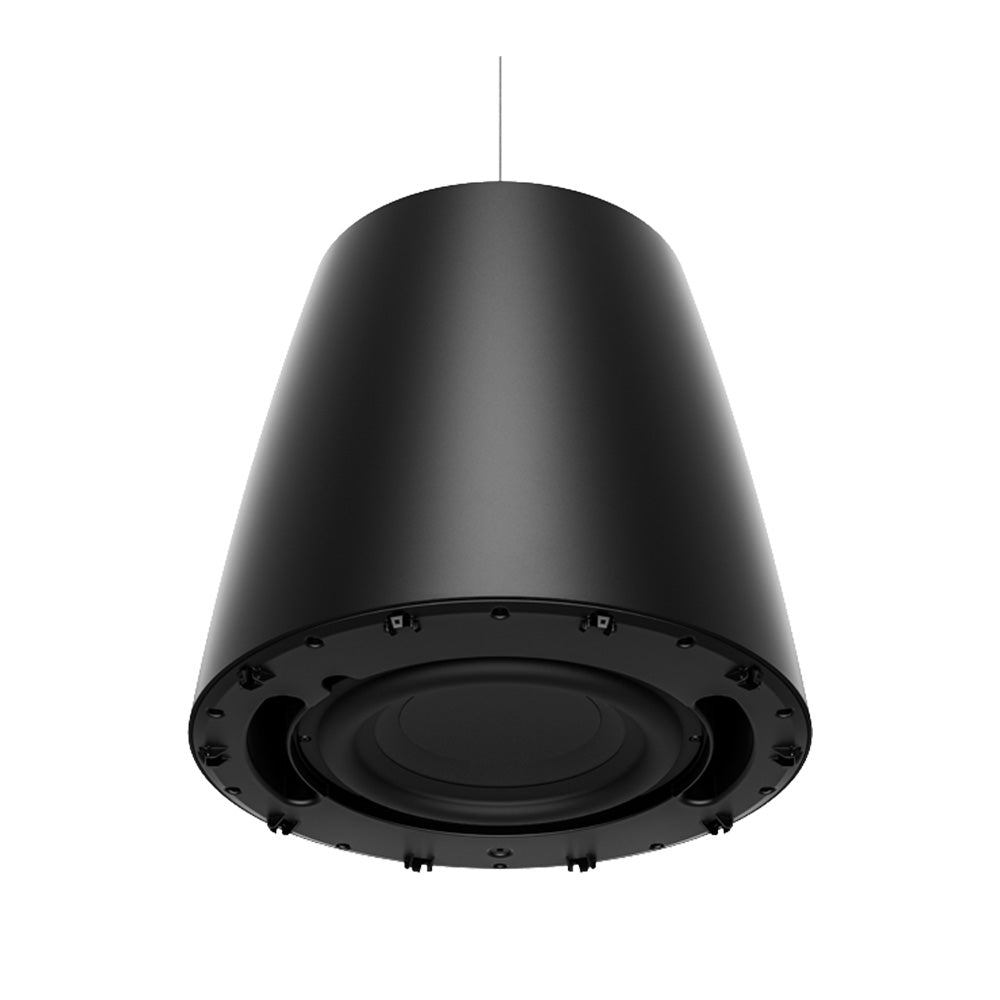

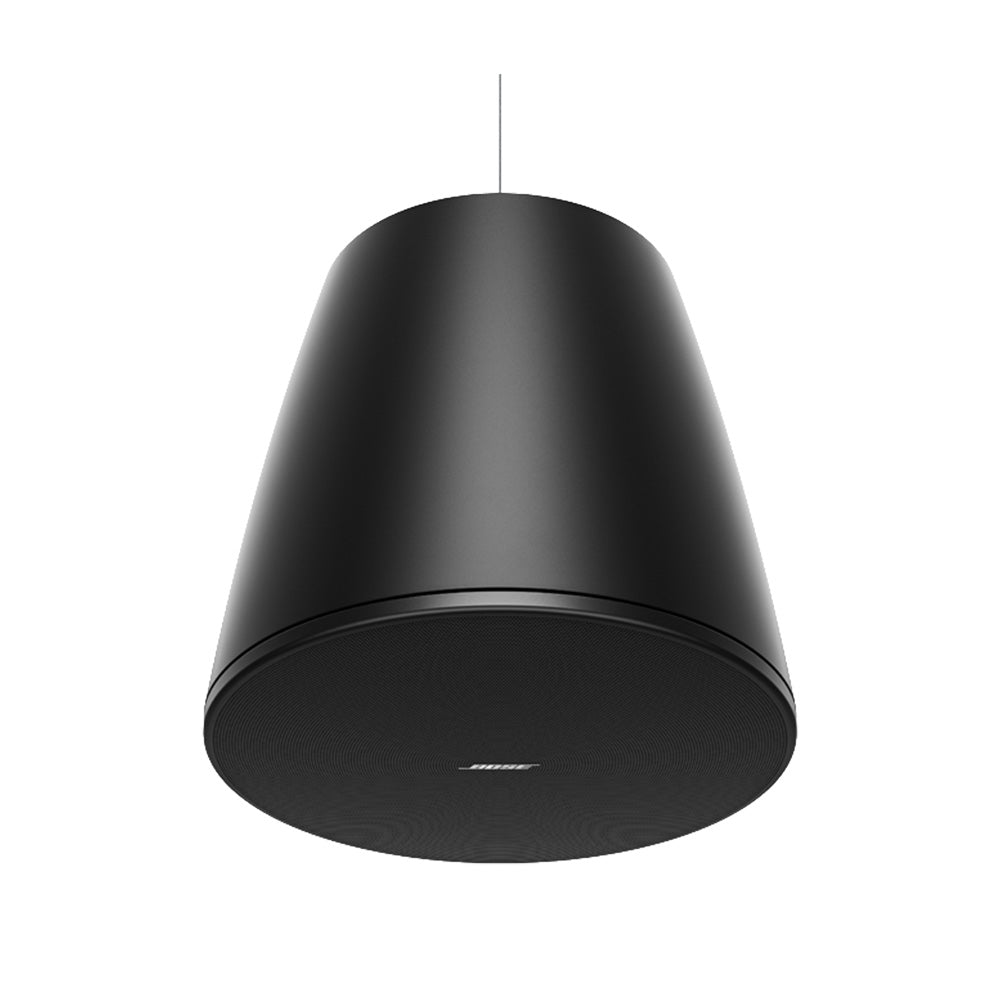

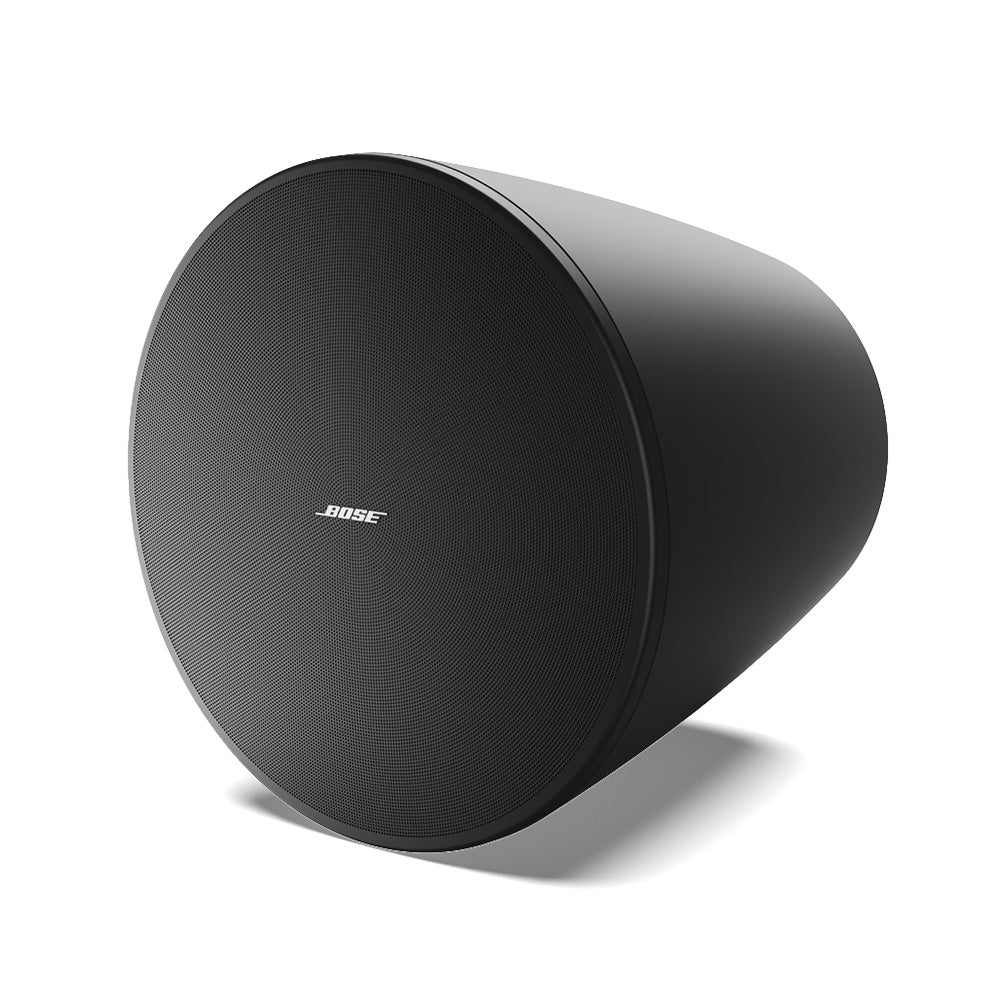

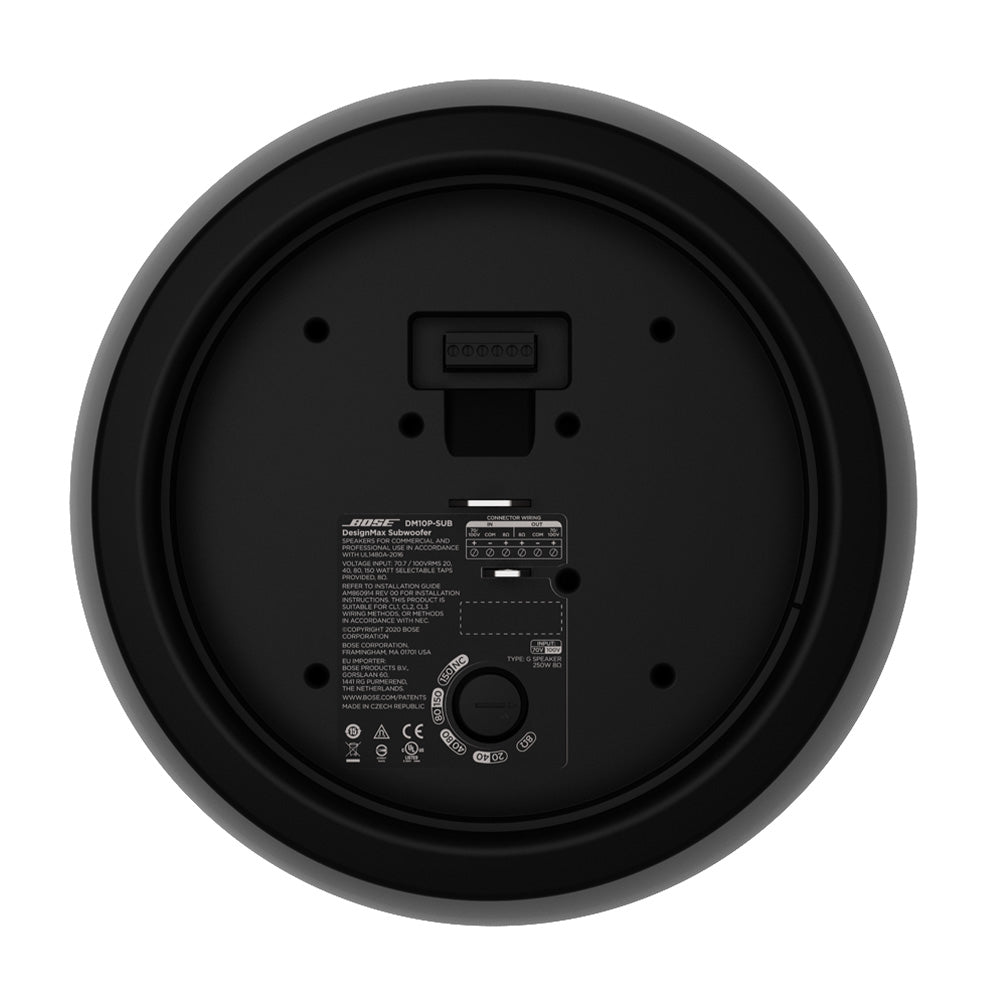

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DesignMax subwoofer models - the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
- Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access:
| PHYSICAL | |
| Environmental | Indoor only |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 19.7 lb (8.9 kg) |
| Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
| Product Dimensions (HxWxD) | 15.7 in x 15.1 in (400 mm x 383 mm), loudspeaker diameter x depth |
| Shipping Weight | 27.9 lb (12.7 kg) |
| COMPLIANCE | |
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 40 Hz Ð 125 Hz |
| Coverage, Horizontal | Omnidirectional below 200 Hz |
| Calculated Maximum SPL @ 1 m | 110 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 250 W |
| Power Handling, Peak | 1000 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 85 dB |
| Transformer Taps, 100V | 40, 80, 150 W, bypass |
| Transformer Taps, 70V | 20 W, 40 W, 80 W, 150 W, bypass |
| Coverage, Vertical | Omnidirectional below 200 Hz |
| TRANSDUCERS | |
| Crossover | 80 Hz Ð 200 Hz via active crossover in DSP |
| Driver Protection | Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter |
| Low-Frequency | 1 x 10 in (254 mm) woofer |
| Product codes | 835265-0110 DESIGNMAX DM10P-SUB SINGLE BLACK 835265-0210 DESIGNMAX DM10P-SUB SINGLE WHITE 835265-0120 DESIGNMAX DM10P-SUB SINGLE BLK (NEW) 835265-0220 DESIGNMAX DM10P-SUB SINGLE WHT (NEW) |
| Included in Packaging | (1) cable fastener (1) cable fastener tool (1) DesignMax DM10P-SUB subwoofer (1) installation guide (1) suspension cable, 15.0 ft (4.5 m) (4) cable ties |
Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DesignMax subwoofer models - the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
- Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access:
| PHYSICAL | |
| Environmental | Indoor only |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 19.7 lb (8.9 kg) |
| Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
| Product Dimensions (HxWxD) | 15.7 in x 15.1 in (400 mm x 383 mm), loudspeaker diameter x depth |
| Shipping Weight | 27.9 lb (12.7 kg) |
| COMPLIANCE | |
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 40 Hz Ð 125 Hz |
| Coverage, Horizontal | Omnidirectional below 200 Hz |
| Calculated Maximum SPL @ 1 m | 110 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 250 W |
| Power Handling, Peak | 1000 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 85 dB |
| Transformer Taps, 100V | 40, 80, 150 W, bypass |
| Transformer Taps, 70V | 20 W, 40 W, 80 W, 150 W, bypass |
| Coverage, Vertical | Omnidirectional below 200 Hz |
| TRANSDUCERS | |
| Crossover | 80 Hz Ð 200 Hz via active crossover in DSP |
| Driver Protection | Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter |
| Low-Frequency | 1 x 10 in (254 mm) woofer |
| Product codes | 835265-0110 DESIGNMAX DM10P-SUB SINGLE BLACK 835265-0210 DESIGNMAX DM10P-SUB SINGLE WHITE 835265-0120 DESIGNMAX DM10P-SUB SINGLE BLK (NEW) 835265-0220 DESIGNMAX DM10P-SUB SINGLE WHT (NEW) |
| Included in Packaging | (1) cable fastener (1) cable fastener tool (1) DesignMax DM10P-SUB subwoofer (1) installation guide (1) suspension cable, 15.0 ft (4.5 m) (4) cable ties |
