DALE SKU # BOSE-8352650220

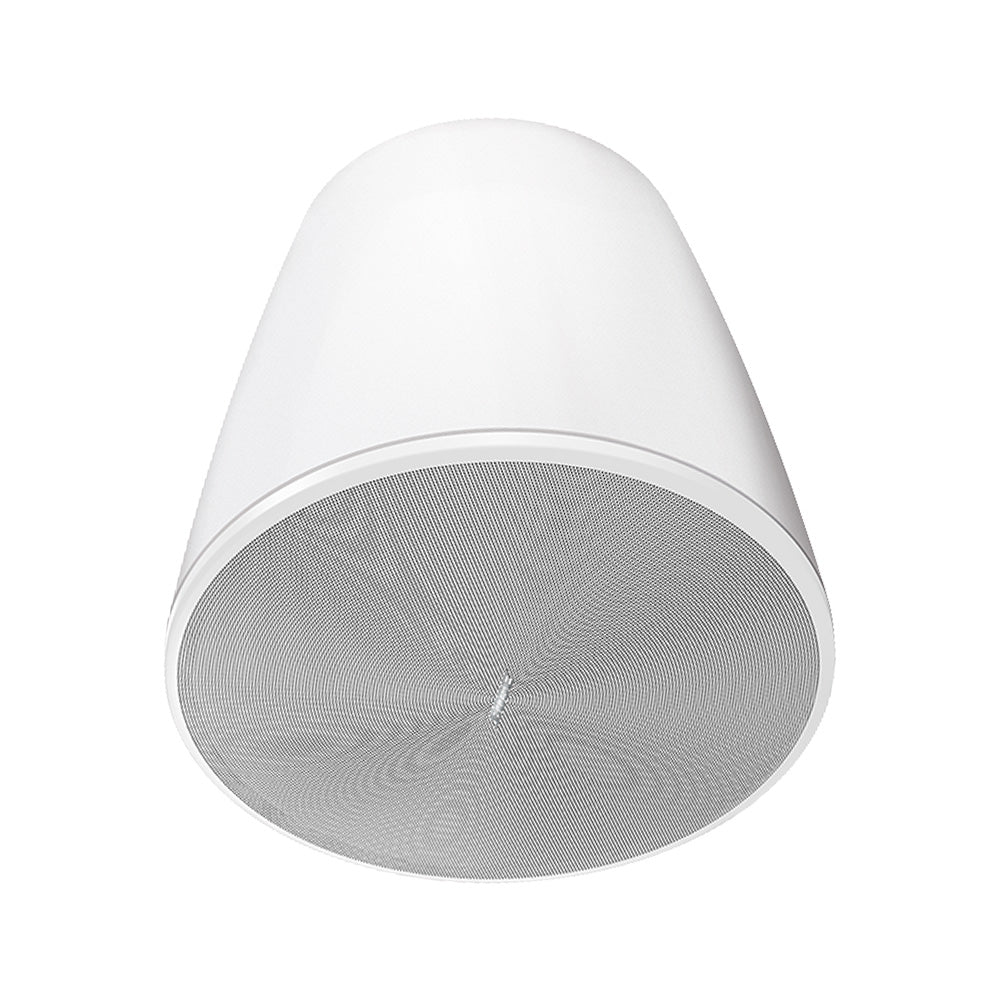

Bose DesignMax DM10P-SUB - 300-Watt 10-Inch Pendant Install Subwoofer (White)

Sale price$599.95 Regular price$716.00
Save $116.05
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

    Features:

    • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
    • Choose from three DesignMax subwoofer models - the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
    • Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
    • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
    • Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access:
    PHYSICAL
    Environmental Indoor only
    Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable
    Enclosure Material Engineered plastics
    Grille Perforated steel, powder-coated finish
    Logo Rotatable, removable
    Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point
    Net Weight 19.7 lb (8.9 kg)
    Operating Temperature Range 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F)
    Product Dimensions (HxWxD) 15.7 in x 15.1 in (400 mm x 383 mm), loudspeaker diameter x depth
    Shipping Weight 27.9 lb (12.7 kg)
    COMPLIANCE
    Safety Agency Ratings UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant
    PERFORMANCE
    Frequency Range (-10 dB) 40 Hz Ð 125 Hz
    Coverage, Horizontal Omnidirectional below 200 Hz
    Calculated Maximum SPL @ 1 m 110 dB
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 250 W
    Power Handling, Peak 1000 W
    Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
    Sensitivity (SPL/1 W at 1 m) 85 dB
    Transformer Taps, 100V 40, 80, 150 W, bypass
    Transformer Taps, 70V 20 W, 40 W, 80 W, 150 W, bypass
    Coverage, Vertical Omnidirectional below 200 Hz
    TRANSDUCERS
    Crossover 80 Hz Ð 200 Hz via active crossover in DSP
    Driver Protection Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
    Low-Frequency 1 x 10 in (254 mm) woofer
    Product codes 835265-0110
    DESIGNMAX DM10P-SUB SINGLE BLACK
    835265-0210
    DESIGNMAX DM10P-SUB SINGLE WHITE
    835265-0120
    DESIGNMAX DM10P-SUB SINGLE BLK (NEW)
    835265-0220
    DESIGNMAX DM10P-SUB SINGLE WHT (NEW)
    Included in Packaging (1) cable fastener
    (1) cable fastener tool
    (1) DesignMax DM10P-SUB subwoofer
    (1) installation guide
    (1) suspension cable, 15.0 ft (4.5 m)
    (4) cable ties

    Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

    Features:

    • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
    • Choose from three DesignMax subwoofer models - the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
    • Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
    • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
    • Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access:
    PHYSICAL
    Environmental Indoor only
    Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable
    Enclosure Material Engineered plastics
    Grille Perforated steel, powder-coated finish
    Logo Rotatable, removable
    Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point
    Net Weight 19.7 lb (8.9 kg)
    Operating Temperature Range 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F)
    Product Dimensions (HxWxD) 15.7 in x 15.1 in (400 mm x 383 mm), loudspeaker diameter x depth
    Shipping Weight 27.9 lb (12.7 kg)
    COMPLIANCE
    Safety Agency Ratings UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant
    PERFORMANCE
    Frequency Range (-10 dB) 40 Hz Ð 125 Hz
    Coverage, Horizontal Omnidirectional below 200 Hz
    Calculated Maximum SPL @ 1 m 110 dB
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 250 W
    Power Handling, Peak 1000 W
    Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
    Sensitivity (SPL/1 W at 1 m) 85 dB
    Transformer Taps, 100V 40, 80, 150 W, bypass
    Transformer Taps, 70V 20 W, 40 W, 80 W, 150 W, bypass
    Coverage, Vertical Omnidirectional below 200 Hz
    TRANSDUCERS
    Crossover 80 Hz Ð 200 Hz via active crossover in DSP
    Driver Protection Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
    Low-Frequency 1 x 10 in (254 mm) woofer
    Product codes 835265-0110
    DESIGNMAX DM10P-SUB SINGLE BLACK
    835265-0210
    DESIGNMAX DM10P-SUB SINGLE WHITE
    835265-0120
    DESIGNMAX DM10P-SUB SINGLE BLK (NEW)
    835265-0220
    DESIGNMAX DM10P-SUB SINGLE WHT (NEW)
    Included in Packaging (1) cable fastener
    (1) cable fastener tool
    (1) DesignMax DM10P-SUB subwoofer
    (1) installation guide
    (1) suspension cable, 15.0 ft (4.5 m)
    (4) cable ties
