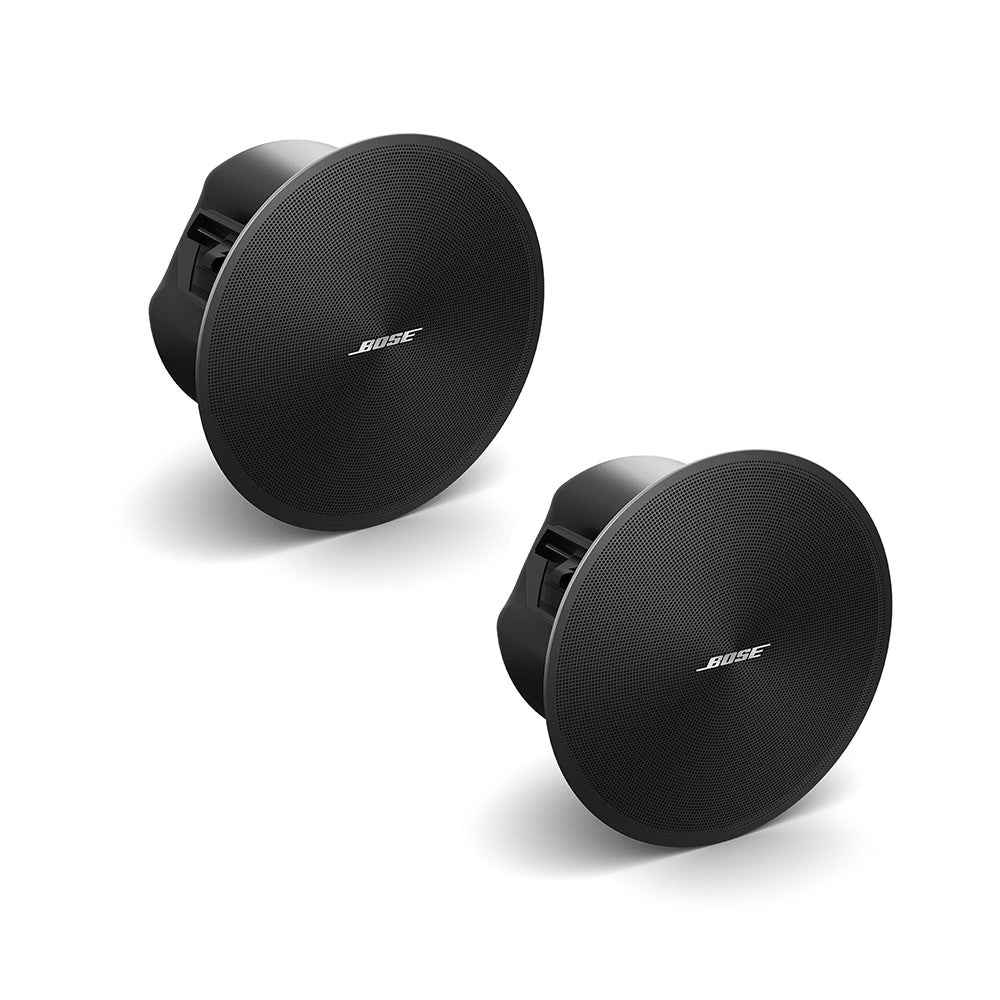

Bose DesignMax DM3C - Coaxial Two-Way 3.5-Inch Ceiling Loudspeaker (Black / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description

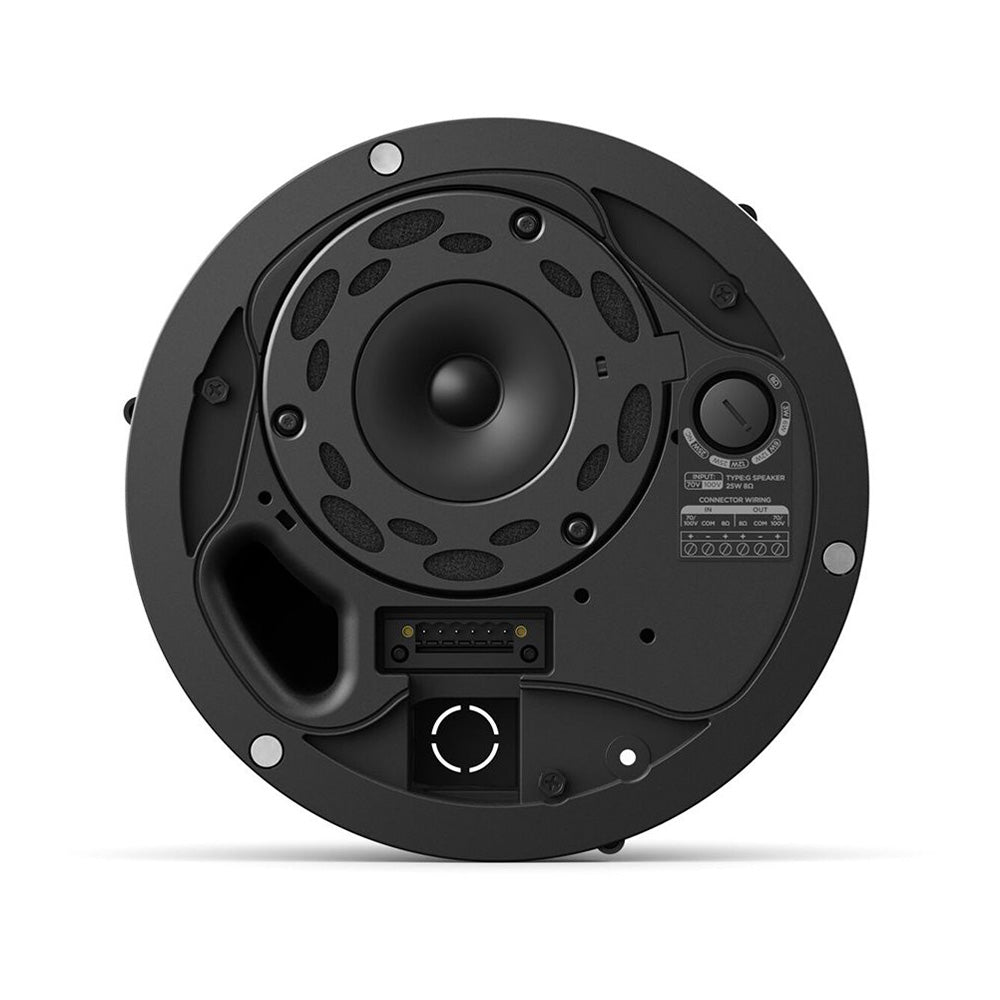

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size - along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.
Features:
- Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver clear highs and surprising low-end for their size with coaxial two-way drivers - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
PHYSICAL | |
Environmental | Indoor only |
Colors | Black (RAL 9005), white (similar to RAL 9003), paintable |
Ceiling Cutout | 8.2 in (208 mm) |

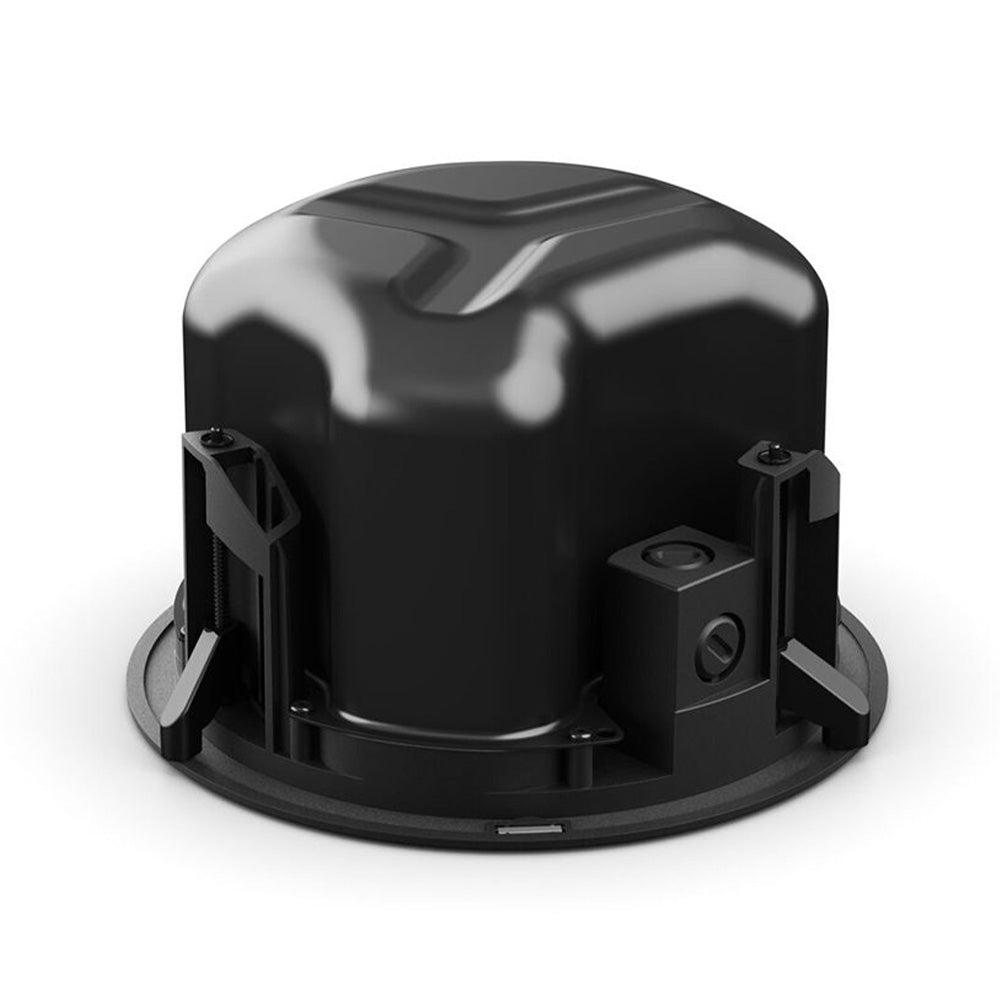

Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether |
Logo | Rotatable, removable |

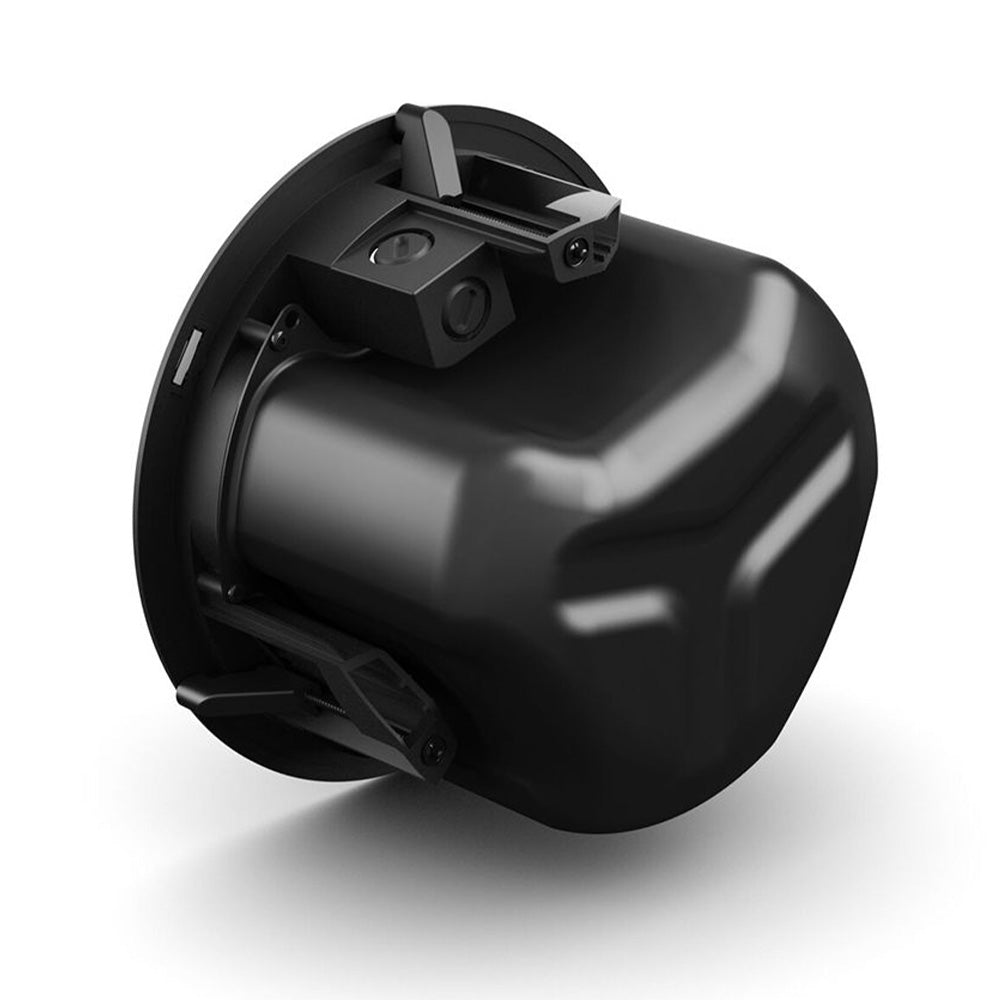

Suspension/Mounting | (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points |
Net Weight | 5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single) |
Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
Product Dimensions (HxWxD) | 10.0 in x 6.0 in (255 mm x 154 mm), loudspeaker diameter x depth / 8.0 in x 5.7 in (203 mm x 144 mm), backcan diameter x depth |
Shipping Weight | 19.2 lb (8.7 kg), pair |
COMPLIANCE | |
Safety Agency Ratings | UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 / NFPA 90A, CE-compliant |
PERFORMANCE | |
Frequency Range (-10 dB) | 75 Hz Ð 20,000 Hz |
Coverage, Horizontal | 135¡ conical |
Coverage, Vertical | 135¡ conical |
Calculated Maximum SPL @ 1 m | 98 dB |
Nominal Impedance | 8 ½ (transformer bypass) |
Power Handling, long-term continuous | 30 W |
Power Handling, Peak | 120 W |
Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m) | 83 dB |
Transformer Taps, 100V | 6, 12, 25 W, bypass |
Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, bypass |
TRANSDUCERS | |
Crossover | 1.7 kHz, passive 2-way crossover |
Driver Protection | Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter |
High-Frequency | 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted |
Low-Frequency | 1 x 3.25 in (83 mm) woofer |
Product codes | 829708-0110 DESIGNMAX DM3C PAIR BLK 829708-0210 DESIGNMAX DM3C PAIR WHT 829708-0120 DESIGNMAX DM3C PAIR BLK (NEW) 829708-0220 DESIGNMAX DM3C PAIR WHT (NEW) |
Warranty Period | 5 years |
Included in Packaging | (1) cutout template (1) installation guide (2) DesignMax DM3C loudspeakers (2) grilles (2) tile bridges |
With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size - along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.
Features:
- Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver clear highs and surprising low-end for their size with coaxial two-way drivers - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
PHYSICAL | |
Environmental | Indoor only |
Colors | Black (RAL 9005), white (similar to RAL 9003), paintable |
Ceiling Cutout | 8.2 in (208 mm) |
Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether |
Logo | Rotatable, removable |
Suspension/Mounting | (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points |
Net Weight | 5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single) |
Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
Product Dimensions (HxWxD) | 10.0 in x 6.0 in (255 mm x 154 mm), loudspeaker diameter x depth / 8.0 in x 5.7 in (203 mm x 144 mm), backcan diameter x depth |
Shipping Weight | 19.2 lb (8.7 kg), pair |
COMPLIANCE | |
Safety Agency Ratings | UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 / NFPA 90A, CE-compliant |
PERFORMANCE | |
Frequency Range (-10 dB) | 75 Hz Ð 20,000 Hz |
Coverage, Horizontal | 135¡ conical |
Coverage, Vertical | 135¡ conical |
Calculated Maximum SPL @ 1 m | 98 dB |
Nominal Impedance | 8 ½ (transformer bypass) |
Power Handling, long-term continuous | 30 W |
Power Handling, Peak | 120 W |
Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m) | 83 dB |
Transformer Taps, 100V | 6, 12, 25 W, bypass |
Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, bypass |
TRANSDUCERS | |
Crossover | 1.7 kHz, passive 2-way crossover |
Driver Protection | Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter |
High-Frequency | 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted |
Low-Frequency | 1 x 3.25 in (83 mm) woofer |
Product codes | 829708-0110 DESIGNMAX DM3C PAIR BLK 829708-0210 DESIGNMAX DM3C PAIR WHT 829708-0120 DESIGNMAX DM3C PAIR BLK (NEW) 829708-0220 DESIGNMAX DM3C PAIR WHT (NEW) |
Warranty Period | 5 years |
Included in Packaging | (1) cutout template (1) installation guide (2) DesignMax DM3C loudspeakers (2) grilles (2) tile bridges |
