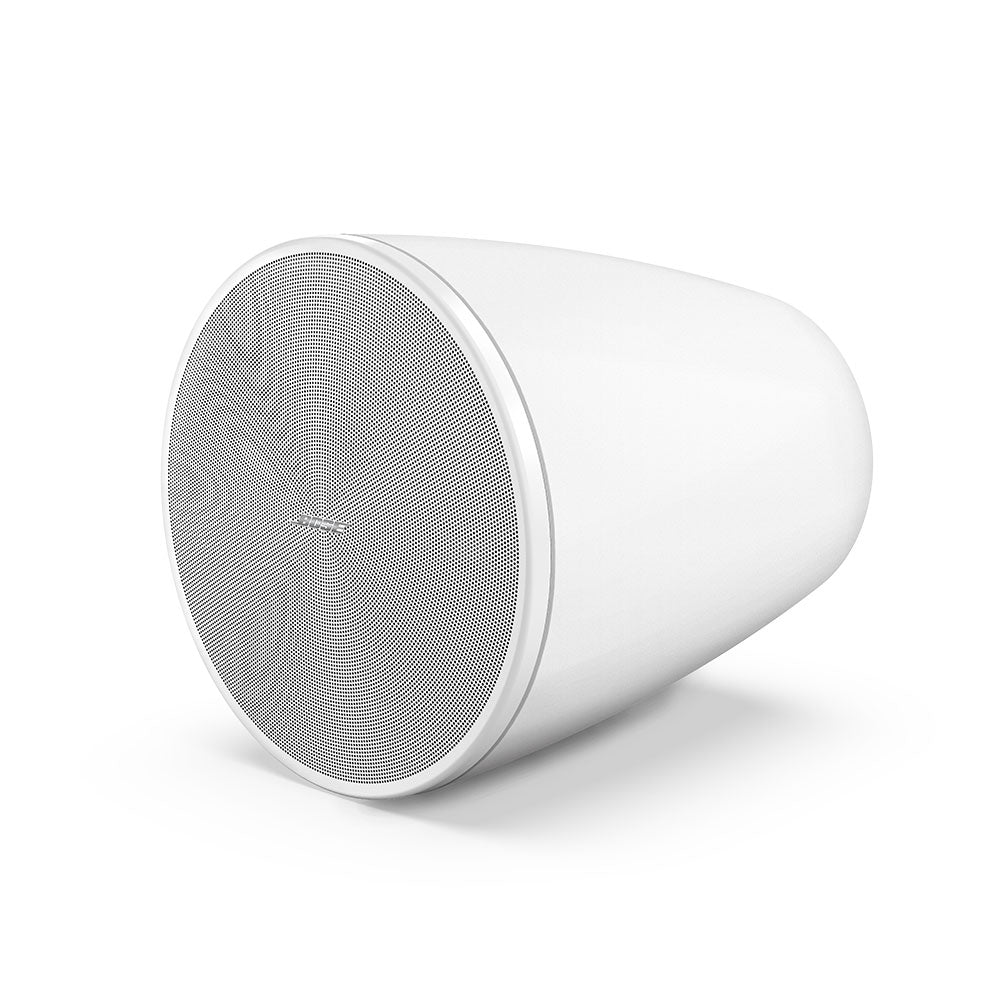

Bose DesignMax DM6PE - 6-Inch Pendant Loudspeaker (White / Pair)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose DesignMax DM6PE - 6-Inch Pendant Loudspeaker (White / Pair)
Sale price$1,106.00
Description
With a coaxial two-way design, the 125-watt DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM6 models — the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker
- Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Install DM6PE outside — IP55 rating with powder-coated steel grille for outdoor
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
| SINGLE-LOUDSPEAKER PERFORMANCE | |
| Frequency Response (Ð3 dB) | 75 Ð 20,000 Hz |
| Frequency Range (Ð10 dB) | 62 Ð 20,000 Hz |
| Nominal Coverage Angle (1 Ð 4 kHz) | 115¡ conical |
| Nominal Coverage Angle (1 Ð 10 kHz) | 115¡ conical |
| Power Handling, long-term continuous | AES transducer test: 125 W Bose extended-lifecycle test: 100 W |
| Power Handling, peak | AES transducer test: 500 W Bose extended-lifecycle test: 400 W |
| Sensitivity (SPL / 1 W @ 1 m) | AES transducer test: 89 dB Bose extended-lifecycle test: 89 dB |
| Calculated Maximum SPL @ 1 m | AES transducer test: 110 dB Bose extended-lifecycle test: 109 dB |
| Calculated Maximum SPL @ 1 m, peak | AES transducer test: 116 dB Bose extended-lifecycle test: 115 dB |
| Crossover | 1.7 kHz (passive two-way crossover) |
| Loudspeaker EQ | Not required, Bose EQ voicing, and SmartBass processing available |
| Recommended High-pass Protection | 60 Hz with minimum 24 dB/octave filter |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass |
| TRANSDUCERS | |
| Low Frequency | 1 _ 6.5-inch woofer (165 mm), weather-treated |
| High Frequency | 1 _ 1.25-inch (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated |
| Technology | Dispersion Alignment system, 197 mm (7.75 in) system diameter |
| Nominal Impedance | 8 _ (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Color | Black: Bose Black, similar to RAL 9005, paintable White: Bose Arctic White, similar to RAL 9003, paintable |
| Paintable | Choose a paint that is specifically designed for use with polypropylene (PP) plastics. |
| Environmental | Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), weather-resistant input cover |
| Safety Agency | UL-1480A, S5591/UL Listed, NFPA70 / NFPA90-A, CE compliant, UL 2239 for suspension cable |
| Operating Temperature Range | Ð25 ¡C to 65 ¡C (Ð13 ¡F to 149 ¡F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. Includes input cover. |
| Suspension / Mounting | Each DM6PE has one (1) suspension attachment point and one (1) safety cable attachment point. Included is one (1) 4.5 meter (15 foot) Gripple adjustable suspension cable. |
| Product Dimensions (Enclosure Diameter _ Depth) | 308 _ 375 mm (12.1 _ 14.8 in) |
| Cable Dimensions | Length: 4.57 m (15.00 ft) Diameter: 2 mm (0.08 in) |
| Net Weight, single | 5.7 kg (12.5 lb) |
| Shipping Weight, pair | 15.01 kg (33.09 lb) |
| Included Accessories | Each DM6PE includes one (1) Gripple adjustable suspension cable system, four (4) cable ties, (1) weather resistant input cover |
| Optional Accessories | Threaded Rod Adapter, Conduit Adapter, Gripple Pendant Suspension Cable Pair kit |
