Description

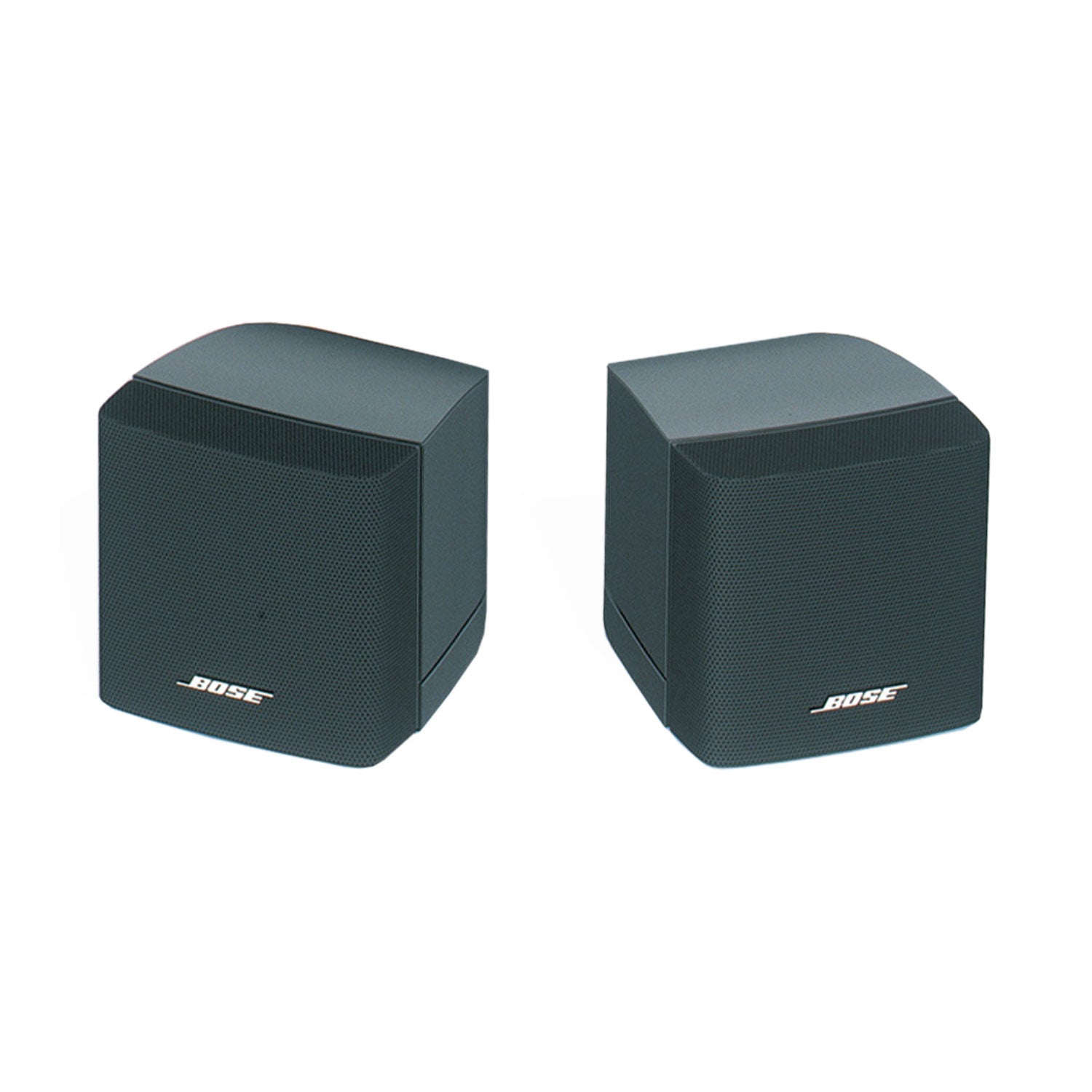

The Bose® FreeSpace® 3 surface-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.
Features:
- Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
- Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
- Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
- Flush-mount components are plenum rated when used with the optional plenum cover
- Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
- Can be configured for stereo or mono operation
Applications:
- Retail stores
- Restaurants and bars
- Lobbies and conference rooms
Frequency Response (+/-3 dB) | 210 Hz - 16 kHz |
Frequency Range (-10 dB) | 170 Hz - 20 kHz |
Nominal Dispersion | 170 ¡ conical |
Long-Term Power Handling | 12W (48W Peak) |
Sensitivity (SPL / 1 W @ 1 m) | 84 dB SPL |
Maximum SPL @ 1 m | 95 dB (101 dB SPL peak) |
Nominal Impedance | 4-Cube System: 6 ½ per channel 2-Cube System: 5 ½ per channel (surface); 6 ½ per channel (flush) |
