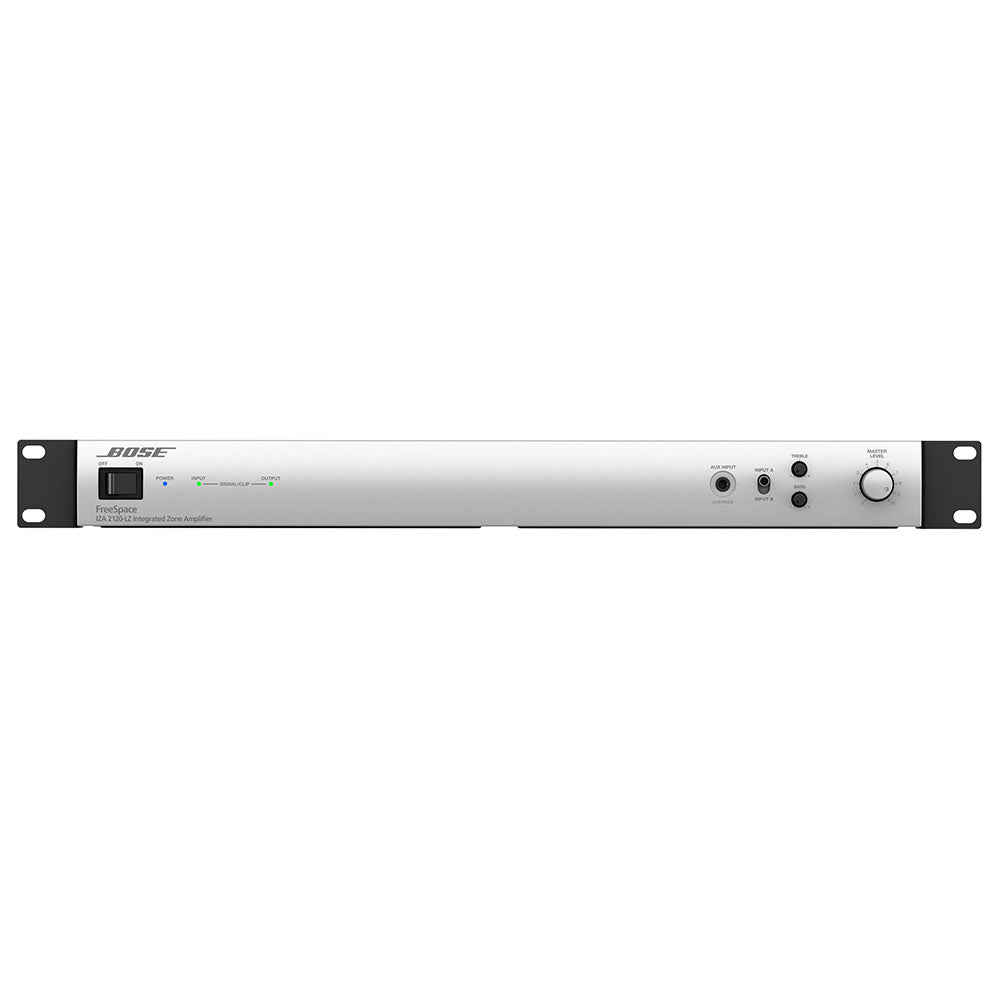

Bose FreeSpace IZA 2120-LZ Integrated Zone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose FreeSpace IZA 2120-LZ Integrated Zone Amplifier
Sale price$1,039.95
Regular price$1,240.00
Description
For background/foreground music and paging applications, Bose® FreeSpace® IZA 2120-LZ integrated zone amplifier elevates the audio experience when using FreeSpace® loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-voice® paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.
Features:
- Opti-voice® paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
- Dynamic EQ ensures full and balanced music at any volume level
- Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose® loudspeakers: FreeSpace® 3 systems, FS3 subwoofer, FS2, FS4 and DesignMax DM2
Remote option for volume/source selection eliminates the need for bulky, inefficient, and sound-altering in-line volume controls - Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
- Reliable 2 x 120 W Class-D amplification optimized for low-impedance applications
- Intuitive feature setup enables the amplifier to be configured without a PC for output, remote, paging, auxiliary input/output and automatic standby options
- Auto-Standby feature allows the amplifier to consume less power when not in use
- Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
- Remote muting allows the amplifier to be muted via a centralized control system
Applications:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
| POWER RATING | |
| Amplifier Power | 2 x 120 W @ 4 ohm, 2 x 60 W @ 8 ohm |
| AUDIO PERFORMANCE | |
| Frequency Response | 20 Hz - 20 kHz (+0/ - 3 dB, @ 1 W reference 1 kHz) |
| THD+N | ? 0.5 % (at rated power) |
| Channel Separation (Crosstalk) | ? - 58 dBu (below rated power, 1 kHz) |
| Dynamic Range | 88 dB |
| INTEGRATED DSP | |
| A/D and D/A Converters | 24-bit / 48 kHz |
| Processing Functions | Loudspeaker EQ, Bose Opti-voice paging, Dynamic equalization |
| Loudspeaker Presets | High-pass filter, FS2C/SE/P, FS4CE/SE, DM2C-LP/S, and SUB (55 - 100Hz) |
| Audio Latency | 10.4 ms - (any input to speaker output or aux output) |
| AUDIO INPUTS | |
| LINE INPUTS | |
| Input Channels | 2 unbalanced, 2 balanced |
| Connectors | Stereo RCA, 5-pin Euroblock |
| Input Range | - 8 dBu to 22 dBu |
| Adjustment Range | 0 dB to - 30 dB |
| Input Impedance | 20 kohm |
| Maximum Input Level | 22 dBu |
| Sensitivity | - 8 dBu |
| Nominal Input Level | 4 dBu |
| PAGE INPUTS | |
| Input Channels | 1 Balanced mic/line |
| Connectors | 4-pin Euroblock |
| Input Range | - 58 dBu to 12 dBu |
| Adjustment Range | 0 dB to +50 dB |
| Input Impedance | 2 kohm |
| Maximum Input Level | 12 dBu |
| Sensitivity | N/A |
| Nominal Input Level | - 38 dBu |
| AUXILIARY INPUT | |
| Input Channels | 1 unbalanced line |
| Connectors | 3.5mm (1/8") TRS |
| Input Range | - 60 dBu to - 1 dBu |
| Adjustment Range | Fixed |
| Input Impedance | 20 kohm |
| Maximum Input Level | - 1 dBu |
| Sensitivity | - 3 dBu |
| Nominal Input Level | - 8 dBu |
| AUDIO OUTPUTS | |
| AMPLIFIER OUTPUTS | |
| Outputs | 2 |
| Connectors, Output | 2-pin inverted Euroblock |
| Output Impedance | 4 ohm |
| Nominal Output Level | 2 x 120 W @ 4 ohm, 2 x 60 W @ 8 ohm |
| AUXILIARY OUTPUT | |
| Outputs | 1 unbalanced |
| Connectors, Output | Stereo RCA |
| Output Impedance | 400 ohm |
| Nominal Output Level | 2 dBu |
| INDICATORS AND CONTROLS | |
| Power LED | Solid blue indicates power is on, blinking blue indicates standby mode |
| Input Signal Clip LED | Green indicates input signal is within - 37 dBu to 11 dBu, red indicates signal is over 11 dBu, master level set to 5 |
| Output Signal Clip LED | Green indicates output signal is within - 46 dBFS to - 2 dBFS, red indicates signal is over - 2 dBFS, approximately 80 W/channel, for each output 120 watts is 0 dBFS |
| Controls, Front Panel | Power On/Off, Input Select (A/B), Treble/Bass Tone Controls (x2), Master Level |

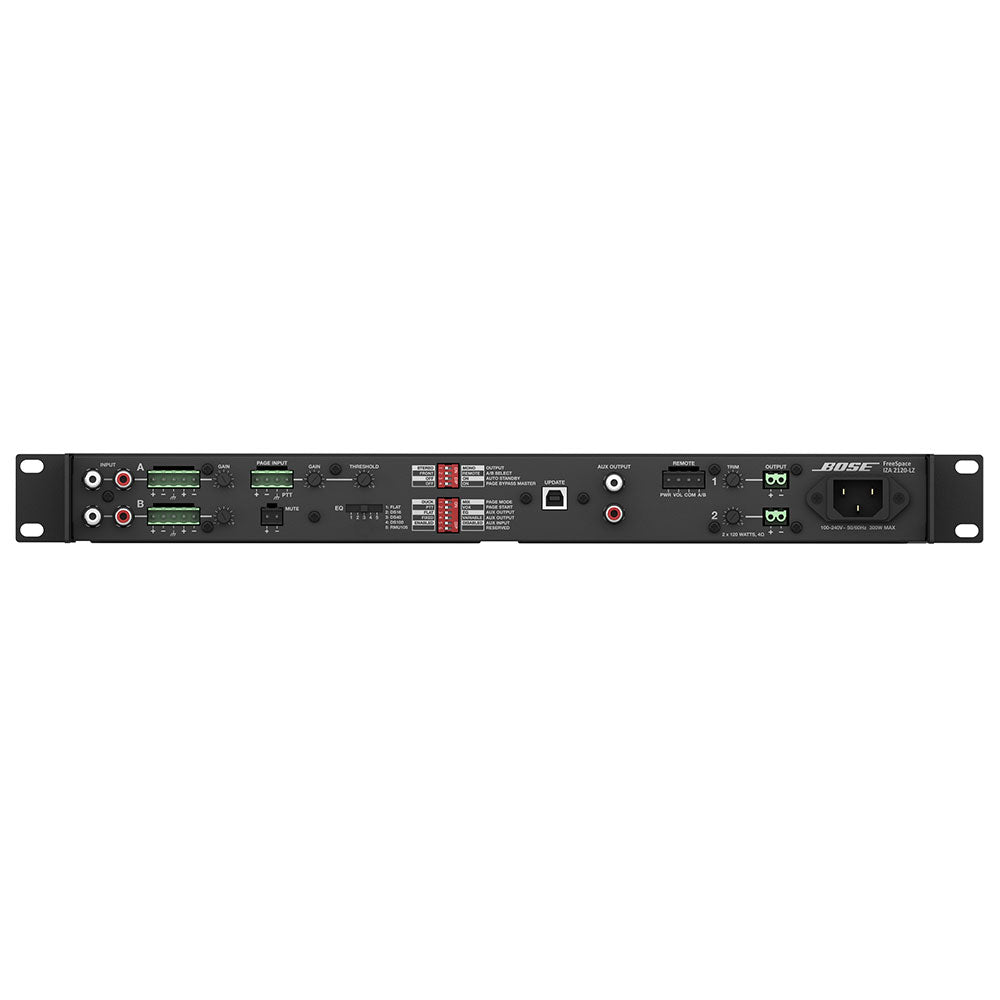

| Controls, Rear Panel | Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2) |
| ELECTRICAL | |
| Mains Voltage | 100 V AC - 240 V AC (+/- 10%, 50/60 Hz) |
| AC Power Consumption | 24 W (Standby) 300 W (Max) |
| Mains Connector | Standard IEC (C14) |
| Maximum Inrush Current | 12.6 Amps (230 VAC / 50 Hz), 6.6 Amps (120 VAC / 60 Hz) |
| Overload Protection | High temperature, output short, excessively low or high AC line voltage |
| PHYSICAL | |
| Rack Space Units | 1 RU |
| Dimensions | 1.7" H x 19.0" W x 12.8" D (44 mm x 483 mm x 324 mm) |
| Shipping Weight | 12.0 lb (5.4 kg) |
| Net Weight | 9.0 lb (4.1 kg) |
| Cooling System | Single fan creates continuous left-to-right air flow |
| GENERAL | |
| Inputs (Control) | Remote inputs for one or two, CC-1 or CC-2 or a 1 and 1 combination, ControlCenter zone controllers. Mute input control via contact closure (normally open) |
