Bose FreeSpace IZA 250-HZ Integrated Zone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose FreeSpace IZA 250-HZ Integrated Zone Amplifier
Sale price$529.95
Regular price$636.00
Description
For background/foreground music and paging applications, the Bose® FreeSpace® IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace FS2 and FS4 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.
Features:
- Amplification for premium sound from a reliable, high quality Class-D amplifier provides optimized performance and premium sound quality through the use of internal digital signal processing
- Installation made simple with set up done locally from the front and rear panels of the amplifier - no computer is required
- Opti-voice® paging provides smooth automatic transition between the music and page signals
- End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources. Optional wall mountable Bose Volume control with A/B switch user interface allows volume and source selection controls to be placed away from the amplifier for user convenience
- Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way - on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
Applications:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
| POWER RATING | |
| Amplifier Power | 1 x 90 W @ 70/100 V |
| AUDIO PERFORMANCE | |
| Frequency Response | 60 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz) |
| THD+N | ?1 % (at full rated power) |
| Channel Separation (Crosstalk) | ?-60 dBV (below rated power, 1 kHz) |
| Dynamic Range | 88 dB |
| INTEGRATED DSP | |
| A/D and D/A Converters | 24-bit / 48 kHz |
| Processing Functions | Loudspeaker EQ, Bose Opti-voice paging, Dynamic equalization |
| Loudspeaker Presets | FreeSpace FS2 and FS4 loudspeakers, High-Pass Filter (HPF) |
| Audio Latency | 10.4 ms - (any input to speaker output or aux output) |
| AUDIO INPUTS | |
| LINE INPUTS | |
| Input Channels | 2 unbalanced line |
| Connectors | Stereo RCA |
| Input Range | -10 dBV - +10 dBV |
| Adjustment Range | -20 dB - +20 dB |
| Input Impedance | 20 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | N/A |
| Nominal Input Level | 0 dBV |
| MIC/LINE INPUTS | |
| Input Channels | 1 balanced mic/line |
| Connectors | Combo XLR - 1/4" |
| Input Range | -60 dBV - +10 dBV |
| Adjustment Range | 0 dB - +50 dB |
| Input Impedance | 2 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | N/A |
| Nominal Input Level | -40 dBV |
| PAGE INPUTS | |
| Input Channels | 1 Balanced mic |
| Connectors | 4-pin Euroblock |
| Input Range | -60 dBV - +10 dBV |
| Adjustment Range | 0 dB - +50 dB |
| Input Impedance | 2 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | N/A |
| Nominal Input Level | -40 dBV |
| AUXILIARY INPUT | |
| Input Channels | 1 unbalanced line |
| Connectors | 3.5mm (1/8") TRS |
| Input Range | 0 dBV - +10 dBV |
| Adjustment Range | Fixed |
| Input Impedance | 20 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | 0 dBV |
| Nominal Input Level | 0 dBV |
| AUDIO OUTPUTS | |
| AMPLIFIER OUTPUTS | |
| Outputs | 1 |
| Connectors, Output | 3-pin inverted Euroblock |
| Output Impedance | N/A |
| Nominal Output Level | 1 x 90 W @ 70/100 V |
| AUXILIARY OUTPUT | |
| Outputs | 1 unbalanced |
| Connectors, Output | Stereo RCA |
| Output Impedance | 400 ohm |
| Nominal Output Level | 1 x 90 W @ 70/100 V 0 dBV (max) |
| INDICATORS AND CONTROLS | |
| LED Status Indicators | Power - blue, Input clip - red (-3 dBFS) |
| Controls, Front Panel | Power On/Off, Input Select (A/B), Tone Controls (Treble/Bass), Mic/Line Gain, Master Level |

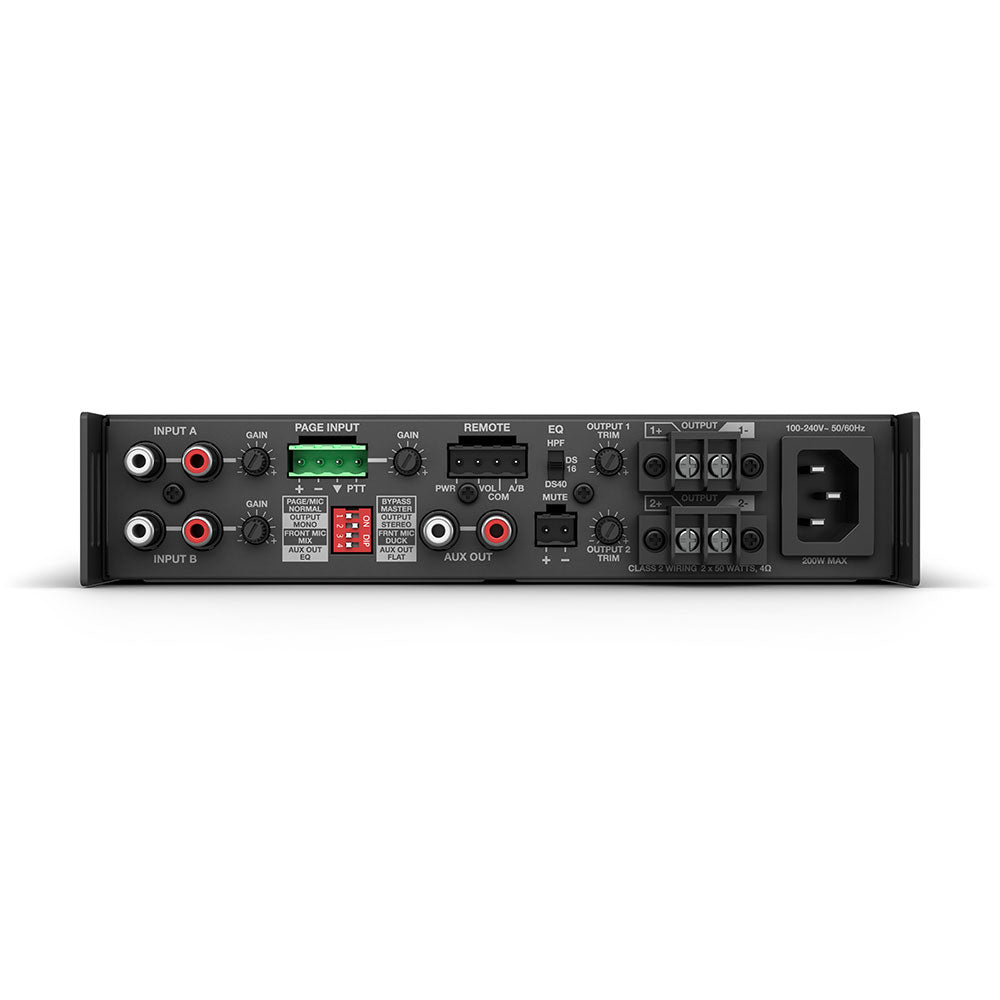

| Controls, Rear Panel | Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim |
| ELECTRICAL | |
| Mains Voltage | 100 V AC - 240 V AC (+/- 10%, 50/60 Hz) |
| AC Power Consumption | 15 W (Idle), 200 W (Max) |
| Mains Connector | Standard IEC (C14) |
| Maximum Inrush Current | 13.9 Amps (230 V / 50 Hz), 7.6 Amps (120 V / 60 Hz) |
| Overload Protection | High temperature, short |
| PHYSICAL | |
| Rack Space Units | 1 RU high, half rack wide |
| Dimensions | 45 mm x 214 mm x 310 mm D (1.8" H x 8.4" W x 12.2") |
| Shipping Weight | 4.1 kg (9.0 lb) |
| Net Weight | 3.2 kg (7.0 lb) |
| Cooling System | Natural convection |
| GENERAL | |
| Inputs (Control) | Remote input for CC-1 volume control (operates with a fixed input B) or CC-2 volume control with A/B source select user interface, Mute input for amplifier muting via contact closure |
For background/foreground music and paging applications, the Bose® FreeSpace® IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace FS2 and FS4 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.
Features:
- Amplification for premium sound from a reliable, high quality Class-D amplifier provides optimized performance and premium sound quality through the use of internal digital signal processing
- Installation made simple with set up done locally from the front and rear panels of the amplifier - no computer is required
- Opti-voice® paging provides smooth automatic transition between the music and page signals
- End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources. Optional wall mountable Bose Volume control with A/B switch user interface allows volume and source selection controls to be placed away from the amplifier for user convenience
- Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way - on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
Applications:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
| POWER RATING | |
| Amplifier Power | 1 x 90 W @ 70/100 V |
| AUDIO PERFORMANCE | |
| Frequency Response | 60 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz) |
| THD+N | ?1 % (at full rated power) |
| Channel Separation (Crosstalk) | ?-60 dBV (below rated power, 1 kHz) |
| Dynamic Range | 88 dB |
| INTEGRATED DSP | |
| A/D and D/A Converters | 24-bit / 48 kHz |
| Processing Functions | Loudspeaker EQ, Bose Opti-voice paging, Dynamic equalization |
| Loudspeaker Presets | FreeSpace FS2 and FS4 loudspeakers, High-Pass Filter (HPF) |
| Audio Latency | 10.4 ms - (any input to speaker output or aux output) |
| AUDIO INPUTS | |
| LINE INPUTS | |
| Input Channels | 2 unbalanced line |
| Connectors | Stereo RCA |
| Input Range | -10 dBV - +10 dBV |
| Adjustment Range | -20 dB - +20 dB |
| Input Impedance | 20 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | N/A |
| Nominal Input Level | 0 dBV |
| MIC/LINE INPUTS | |
| Input Channels | 1 balanced mic/line |
| Connectors | Combo XLR - 1/4" |
| Input Range | -60 dBV - +10 dBV |
| Adjustment Range | 0 dB - +50 dB |
| Input Impedance | 2 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | N/A |
| Nominal Input Level | -40 dBV |
| PAGE INPUTS | |
| Input Channels | 1 Balanced mic |
| Connectors | 4-pin Euroblock |
| Input Range | -60 dBV - +10 dBV |
| Adjustment Range | 0 dB - +50 dB |
| Input Impedance | 2 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | N/A |
| Nominal Input Level | -40 dBV |
| AUXILIARY INPUT | |
| Input Channels | 1 unbalanced line |
| Connectors | 3.5mm (1/8") TRS |
| Input Range | 0 dBV - +10 dBV |
| Adjustment Range | Fixed |
| Input Impedance | 20 kohm |
| Maximum Input Level | +10 dBV |
| Sensitivity | 0 dBV |
| Nominal Input Level | 0 dBV |
| AUDIO OUTPUTS | |
| AMPLIFIER OUTPUTS | |
| Outputs | 1 |
| Connectors, Output | 3-pin inverted Euroblock |
| Output Impedance | N/A |
| Nominal Output Level | 1 x 90 W @ 70/100 V |
| AUXILIARY OUTPUT | |
| Outputs | 1 unbalanced |
| Connectors, Output | Stereo RCA |
| Output Impedance | 400 ohm |
| Nominal Output Level | 1 x 90 W @ 70/100 V 0 dBV (max) |
| INDICATORS AND CONTROLS | |
| LED Status Indicators | Power - blue, Input clip - red (-3 dBFS) |
| Controls, Front Panel | Power On/Off, Input Select (A/B), Tone Controls (Treble/Bass), Mic/Line Gain, Master Level |
| Controls, Rear Panel | Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim |
| ELECTRICAL | |
| Mains Voltage | 100 V AC - 240 V AC (+/- 10%, 50/60 Hz) |
| AC Power Consumption | 15 W (Idle), 200 W (Max) |
| Mains Connector | Standard IEC (C14) |
| Maximum Inrush Current | 13.9 Amps (230 V / 50 Hz), 7.6 Amps (120 V / 60 Hz) |
| Overload Protection | High temperature, short |
| PHYSICAL | |
| Rack Space Units | 1 RU high, half rack wide |
| Dimensions | 45 mm x 214 mm x 310 mm D (1.8" H x 8.4" W x 12.2") |
| Shipping Weight | 4.1 kg (9.0 lb) |
| Net Weight | 3.2 kg (7.0 lb) |
| Cooling System | Natural convection |
| GENERAL | |
| Inputs (Control) | Remote input for CC-1 volume control (operates with a fixed input B) or CC-2 volume control with A/B source select user interface, Mute input for amplifier muting via contact closure |
