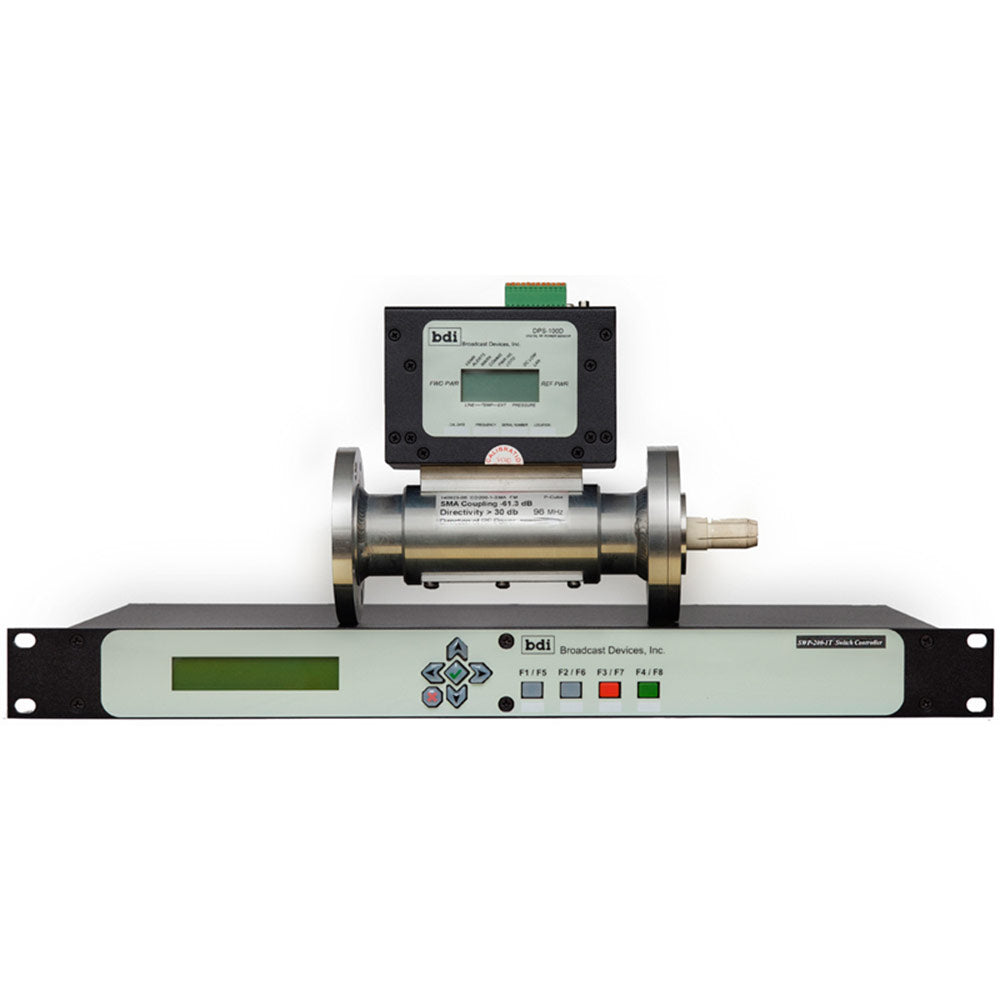

Broadcast Devices SWP-200 Digital RF Power Meter/Switch Controller 2-4 Port Switch +7/8EIA Coupler


  • Dale #:

    BRDE-SWP2002R178
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with i... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with interface cables for most four port switches made. The SWP-200 provides one-button control of four port switches, manages interlock closures and transmitter control in a single rack unit chassis. Optional features include RF failure and RF safety sensing to protect a switch from damage if RF is present and a switch command is called for. The SWP-200 can operate in hands-off, pre-programmed mode, or in manually controlled mode. The SWP-200 also can be used in AM radio applications to control multiple open frame contactors. This is a versatile RF support product that provides around-the-clock peace of mind!

Features:

  • A modern approach to RF switch control in a compact 1 RU chassis form factor
  • Easily integrates with up to 2 - BDI DPS-100D RF power meters using Ethernet cable for a complete intelligent RF switch controller with proprietary 3 strike counter
  • Management/Control of up to 2 - four port switches and interlocks
  • Automatic transmitter changeover sensing loss of RF power
  • 1 switch and 2 switch controller models available
  • Compatible with all major manufacturers RF transfer switches
  • RF power display for up to 2 DPS-100D RF power meters
  • Built in LAN Port Provides Remote Control Via Free BDI GUI Software SNMPv2 Agent
  • Optional RF Switch Cables available for most manufacturers RF switches

The SWP-200 is a stand alone 1RU RF switch controller which can control most brands of motorized RF switches. In addition the SWP-200 manages transmitter interlocks and simplifies the connection of interlock paths. When installed as a system together with a BDI DPS-100D power meter, The SWP-200 provides complete Hot Switch protection by preventing the movement of a switch if RF is present. The SWP-200 also doubles as a rack mounted RF power display for up to 2 - DPS-100D Sensors. Acts as an SNMPv2 agent for quick interface to SNMP based remote control systems and software.

More +

Product Specs

Modes SupportedTX1/TX2 select to Air-SWP-200-1T, ANT1/ANT2 select
TX1/TX2 select to Air-SWP-200-2T
Number of Switches SupportedSWP-200-1T-1, SWP-200-2T-2
Switch Control Voltage12 or 24 VDC
Switch Manufactures supportedDasto, Delta, Dielectric, DowKey, ERI, MCI, Myat, Spinner
Transmitter and Interlock ControlBoth models control up to two transmitters providing TX ON/OFF and Interlock Management
Transmitter InterfaceForm C dry contact relays
Remote Control interface SWP-200-1TGeneral Purpose I/O Control of Air Selected transmitter ON/OFF
Motorized Switch Position, Switch position of second switch-SWP-200-2T Model, Fault Reset*
Additional Remote Control interface functions for SWP-200-2TAntenna 1/2 Command/Status, Antenna Auto/Manual Command/Status,
Status AvailableMotorized Switch position, Fault Status, TX1,2 Interlock, Air Transmitter ON/OFF
AC Power Loss MonitorMonitors for presence of AC Power loss to transmitter(s) to prevent switch operation in auto mode if AC power is lost to transmitters
Logic input requires external circuitry
Power Measurement Range10 Watt to 100 KW Full Scale Indication*
Power Measurement Accuracy+/-5% of Reading-Dynamic Range 40 below Full Scale Indication*
Communications InterfaceRS232/485, TCP/IP- Ethernet TCP/IP, SNMPv2 Agent and BDI Graphical User Interface Compatible with Windows XP, 7, 8, 10, Android
Physical Dimensions19" W X 10" D X 1.75" H-EIA Standard 1 Rack Unit
Electrical Requirements100-240 VAC 50/60 Hertz @ 0.5 ampere
Environmental0-60 degrees C, non condensing atmosphere

* SWP-2001/2R1-1T/2T versions which include DPS-100D Power Meter/Line Section. Maximum Power Measurement is line size dependent. See ordering information for models available.
