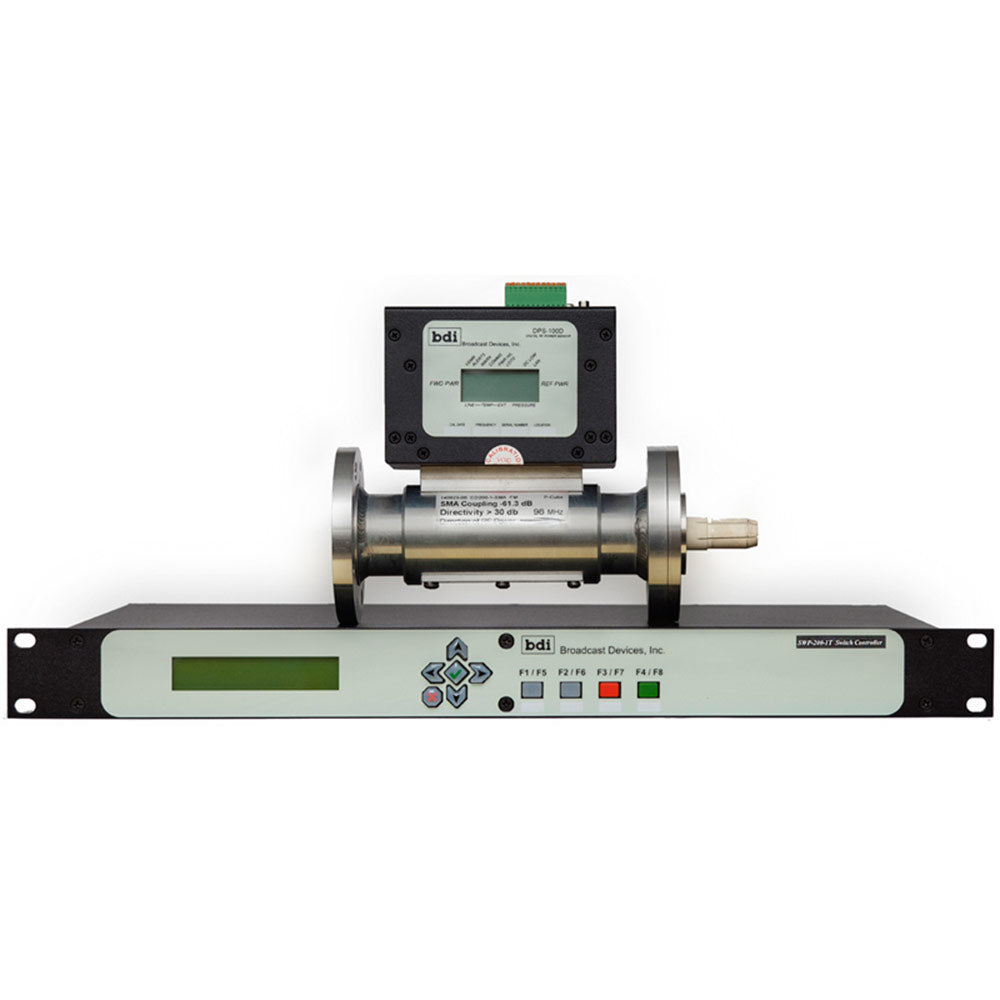

Broadcast Devices SWP-200 Digital RF Power Meter/Switch Controller w/1-Switch +2- 8-3/16" Couplers
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with interface cables for most four port switches made. The SWP-200 provides one-button control of four port switches, manages interlock closures and transmitter control in a single rack unit chassis. Optional features include RF failure and RF safety sensing to protect a switch from damage if RF is present and a switch command is called for. The SWP-200 can operate in hands-off, pre-programmed mode, or in manually controlled mode. The SWP-200 also can be used in AM radio applications to control multiple open frame contactors. This is a versatile RF support product that provides around-the-clock peace of mind!
Features:
- A modern approach to RF switch control in a compact 1 RU chassis form factor
- Easily integrates with up to 2 - BDI DPS-100D RF power meters using Ethernet cable for a complete intelligent RF switch controller with proprietary 3 strike counter
- Management/Control of up to 2 - four port switches and interlocks
- Automatic transmitter changeover sensing loss of RF power
- 1 switch and 2 switch controller models available
- Compatible with all major manufacturers RF transfer switches
- RF power display for up to 2 DPS-100D RF power meters
- Built in LAN Port Provides Remote Control Via Free BDI GUI Software SNMPv2 Agent
- Optional RF Switch Cables available for most manufacturers RF switches
The SWP-200 is a stand alone 1RU RF switch controller which can control most brands of motorized RF switches. In addition the SWP-200 manages transmitter interlocks and simplifies the connection of interlock paths. When installed as a system together with a BDI DPS-100D power meter, The SWP-200 provides complete Hot Switch protection by preventing the movement of a switch if RF is present. The SWP-200 also doubles as a rack mounted RF power display for up to 2 - DPS-100D Sensors. Acts as an SNMPv2 agent for quick interface to SNMP based remote control systems and software.
| Modes Supported | TX1/TX2 select to Air-SWP-200-1T, ANT1/ANT2 select TX1/TX2 select to Air-SWP-200-2T |
| Number of Switches Supported | SWP-200-1T-1, SWP-200-2T-2 |
| Switch Control Voltage | 12 or 24 VDC |
| Switch Manufactures supported | Dasto, Delta, Dielectric, DowKey, ERI, MCI, Myat, Spinner |
| Transmitter and Interlock Control | Both models control up to two transmitters providing TX ON/OFF and Interlock Management |
| Transmitter Interface | Form C dry contact relays |
| Remote Control interface SWP-200-1T | General Purpose I/O Control of Air Selected transmitter ON/OFF Motorized Switch Position, Switch position of second switch-SWP-200-2T Model, Fault Reset* |
| Additional Remote Control interface functions for SWP-200-2T | Antenna 1/2 Command/Status, Antenna Auto/Manual Command/Status, |
| Status Available | Motorized Switch position, Fault Status, TX1,2 Interlock, Air Transmitter ON/OFF |
| AC Power Loss Monitor | Monitors for presence of AC Power loss to transmitter(s) to prevent switch operation in auto mode if AC power is lost to transmitters Logic input requires external circuitry |
| Power Measurement Range | 10 Watt to 100 KW Full Scale Indication* |
| Power Measurement Accuracy | +/-5% of Reading-Dynamic Range 40 below Full Scale Indication* |
| Communications Interface | RS232/485, TCP/IP- Ethernet TCP/IP, SNMPv2 Agent and BDI Graphical User Interface Compatible with Windows XP, 7, 8, 10, Android |
| Physical Dimensions | 19" W X 10" D X 1.75" H-EIA Standard 1 Rack Unit |
| Electrical Requirements | 100-240 VAC 50/60 Hertz @ 0.5 ampere |
| Environmental | 0-60 degrees C, non condensing atmosphere |
* SWP-2001/2R1-1T/2T versions which include DPS-100D Power Meter/Line Section. Maximum Power Measurement is line size dependent. See ordering information for models available.
The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with interface cables for most four port switches made. The SWP-200 provides one-button control of four port switches, manages interlock closures and transmitter control in a single rack unit chassis. Optional features include RF failure and RF safety sensing to protect a switch from damage if RF is present and a switch command is called for. The SWP-200 can operate in hands-off, pre-programmed mode, or in manually controlled mode. The SWP-200 also can be used in AM radio applications to control multiple open frame contactors. This is a versatile RF support product that provides around-the-clock peace of mind!
Features:
- A modern approach to RF switch control in a compact 1 RU chassis form factor
- Easily integrates with up to 2 - BDI DPS-100D RF power meters using Ethernet cable for a complete intelligent RF switch controller with proprietary 3 strike counter
- Management/Control of up to 2 - four port switches and interlocks
- Automatic transmitter changeover sensing loss of RF power
- 1 switch and 2 switch controller models available
- Compatible with all major manufacturers RF transfer switches
- RF power display for up to 2 DPS-100D RF power meters
- Built in LAN Port Provides Remote Control Via Free BDI GUI Software SNMPv2 Agent
- Optional RF Switch Cables available for most manufacturers RF switches
The SWP-200 is a stand alone 1RU RF switch controller which can control most brands of motorized RF switches. In addition the SWP-200 manages transmitter interlocks and simplifies the connection of interlock paths. When installed as a system together with a BDI DPS-100D power meter, The SWP-200 provides complete Hot Switch protection by preventing the movement of a switch if RF is present. The SWP-200 also doubles as a rack mounted RF power display for up to 2 - DPS-100D Sensors. Acts as an SNMPv2 agent for quick interface to SNMP based remote control systems and software.
| Modes Supported | TX1/TX2 select to Air-SWP-200-1T, ANT1/ANT2 select TX1/TX2 select to Air-SWP-200-2T |
| Number of Switches Supported | SWP-200-1T-1, SWP-200-2T-2 |
| Switch Control Voltage | 12 or 24 VDC |
| Switch Manufactures supported | Dasto, Delta, Dielectric, DowKey, ERI, MCI, Myat, Spinner |
| Transmitter and Interlock Control | Both models control up to two transmitters providing TX ON/OFF and Interlock Management |
| Transmitter Interface | Form C dry contact relays |
| Remote Control interface SWP-200-1T | General Purpose I/O Control of Air Selected transmitter ON/OFF Motorized Switch Position, Switch position of second switch-SWP-200-2T Model, Fault Reset* |
| Additional Remote Control interface functions for SWP-200-2T | Antenna 1/2 Command/Status, Antenna Auto/Manual Command/Status, |
| Status Available | Motorized Switch position, Fault Status, TX1,2 Interlock, Air Transmitter ON/OFF |
| AC Power Loss Monitor | Monitors for presence of AC Power loss to transmitter(s) to prevent switch operation in auto mode if AC power is lost to transmitters Logic input requires external circuitry |
| Power Measurement Range | 10 Watt to 100 KW Full Scale Indication* |
| Power Measurement Accuracy | +/-5% of Reading-Dynamic Range 40 below Full Scale Indication* |
| Communications Interface | RS232/485, TCP/IP- Ethernet TCP/IP, SNMPv2 Agent and BDI Graphical User Interface Compatible with Windows XP, 7, 8, 10, Android |
| Physical Dimensions | 19" W X 10" D X 1.75" H-EIA Standard 1 Rack Unit |
| Electrical Requirements | 100-240 VAC 50/60 Hertz @ 0.5 ampere |
| Environmental | 0-60 degrees C, non condensing atmosphere |
* SWP-2001/2R1-1T/2T versions which include DPS-100D Power Meter/Line Section. Maximum Power Measurement is line size dependent. See ordering information for models available.
