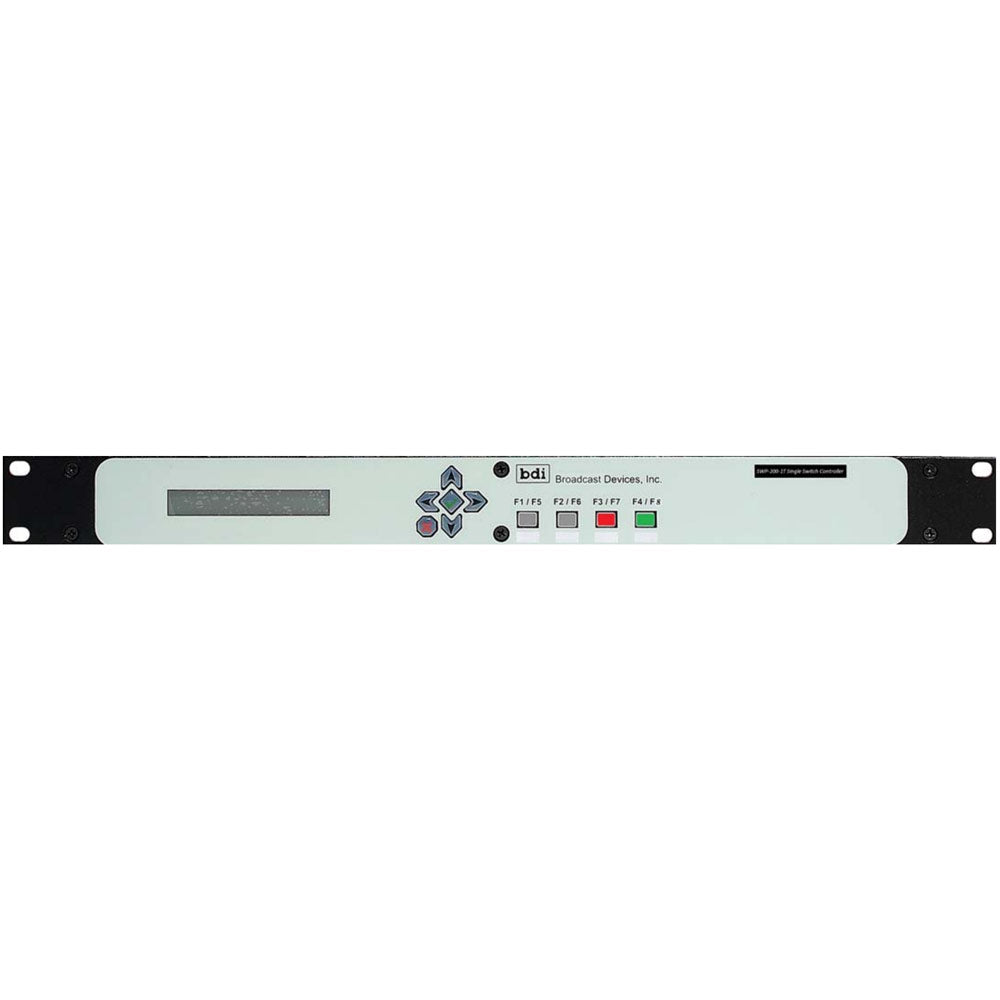

Broadcast Devices SWP-300 Dual Switch Site Controller + 6-1/8" Coupler


  • Dale #:

    BRDE-SWP3002T2R1618
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Broadcast Devices, Inc. announces a new product for the RF site industry, the SWP-300 RF Site Controller. The SWP-300 RF Site Controller is designed to provide complete web-enabled remote control of an RF site. The system provides direct connection to motorized RF switches and to the company's po... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Broadcast Devices, Inc. announces a new product for the RF site industry, the SWP-300 RF Site Controller. The SWP-300 RF Site Controller is designed to provide complete web-enabled remote control of an RF site. The system provides direct connection to motorized RF switches and to the company's popular DPS-100D True RMS Power Meter series. Complete transmitter control and interlock management is provided by a single connector; 16 additional control outputs, 8 status inputs and 4 analog inputs are provided. When DPS-100D power meters are interconnected forward and reflected power, temperature and transmission line pressure are displayed without the need to scale or setup analog inputs for this purpose. A web interface is provided that is compatible with BDI's Stack Graphical User Interface. A simple setup program is supplied to label command buttons, status inputs and analog inputs. Accessories offered include pre-made motorized RF switch interface cable for direct plug and play connection to most RF switches offered.

The SWP-300-2 Series controls two - two position switch assemblies. - Optional RF sensors available for "Switch Saver"™ operations, auto switching upon power loss and VSWR 3 strike protection, VSWR detection for switch operation to a standby antenna. For two switch controllers connect SWITCH 1 rear panel connector to switch that will select transmitters and SWITCH 2 to the switch that will select antennas. Provides 8 relay outs with NC/C/NO, 8 solid state outputs, and 8 status inputs. Also provides local control of TX Off/On, TX select, TX Interlock Status, and fault reset/status, Auto/Manual Command/Status and 4 analog inputs for legacy equipment.

The SWP-300 Site Controller is a cost effective remote system for transmitter sites offering full sized remote capability in a compact package. What makes the SWP-300 so unique is that it is the only controller on the market with direct connection from 4 port switches AND the BDI DPS-100D True RMS power monitor series. Simple plug and play of all popular RF switches provides a hassle free installation. No more drudgery of interlock paths and steering. The SWP-300 does it all. In addition to these plug and play features the system also provides 16 command outputs - 8 form C relays and 8 solid state command outputs. There are 8 status inputs and we even provided 4 analog voltage inputs for legacy equipment. Control and monitor all functions via BDI's exclusive Stack console software for Windows and Android devices. The SWP-300 also supports Ethernet SNMPv2 as an SNMP agent.
The SWP-300 is designed specifically to address the most common RF site configuration - two transmitters switched to an output. Two models are available. The SWP-300-1T interfaces to one RF switch. The SWP-300-2T can handle two for Main/Alt. TX and Main/Alt. Antenna configurations. Automatic features are set up by simple menu changes. No macros to write or complicated configuration files to edit. Just simple selections at setup time. The SWP-300 series is part of a growing family of RF site support products from BDI.

Accessories Available for this Product:

  • SWP OPTION #3 25 foot Interface Cable for Dielectric 50000 Series Motorized RF Switch
  • SWP OPTION #4 25 foot Interface Cable for Dielectric 600000 Series Motorized RF Switch
  • SWP OPTION #5 25 foot Interface Cable for Electronics Research, Inc. Motorized RF Switch
  • SWP OPTION #6 25 foot Interface Cable for Micro Communications, Inc. Motorized Switch
  • SWP OPTION #7 25 foot Interface Cable for Myat, Inc. Motorized RF Switch
  • SWP OPTION #8 25 foot Interface Cable for Spinner GmBH Motorized Switch
  • SWP OPTION #9 25 foot Interface Cable for Delta Electronics Motorized Switch

Note: All above interface cables are terminated with proper connector for the respective switch connection on one end and a DB15 male connector on the other end for direct connection to BDI SWP Series controllers.

  • SWP OPTION # 14 DB25 to Terminal Strip Breakout Panel - Accommodates 3 DB 25 Connectors
  • SWP OPTION # 15 8 Lighted Pushbutton Panel for direct connection to J1/J5 to provide local breakout of control/status
  • DPS-100D Series True RMS RF Power Monitor - order by line size - SWP-300 accommodates up to 2 - DPS-100D Meters
  • TMP-100 Temperature Sensor - Must be used with DPS-100D series True RMS RF Power Monitor
  • PSW-100 Pressure Sensor - Must be used with DPS-100D series True RMS RF Power Monitor

More +

Product Specs

Independent Control Outputs16 total, 8 - Form C Relays individually configurable for momentary or maintained closure.
Relay contact rating2A. @ 120VAC/2A 24 VDC
8 - Solid State outputs individually configurable high or low output upon control activation.
Solid State output ratingOn current 500 mA Max. for low state output, 50 uA for high state output.
Open collector output 12 VDC available for pullup. CMOS/TTL Compatible
Independent Status Inputs8 - Solid State inputs configurable for High or Low input. High input impedance
3.00K ohms, Low input impedance
1.8 ohms, Internal pullup to 5 VDC. CMOS/TTL Compatible
Analog Voltage Inputs4 - single ended 0-5 VDC
Motorized Switch Interface1 or 2 model dependent. Interface provides A/B position control and receives A/B position status back.
Can source 12 - 24 VDC for control of switch. Optional switch interface cables for Delta, Dielectric, Dowkey, ERI, Myat, MCI, Spinner motorized switches available.
External Interlock Inputs2 load specific inputs per switch
AC Power Loss InputPrevents movement of RF switches in Automatic mode if power has been lost to transmitters
Dedicated Control Outputs2 - sets of TX ON/OFF command and Interlock control Form C relays for dedicated control of two transmitters.
1 - TX Fault Form C relay - closes when an optional BDI DPS- 100D power monitor is connected and indicates RF failure
1 - VSWR Fault Form C relay - closes when an optional DPS-100D power monitor is connected and indicates a high VSWR condition
Dedicated Status Inputs2 - TX On Status inputs for Main/Alt. transmitters, TX 1/TX 2 Selected to air - for use with motorized switches
Optional Input SensorsUp to 2 external temperature sensors connected to optional DPS- 100D power meters
Up to 2 - transmission line pressure sensors 0-15 PSI indication in 1 pound increments, requires the connection to a DPS-100D power sensor
Optional Power Meter Inputs Up to two DPS-100D power monitors showing direct indication of all parameters available on a DPS-100D power monitor including Forward/Reflected Power,
temperature, line pressure, 6 general purpose inputs from DPS-100D sensor inputs, external interlock and fault status
External Remote ControlParallel GPIO, Ethernet - SNMPv2 Agent
Electrical Requirements100-240 VAC 50-60 Hertz @ 2A. EIC Power Entry Cord
Physical Specifications19" W X 10" D X 1.75" H - Standard EIA Rack Enclosure Mount
Environmental Requirements0-55 degrees C non condensing atmosphere
Shipping Carton Dimensions/Weight22" L X 14" W X 7" H, 15 lbs.
