Broadcast Devices, Inc. announces a new product for the RF site industry, the SWP-300 RF Site Controller. The SWP-300 RF Site Controller is designed to provide complete web-enabled remote control of an RF site. The system provides direct connection to motorized RF switches and to the company's po... Read MoreOur Price: $3,354.00
Free Shipping (Continental US)
Suggested Accessories
Description

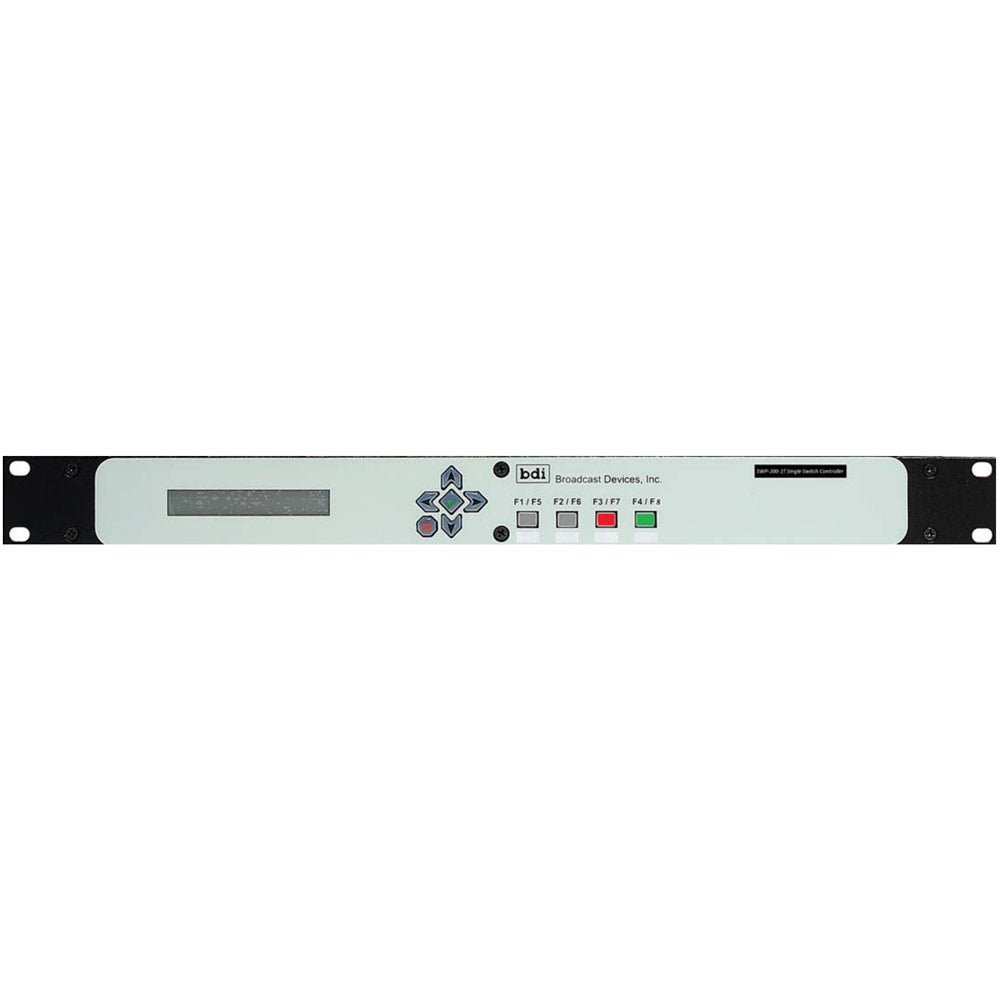

Broadcast Devices, Inc. announces a new product for the RF site industry, the SWP-300 RF Site Controller. The SWP-300 RF Site Controller is designed to provide complete web-enabled remote control of an RF site. The system provides direct connection to motorized RF switches and to the company's popular DPS-100D True RMS Power Meter series. Complete transmitter control and interlock management is provided by a single connector; 16 additional control outputs, 8 status inputs and 4 analog inputs are provided. When DPS-100D power meters are interconnected forward and reflected power, temperature and transmission line pressure are displayed without the need to scale or setup analog inputs for this purpose. A web interface is provided that is compatible with BDI's Stack Graphical User Interface. A simple setup program is supplied to label command buttons, status inputs and analog inputs. Accessories offered include pre-made motorized RF switch interface cable for direct plug and play connection to most RF switches offered.
The SWP-300-1 Series controls one - two position switch assembly. Basic single switch controller/site controller for controlling up to two transmitters connected to up to two loads, typically an antenna and dummy load. - Optional RF sensors available for "Switch Saver"™ operations, auto switching upon power loss and VSWR 3 strike protection. Provides 8 relay outs with NC/C/NO, 8 solid state outputs, and 8 status inputs. Also provides local control of TX Off/On, TX select, TX Interlock Status, and fault reset/status, Auto/Manual Command/Status and 4 analog inputs for legacy equipment.
The SWP-300 Site Controller is a cost effective remote system for transmitter sites offering full sized remote capability in a compact package. What makes the SWP-300 so unique is that it is the only controller on the market with direct connection from 4 port switches AND the BDI DPS-100D True RMS power monitor series. Simple plug and play of all popular RF switches provides a hassle free installation. No more drudgery of interlock paths and steering. The SWP-300 does it all. In addition to these plug and play features the system also provides 16 command outputs - 8 form C relays and 8 solid state command outputs. There are 8 status inputs and we even provided 4 analog voltage inputs for legacy equipment. Control and monitor all functions via BDI's exclusive Stack console software for Windows and Android devices. The SWP-300 also supports Ethernet SNMPv2 as an SNMP agent.
The SWP-300 is designed specifically to address the most common RF site configuration - two transmitters switched to an output. Two models are available. The SWP-300-1T interfaces to one RF switch. The SWP-300-2T can handle two for Main/Alt. TX and Main/Alt. Antenna configurations. Automatic features are set up by simple menu changes. No macros to write or complicated configuration files to edit. Just simple selections at setup time. The SWP-300 series is part of a growing family of RF site support products from BDI.
Accessories Available for this Product:
Note: All above interface cables are terminated with proper connector for the respective switch connection on one end and a DB15 male connector on the other end for direct connection to BDI SWP Series controllers.
More +
Product Specs
Independent Control Outputs | 16 total, 8 - Form C Relays individually configurable for momentary or maintained closure. |
Relay contact rating | 2A. @ 120VAC/2A 24 VDC 8 - Solid State outputs individually configurable high or low output upon control activation. |
Solid State output rating | On current 500 mA Max. for low state output, 50 uA for high state output. Open collector output 12 VDC available for pullup. CMOS/TTL Compatible |
Independent Status Inputs | 8 - Solid State inputs configurable for High or Low input. High input impedance 3.00K ohms, Low input impedance 1.8 ohms, Internal pullup to 5 VDC. CMOS/TTL Compatible |
Analog Voltage Inputs | 4 - single ended 0-5 VDC |
Motorized Switch Interface | 1 or 2 model dependent. Interface provides A/B position control and receives A/B position status back. Can source 12 - 24 VDC for control of switch. Optional switch interface cables for Delta, Dielectric, Dowkey, ERI, Myat, MCI, Spinner motorized switches available. |
External Interlock Inputs | 2 load specific inputs per switch |
AC Power Loss Input | Prevents movement of RF switches in Automatic mode if power has been lost to transmitters |
Dedicated Control Outputs | 2 - sets of TX ON/OFF command and Interlock control Form C relays for dedicated control of two transmitters. 1 - TX Fault Form C relay - closes when an optional BDI DPS- 100D power monitor is connected and indicates RF failure 1 - VSWR Fault Form C relay - closes when an optional DPS-100D power monitor is connected and indicates a high VSWR condition |
Dedicated Status Inputs | 2 - TX On Status inputs for Main/Alt. transmitters, TX 1/TX 2 Selected to air - for use with motorized switches |
Optional Input Sensors | Up to 2 external temperature sensors connected to optional DPS- 100D power meters Up to 2 - transmission line pressure sensors 0-15 PSI indication in 1 pound increments, requires the connection to a DPS-100D power sensor |
Optional Power Meter Inputs | Up to two DPS-100D power monitors showing direct indication of all parameters available on a DPS-100D power monitor including Forward/Reflected Power, temperature, line pressure, 6 general purpose inputs from DPS-100D sensor inputs, external interlock and fault status |
External Remote Control | Parallel GPIO, Ethernet - SNMPv2 Agent |
Electrical Requirements | 100-240 VAC 50-60 Hertz @ 2A. EIC Power Entry Cord |
Physical Specifications | 19" W X 10" D X 1.75" H - Standard EIA Rack Enclosure Mount |
Environmental Requirements | 0-55 degrees C non condensing atmosphere |
Shipping Carton Dimensions/Weight | 22" L X 14" W X 7" H, 15 lbs. |
More +
