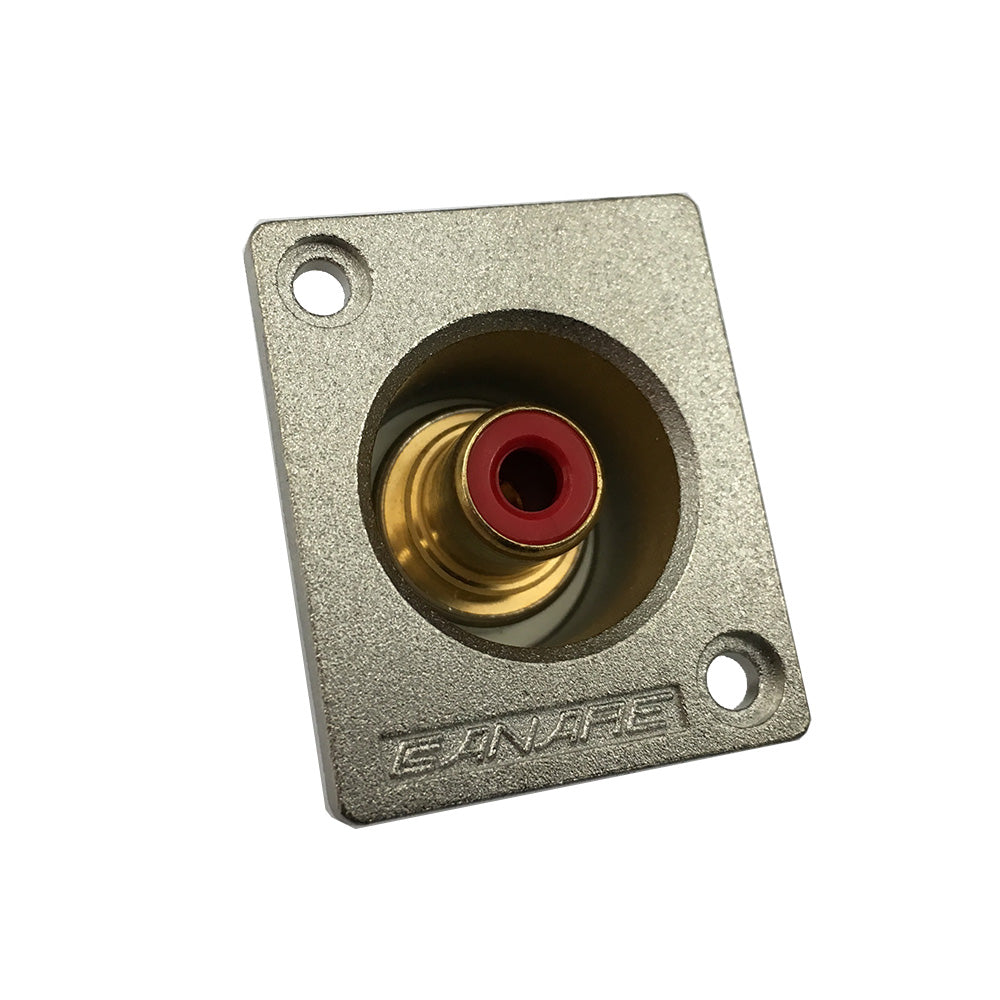

Canare RJ-BCJRU RCA to BNC Receptacle (ITT XLR-F77/Red)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:CANA-RJBCJRURED

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (orders over $30)
  • RCA (red) to BNC jack to jack adaptor, ITT XLR-F77 size.

    Features:

    • WR 1.1 @ 2GHz (Panel Jack: 1.1 @ 1GHz).
    • Gold plated beryllium copper contact.
    • Flush-Mount receptacle prevents damage on the jack.
  • 75 Ohm BNC JACK NOMINAL SPECIFICATIONS


    Bandwidth
    VSWR Return Loss DC-2GHz
    <1.1
    >26dB
    Center Contact Material Plating Beryllium Copper Gold
    Body/ Material Plating Brass
    Nickel
    Dielectric PTFE
    Flange Material Plating DieCast AL Nickel
    Insulation Resistance at 500V DC >1000 MegaOhms
    Voltage Rating for 1 Minute 1500V AC(rms)
    Center Contact Resistance <6 miliOhms
    Outer Contact Resistance <3 miliOhms
    75 Ohm F JACK NOMINAL SPECIFICATIONS
    Bandwidth
    VSWR Return Loss DC-2GHz
    <1.1
    >26dB
    Center Contact Material Plating Beryllium Copper Gold
    Body/ Material Plating Brass
    Nickel
    Dielectric PTFE
    Flange Material Plating DieCast AL Nickel
    Insulation Resistance at 500V DC >500 MegaOhms
    Voltage Rating for 1 Minute 500V AC(rms)
    Center Contact Resistance <5 miliOhms
    Outer Contact Resistance <5 miliOhms
    75 Ohm RCA JACK NOMINAL SPECIFICATIONS
    Bandwidth
    VSWR Return Loss DC-100MHz
    <1.1
    >26dB
    Center Contact Material Beryllium Copper Gold
    Plating Body/ Material Plating Brass
    Nickel
    Dielectric PTFE
    Flange Material Plating DieCast AL Nickel
    Insulation Resistance at 500V DC >100 MegaOhms
    Voltage Rating for 1 Minute 500V AC(rms)
    Center Contact Resistance <10 miliOhms
