DALE SKU # CEDA-SE1

CEDAR Audio SE 1 Speech Enhancer for Field Recording

Sale price$3,379.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Police, security and counter-terrorism forces require covert audio surveillance systems that are rugged while remaining as small and light as possible. They must be simple to operate and able to run on batteries as well as mains power so that they can (literally) be used in the field when necessary. Designed following consultation with numerous forces and agencies, the CEDAR SE 1 Speech Enhancer satisfies all of these criteria.

    It offers two channels of advanced filtering and speech enhancement in a small device that sits immediately between the probes (microphones) and the headphones. It offers minimal latency and the simplest possible controls, and has a 12V power input that allows it to run on mains or battery power, all of which make it ideal for covert surveillance and rapid tactical response.

    So why not apply these same critical technologies to your field recording? Capture more post-ready dialog on film and TV shoots, saving costly time in processing and/or ADR. Get better speech intelligibility for live-to-air broadcasts. The benefits are endless!

    Features:

    • A unique speech enhancement process

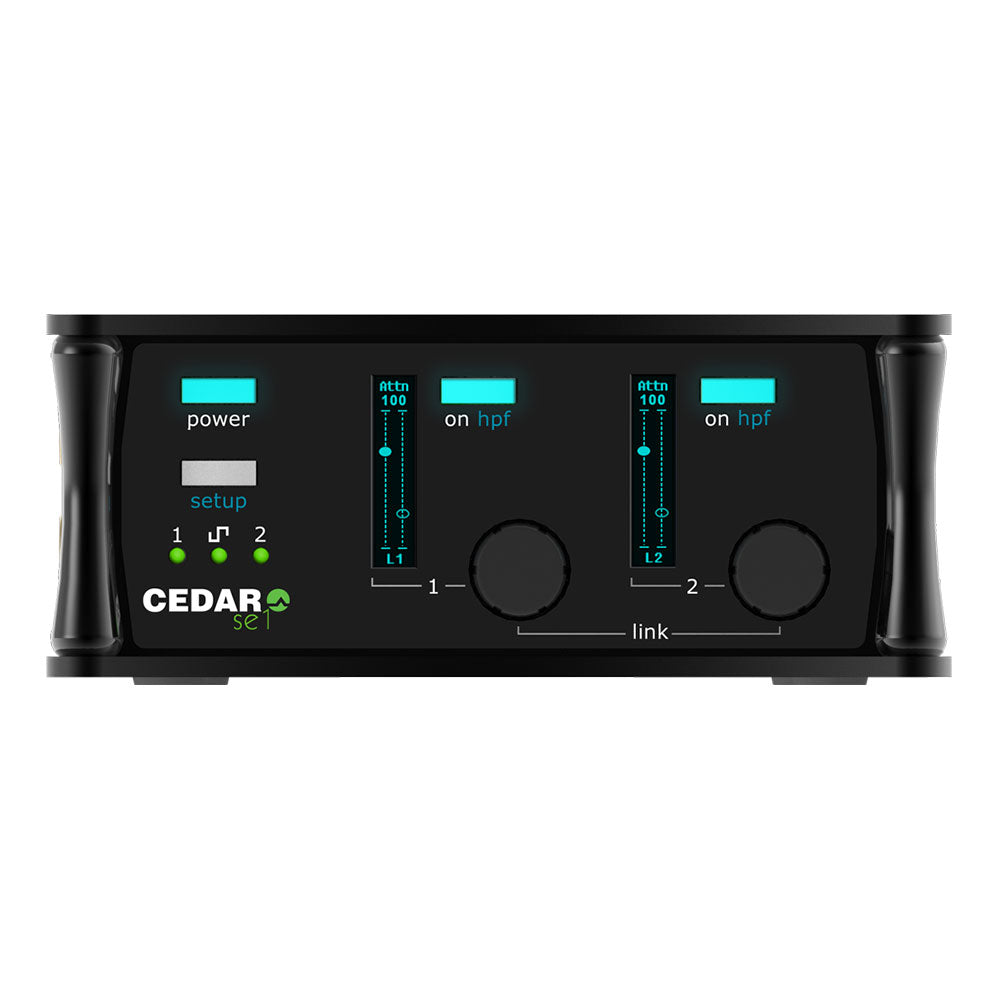

    • Super-fast setup and control
    • Small, light and portable

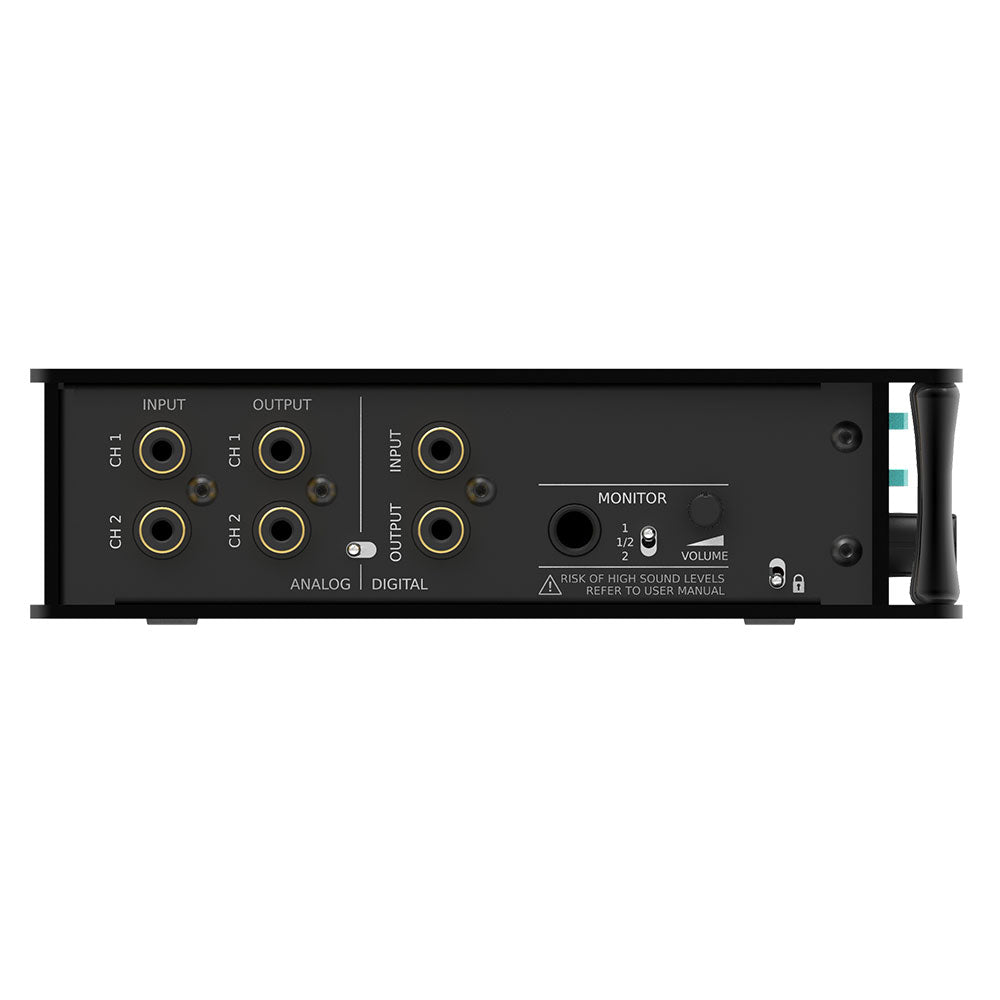

    • Analogue and digital I/O
    • Dual independent headphones outputs
    • 12V power

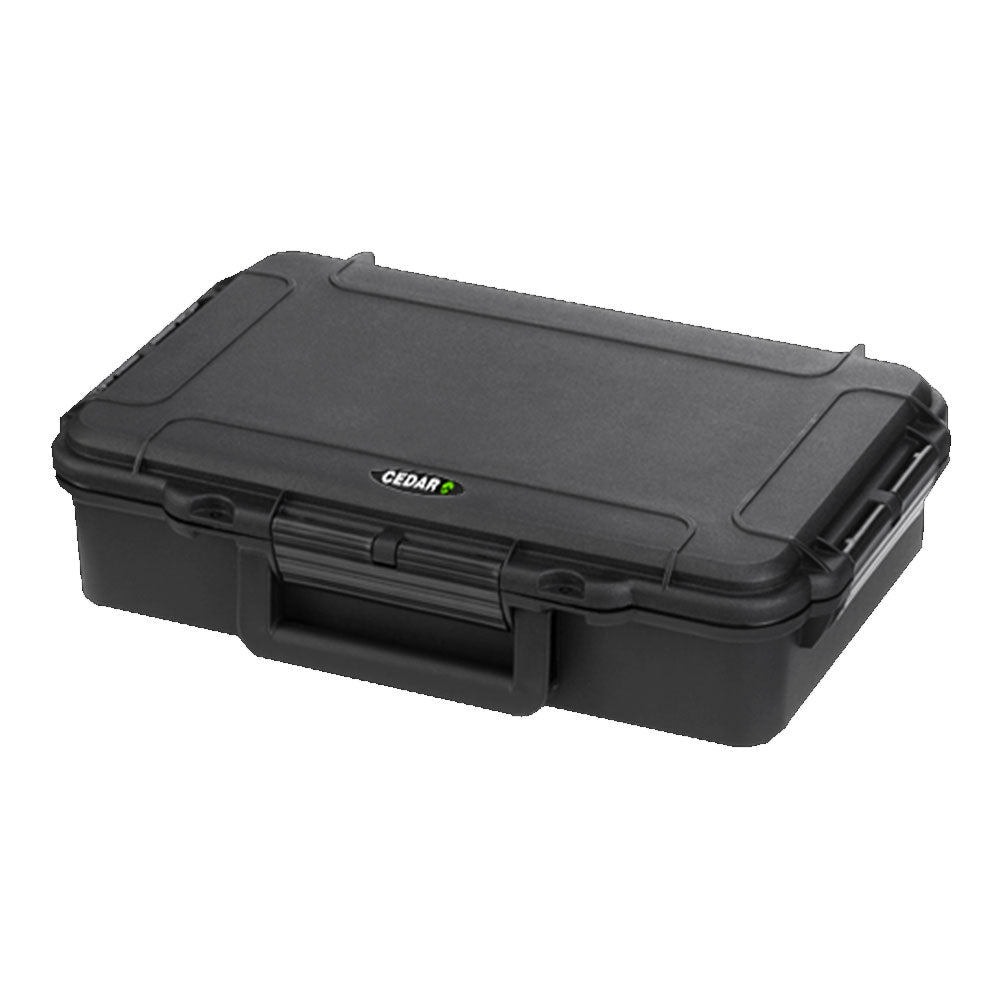

    Supplied in its own rugged case, the SE 1 itself is small enough to fit into your pocket, yet its advanced audio processing capabilities allow field operatives to monitor audio, reduce noise and improve the listenability of audio captured in adverse conditions. It's flexible too. The SE 1 integrates easily with other equipment using either analogue or digital inputs and outputs, and incorporates two independent headphone outputs for live monitoring directly from the unit itself. You can use a single SE 1 to monitor two microphones in a single location, or two listeners can monitor single microphones in separate locations, or you can take the input from a single source and create two output signals - the untreated audio and the filtered audio - so that courts and investigators can hear both the original sound and the filtered version.

    The SE 1's audio processing is far more sophisticated than that of conventional noise reduction products, offering two simultaneous processes that maximise listenability and intelligibility. The first is a powerful noise suppressor based upon CEDAR's ground-breaking FNR forensic noise reduction system. The second is a dynamic signal enhancement filter optimised to reveal the speech yet further, and which incorporates a limiter to avoid output clipping distortion if a sudden loud sound occurs when monitoring an otherwise quiet signal.

    Uses for the SE 1 include:

    • improving signal quality and intelligibility during live surveillance
    • enhancing the clarity of real-time communications
    • making transcription easier and more accurate
    • increasing the usability of on-set dialog
    • increasing the intelligibility during on-location, live-to-air speech
    DSP Two linkable channels of CEDAR processing
    Floating point processor, 2.4 GFLOP/s, 40-bit resolution
    Sample rate 44.1kHz
    AD/DA conversion 24-bit linear PCM
    Line input
    Connector RCA
    Impedance >22k½
    Nominal signal level (0dB gain) -10dBV
    Clipping level (0dB gain) +4dBV
    Dynamic range (0dB gain) >100dB (AES17, A weighted)
    THD+N (0dB gain) <0.01%
    Maximum gain +20dB
    Minimum gain -6dB
    Max input level (-6dB gain) +10dBV
    Digital input
    Connector RCA
    Format SPDIF (IEC60958)
    Sample rate sync. range 40kHz - 50kHz
    Maximum gain +6dB
    Minimum gain -20dB
    Line output
    Connector RCA
    Nominal signal level -10dBV
    Maximum output +4dBV
    Dynamic range >100dB (AES17, A weighted)
    THD+N <0.01%
    Output impedance 150½
    Minimum load impedance 2k½
    Short circuit protection Indefinite
    Digital output
    Connector Unbalanced RCA
    Format SPDIF (IEC60958)
    Sample rate (internal sync) 44.1kHz (+/-50ppm)
    Sample rate (external sync) locked to SPDIF input
    Headphone output
    Connector 6.35mm stereo jack
    Maximum output power 90mW into 32½ @ 1.7VRMS
    Dynamic range >100dB (AES17, A weighted)
    THD+N <0.05% into 32½ @ 1VRMS (32mW)
    Minimum load impedance 16½
    Short circuit protection Indefinite
    Power
    Voltage 8VDC to 17.5VDC (nominal 12V)
    Power consumption 4W typical
    Mains operation (85VAC - 250VAC, 50-60Hz) via supplied UK/US/EU/AUS 12V adapter
    Physical
    Dimensions 164mm x 110mm x 44mm
    Weight <500g

    Police, security and counter-terrorism forces require covert audio surveillance systems that are rugged while remaining as small and light as possible. They must be simple to operate and able to run on batteries as well as mains power so that they can (literally) be used in the field when necessary. Designed following consultation with numerous forces and agencies, the CEDAR SE 1 Speech Enhancer satisfies all of these criteria.

    It offers two channels of advanced filtering and speech enhancement in a small device that sits immediately between the probes (microphones) and the headphones. It offers minimal latency and the simplest possible controls, and has a 12V power input that allows it to run on mains or battery power, all of which make it ideal for covert surveillance and rapid tactical response.

    So why not apply these same critical technologies to your field recording? Capture more post-ready dialog on film and TV shoots, saving costly time in processing and/or ADR. Get better speech intelligibility for live-to-air broadcasts. The benefits are endless!

    Features:

    • A unique speech enhancement process
    • Super-fast setup and control
    • Small, light and portable
    • Analogue and digital I/O
    • Dual independent headphones outputs
    • 12V power


    Supplied in its own rugged case, the SE 1 itself is small enough to fit into your pocket, yet its advanced audio processing capabilities allow field operatives to monitor audio, reduce noise and improve the listenability of audio captured in adverse conditions. It's flexible too. The SE 1 integrates easily with other equipment using either analogue or digital inputs and outputs, and incorporates two independent headphone outputs for live monitoring directly from the unit itself. You can use a single SE 1 to monitor two microphones in a single location, or two listeners can monitor single microphones in separate locations, or you can take the input from a single source and create two output signals - the untreated audio and the filtered audio - so that courts and investigators can hear both the original sound and the filtered version.

    The SE 1's audio processing is far more sophisticated than that of conventional noise reduction products, offering two simultaneous processes that maximise listenability and intelligibility. The first is a powerful noise suppressor based upon CEDAR's ground-breaking FNR forensic noise reduction system. The second is a dynamic signal enhancement filter optimised to reveal the speech yet further, and which incorporates a limiter to avoid output clipping distortion if a sudden loud sound occurs when monitoring an otherwise quiet signal.

    Uses for the SE 1 include:

    • improving signal quality and intelligibility during live surveillance
    • enhancing the clarity of real-time communications
    • making transcription easier and more accurate
    • increasing the usability of on-set dialog
    • increasing the intelligibility during on-location, live-to-air speech
    DSP Two linkable channels of CEDAR processing
    Floating point processor, 2.4 GFLOP/s, 40-bit resolution
    Sample rate 44.1kHz
    AD/DA conversion 24-bit linear PCM
    Line input
    Connector RCA
    Impedance >22k½
    Nominal signal level (0dB gain) -10dBV
    Clipping level (0dB gain) +4dBV
    Dynamic range (0dB gain) >100dB (AES17, A weighted)
    THD+N (0dB gain) <0.01%
    Maximum gain +20dB
    Minimum gain -6dB
    Max input level (-6dB gain) +10dBV
    Digital input
    Connector RCA
    Format SPDIF (IEC60958)
    Sample rate sync. range 40kHz - 50kHz
    Maximum gain +6dB
    Minimum gain -20dB
    Line output
    Connector RCA
    Nominal signal level -10dBV
    Maximum output +4dBV
    Dynamic range >100dB (AES17, A weighted)
    THD+N <0.01%
    Output impedance 150½
    Minimum load impedance 2k½
    Short circuit protection Indefinite
    Digital output
    Connector Unbalanced RCA
    Format SPDIF (IEC60958)
    Sample rate (internal sync) 44.1kHz (+/-50ppm)
    Sample rate (external sync) locked to SPDIF input
    Headphone output
    Connector 6.35mm stereo jack
    Maximum output power 90mW into 32½ @ 1.7VRMS
    Dynamic range >100dB (AES17, A weighted)
    THD+N <0.05% into 32½ @ 1VRMS (32mW)
    Minimum load impedance 16½
    Short circuit protection Indefinite
    Power
    Voltage 8VDC to 17.5VDC (nominal 12V)
    Power consumption 4W typical
    Mains operation (85VAC - 250VAC, 50-60Hz) via supplied UK/US/EU/AUS 12V adapter
    Physical
    Dimensions 164mm x 110mm x 44mm
    Weight <500g
