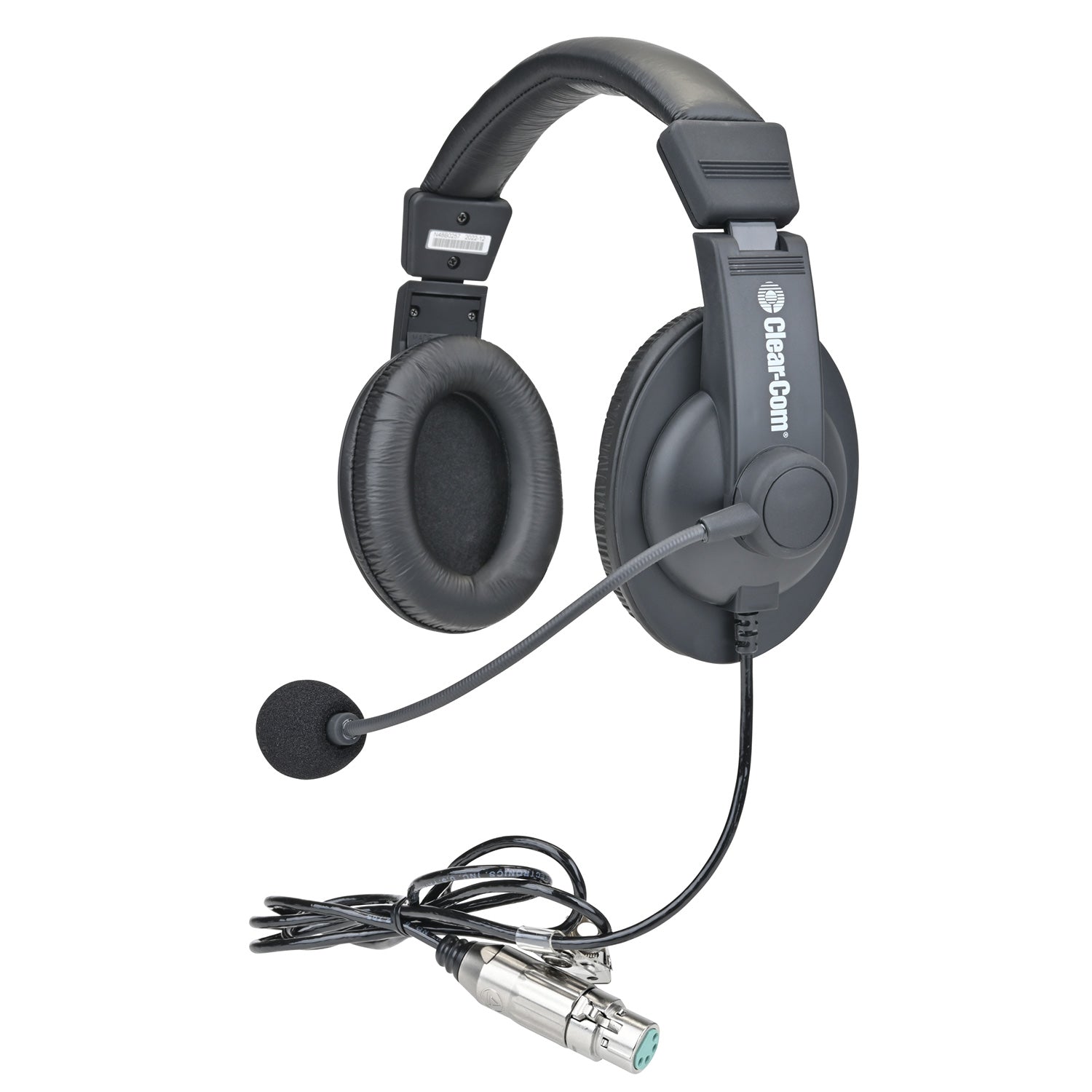

Clear-Com CC-30-X4 - Double-Ear Intercom Headset (with XLR4F)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CC-15 and CC-30 are lightweight over-the-ear headsets with electret microphone and XLR (F) 4 connection for use with beltpacks and panels. Electret microphones offer more gain over dynamic microphones, for situations where increased level is important. These headsets feature leatherette ear pads designed for comfort of use in both single and dual-ear options.
Features:
- Electret Microphone
- Available in single-ear and dual-ear headsets
- Directional Cardiod Microphone
- 4-pin models Jack for Clear-Com
- 4-pin mini-DIN models for DX wireless
| Specifications | Dual Ear Headset |
| Ear Phone | Enclosed |
| Ear Pads | Leatherette |
| Microphone | Electret |
| Microphone Unit | |
| Impedance | 2.2k Ohm +30% |
| Sensitivity | -51dB, +3dB (0dB - 1V/Pa, 1kHz) |
| Speaker Unit | |
| Impedance | 40 Ohms +15% (1kHz) |
| Max Power | 100mW (2.0V RMS) |
| Frequency Range | 20Hz - 20kHz (-15dB/1kHz) |
| Output SPL | 106dB = +2.0dB |
| Input | 1mW (0.2V RMS) |
| Weight | 6oz (170g) without cable, 8.1oz (230g) with cable |
The CC-15 and CC-30 are lightweight over-the-ear headsets with electret microphone and XLR (F) 4 connection for use with beltpacks and panels. Electret microphones offer more gain over dynamic microphones, for situations where increased level is important. These headsets feature leatherette ear pads designed for comfort of use in both single and dual-ear options.
Features:
- Electret Microphone
- Available in single-ear and dual-ear headsets
- Directional Cardiod Microphone
- 4-pin models Jack for Clear-Com
- 4-pin mini-DIN models for DX wireless
| Specifications | Dual Ear Headset |
| Ear Phone | Enclosed |
| Ear Pads | Leatherette |
| Microphone | Electret |
| Microphone Unit | |
| Impedance | 2.2k Ohm +30% |
| Sensitivity | -51dB, +3dB (0dB - 1V/Pa, 1kHz) |
| Speaker Unit | |
| Impedance | 40 Ohms +15% (1kHz) |
| Max Power | 100mW (2.0V RMS) |
| Frequency Range | 20Hz - 20kHz (-15dB/1kHz) |
| Output SPL | 106dB = +2.0dB |
| Input | 1mW (0.2V RMS) |
| Weight | 6oz (170g) without cable, 8.1oz (230g) with cable |
