Clear-Com FSII-BP19-X4-US - FreeSpeak II 1.9 GHz Wireless Intercom Beltpack (XLR4M)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
FreeSpeak II¨ 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth¨ headsets.
Features:
- Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- 1.9, 2.4 and 5.0 GHz beltpacksÊoperate on a single system
- Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
- Encoder Volume Swap betweenÊA-C and B-D
- "Listen Again" message replay
- Simple 2-channel partylineÊoperation to 5-channel intercomÊon the same beltpack
- Over-the-air beltpack registration
- 1.9 GHz radio frequency
- Typical range 300ft (90m), outdoor range 800ft (240m)
- Robust radio link works in high multipath or reflective environments
- FSII 1.9 beltpacks supports Bluetooth headset connection up to version 5.1
- IP53 rating for wet and dusty conditions
- 18+ hour battery life or USB portÊfor continuous operation
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |
| Bluetooth 4.3 Headset Profile | |
| Codec | MSBC using HFP (Hands Free Profile) |
| Frequency Spectrum | |
| USA, Canada, Mexico | 1920-1930 MHz |
| Transceiver Range Output Power | 100mW |
| Connectors | |

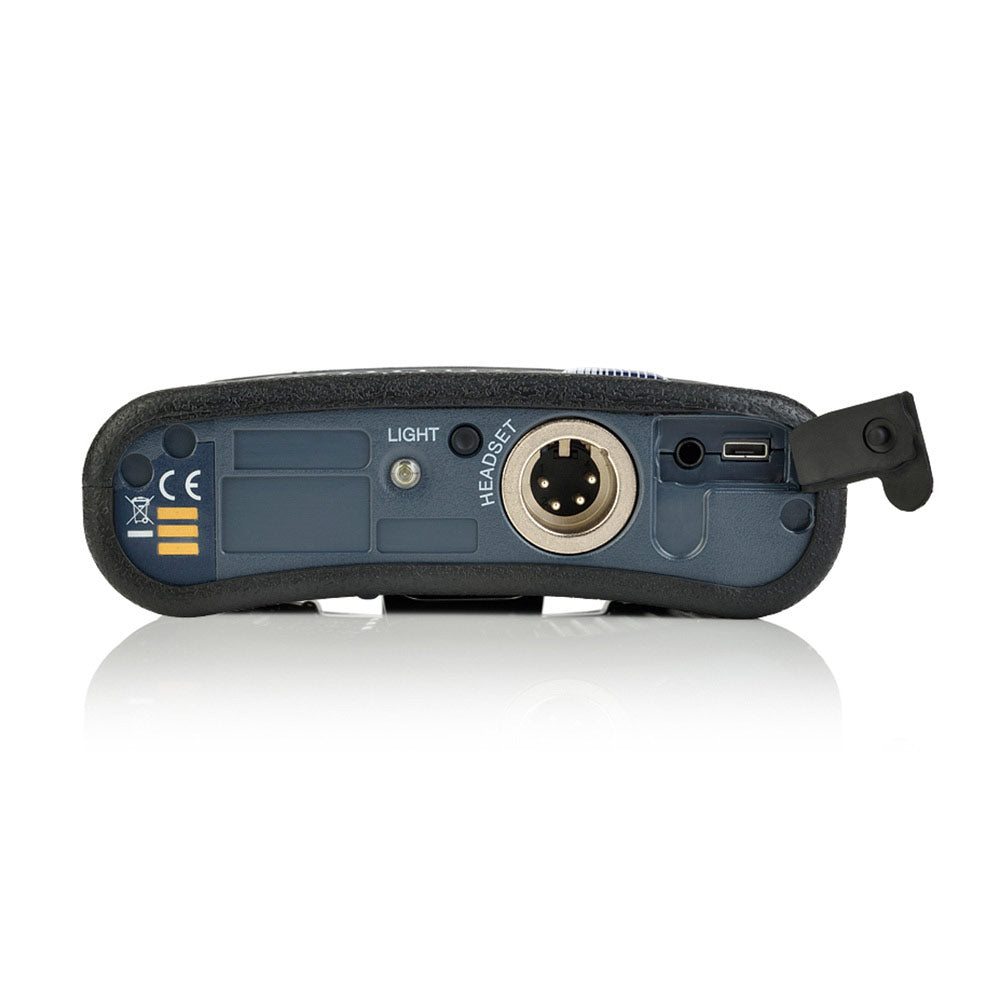

| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Microphone Voltage | Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor). |
| Dynamic Mic | -55dBu |
| Headset Limiter | Selectable from beltpack menu |
| Power | |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output Power | 18-20dBm |
| Range | Typical indoor range 300ft (90m), outdoor range 800ft (240m) |
| Battery | Li-Ion or 3 AA alkaline cells |
| Battery Charging | Drop-in charger (AC60) or local USB |
| Battery Life | 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells |
| Environmental | |
| Rating | IP53 water and dust resistance |
| Temperature | Operating: 32_-125_F (0_-50_C) Storage: 32_-150_F (0_-70_C) |
| Humidity | Between 20% and 90%, Non-Condensing |
| Dimensions | |
| Tapered design at largest points | 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) |
| Weight | 9.0oz (0.4kg) including batteries |
The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
FreeSpeak II¨ 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth¨ headsets.
Features:
- Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- 1.9, 2.4 and 5.0 GHz beltpacksÊoperate on a single system
- Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
- Encoder Volume Swap betweenÊA-C and B-D
- "Listen Again" message replay
- Simple 2-channel partylineÊoperation to 5-channel intercomÊon the same beltpack
- Over-the-air beltpack registration
- 1.9 GHz radio frequency
- Typical range 300ft (90m), outdoor range 800ft (240m)
- Robust radio link works in high multipath or reflective environments
- FSII 1.9 beltpacks supports Bluetooth headset connection up to version 5.1
- IP53 rating for wet and dusty conditions
- 18+ hour battery life or USB portÊfor continuous operation
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |
| Bluetooth 4.3 Headset Profile | |
| Codec | MSBC using HFP (Hands Free Profile) |
| Frequency Spectrum | |
| USA, Canada, Mexico | 1920-1930 MHz |
| Transceiver Range Output Power | 100mW |
| Connectors | |
| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Microphone Voltage | Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor). |
| Dynamic Mic | -55dBu |
| Headset Limiter | Selectable from beltpack menu |
| Power | |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output Power | 18-20dBm |
| Range | Typical indoor range 300ft (90m), outdoor range 800ft (240m) |
| Battery | Li-Ion or 3 AA alkaline cells |
| Battery Charging | Drop-in charger (AC60) or local USB |
| Battery Life | 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells |
| Environmental | |
| Rating | IP53 water and dust resistance |
| Temperature | Operating: 32_-125_F (0_-50_C) Storage: 32_-150_F (0_-70_C) |
| Humidity | Between 20% and 90%, Non-Condensing |
| Dimensions | |
| Tapered design at largest points | 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) |
| Weight | 9.0oz (0.4kg) including batteries |
