Clear-Com FSII-BP19-X5 - FreeSpeak II 1.9 GHz Intercom Belt Pack (XLR5 Male)

  • Dale #:

    CLEA-FSIIBP19X5US
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort. FreeSpeak II® 1.9 beltpacks with firmware version 5.3.32.... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.

FreeSpeak II® 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth® headsets.

Features:

  • Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
  • 1.9, 2.4 and 5.0 GHz beltpacks operate on a single system
  • Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
  • Encoder Volume Swap between A-C and B-D
  • "Listen Again" message replay
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • Over-the-air beltpack registration
  • 1.9 GHz radio frequency
  • Typical range 300ft (90m), outdoor range 800ft (240m)
  • Robust radio link works in high multipath or reflective environments
  • FSII 1.9 beltpacks supports Bluetooth headset connection up to version 5.1
  • IP53 rating for wet and dusty conditions
  • 18+ hour battery life or USB port for continuous operation

More +

Product Specs

Audio
Audio Bandwidth 200Hz-7.5KHz
No. of Full-Duplex Audio Paths Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
Mode of Operation Full duplex on all routes
Level/Talk Controls 4 pushbuttons, a reply button and 2 rotary controls
Enter/Answer-Back Button 1
Bluetooth 4.3 Headset Profile
Codec MSBC using HFP (Hands Free Profile)
Frequency Spectrum
USA, Canada, Mexico 1920-1930 MHz
Transceiver Range Output Power 100mW
Connectors

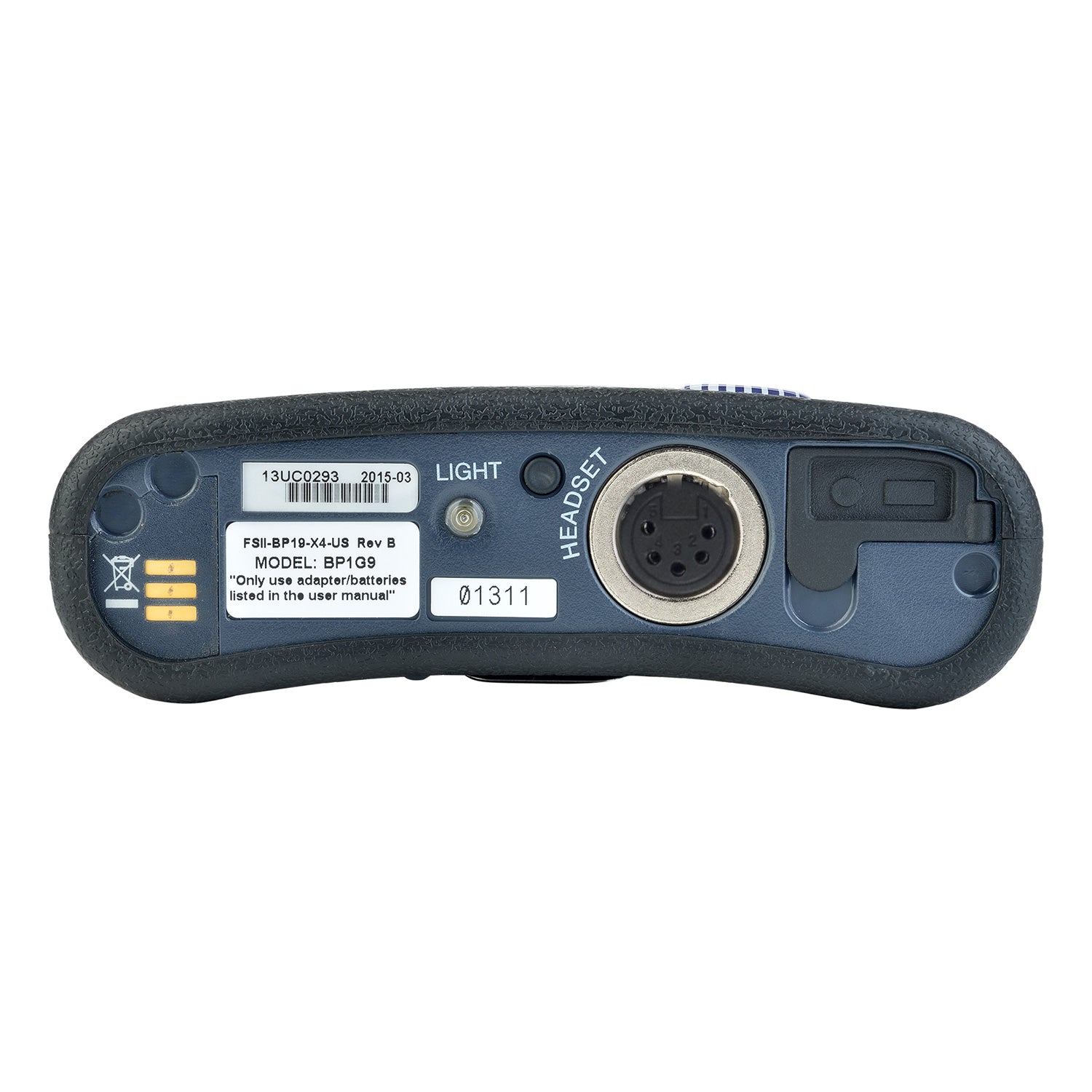

Headset Connector 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Headset Voltage Maximum of ~+8dBu as set by firmware
Microphone Type Electret and Dynamic, selectable in beltpack menu
Microphone Voltage Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor).
Dynamic Mic -55dBu
Headset Limiter Selectable from beltpack menu
Power
Modulation GFSK, TDMA frame 10ms Full and Long slot
Output Power 18-20dBm
Range Typical indoor range 300ft (90m), outdoor range 800ft (240m)

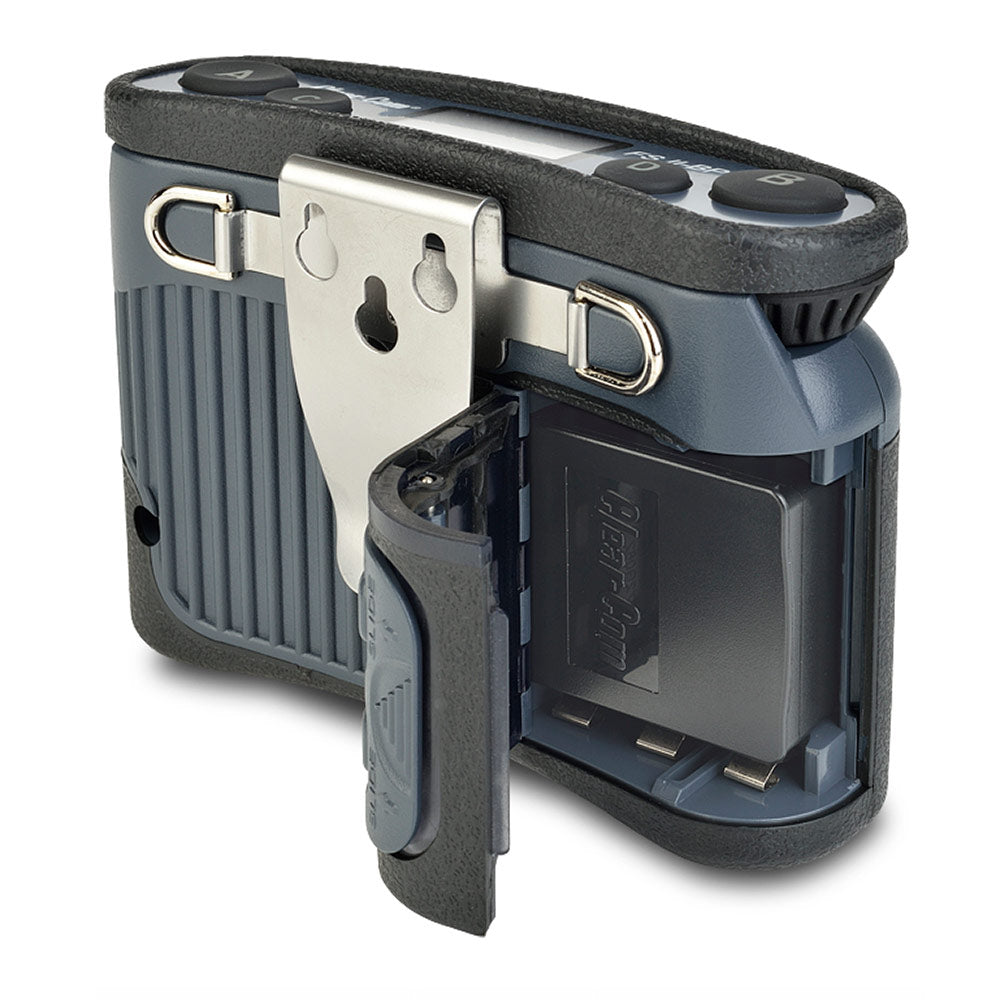

Battery Li-Ion or 3 AA alkaline cells
Battery Charging Drop-in charger (AC60) or local USB
Battery Life 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
Environmental
Rating IP53 water and dust resistance
Temperature Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity Between 20% and 90%, Non-Condensing
Dimensions
Tapered design at largest points 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm)
Weight 9.0oz (0.4kg) including batteries
