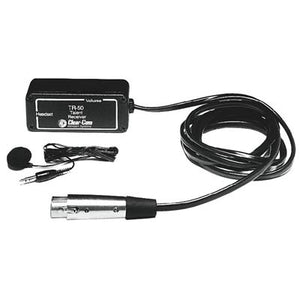

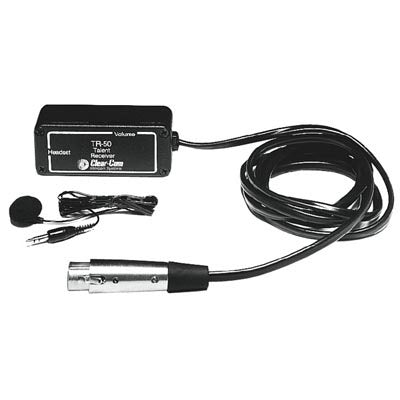

Clear-Com TR-50 Monaural IFB Talent Receiver 1/8" Mini Jack includes TS-1


  • Dale #:

    CLEA-TR50
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Clear-Com TR-50 is an amplified, single-channel portable IFB talent receiver, with a monaural earphone, designed for connection to that company's PIC-4000B program-interrupt controller, as a component of a multi-participant IFB system. The attached cable is a standard 3-pin XLR microphone typ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Clear-Com TR-50 is an amplified, single-channel portable IFB talent receiver, with a monaural earphone, designed for connection to that company's PIC-4000B program-interrupt controller, as a component of a multi-participant IFB system. The attached cable is a standard 3-pin XLR microphone type.

The feather-light, ultra-simplified TR-50 design features a volume control and a mini-jack earphone input; the unit is about clean amplification and fidelity to the frequency response of the system. It is also recommended for listen-only use with party-line intercom systems.

Features :

  • Extremely lightweight portable IFB talent receiver with monaural earphone
  • Simple design, clean amplification and frequency response with +20 dBm max. output level
  • High output, discreetly sized earphone for professional appearance and intelligibility
  • Attached cable with standard XLR connector to controller
  • Volume control knob
  • Full Clear-Com Main and Remote station compatibility, party line listen-only functionality

More +

Product Specs

TypePortable IFB Talent Receiver with Dynamic Earphone
Frequency Range200 Hz - 18 kHz
Microphone TypeNo
Mic Frequency ResponseNo
Impedance>30 Ohms
Bridging ImpedanceNot specified by Manufacturer
DC Current Requirements28 VDC(10 mA quiescent)
Sensitivity (0 VU)Not specified by Manufacturer
Maximum Input PowerNot specified by Manufacturer
Controls and Indicators1 x Volume Control Wheel
Connectors1 x 3-pin XLR Female(attached cable),1 x 1/8 Mono Mini Jack
Cable Length6' (1.83 m)
Dimensions3.6 x 1.5 x 1.5 (91 x 38 x 38mm)
Weight4.5 oz. (0.1 kg)
