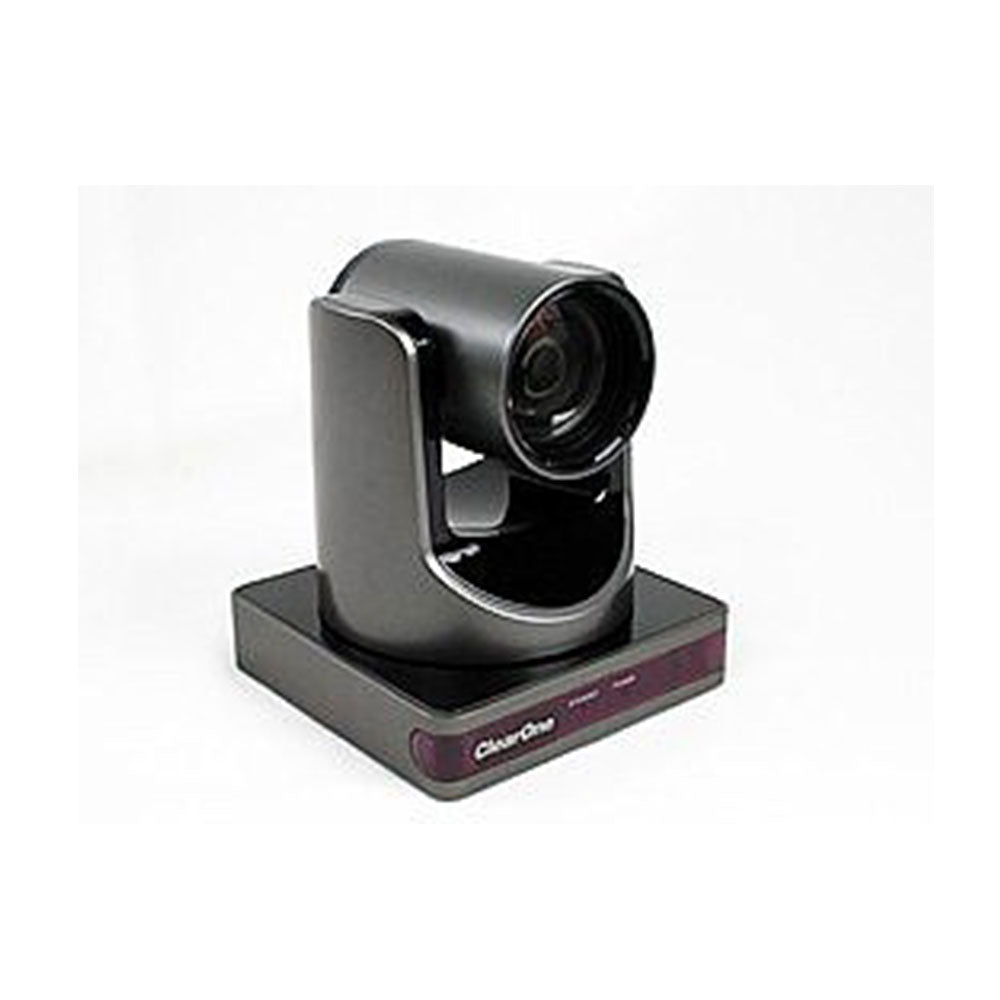

ClearOne UNITE 150 - PTZ Conferencing Camera
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
ClearOne UNITE 150 - PTZ Conferencing Camera
Sale price$599.00
Description
Professional-grade HD USB PTZ camera for conference rooms, webconferencing, UC applications and more.
Features:
- Full HD 1080p video, 12x optical zoom, and wide-angle capability to capture all participants in the room with advanced noise reduction.
- Compatibility with USB 3.0 and 2.0 makes it perfect for PC-based video and web conferencing applications.
- Compatible with popular applications such as COLLABORATE® Space, Microsoft Teams,Cisco Jabber, WebEx, GoToMeeting, Google Hangouts, and more
- Control the camera's functions via IR remote control, RS-232, or USB control.
Applications
- PC-based video conferencing
- Web conferencing
- Unified communications
- Capture applications and more
Environments
- Huddle spaces
- Executive offices
- Conference rooms
- Boardrooms
- Training centers
| CAMERA | |
| VIDEO SYSTEM | 1080 p /30, 1080 p /25, 720 p /30, 720 p /25 |
| SENSOR | 1/2.7 INCH, CMOS, EFFECTIVE |
| PIXEL | 2.07M |
| SCANNING MODE | PROGRESSIVE |
| LENS | 12X, F3.5MM Ð 42.3MM, F1.8 Ð F2.8 |
| MINIMAL ILLUMINATION | 0.05 LUX @ (F1.8, AGC ON) |
| SHUTTER | 1/30S Ð 1/10000S |
| WHITE BALANCE | AUTO, INDOOR, OUTDOOR, ONE PUSH, MANUAL |
| BACKLIGHT COMPENSATION | SUPPORTED |
| DIGITAL NOISE REDUCTION | 2D / 3D DIGITAL NOISE REDUCTION VIDEO S/N : ³55DB VIDEO S/N : ³55DB |
| HORIZONTAL ANGLE OF VIEW | 72.5¡ Ð 6.9¡ |
| VERTICAL ANGLE OF VIEW | 44.8¡ Ð 3.9¡ |
| HORIZONTAL ROTATION RANGE | ±170¡ |
| VERTICAL ROTATION RANGE | -30¡ Ð +90¡ |
| PAN SPEED RANGE | 1.7¡ Ð 100¡/S |
| TILT SPEED RANGE | 1.7¡ Ð 69.9¡/S |
| H / V FLIP | SUPPORTED |
| IMAGE FREEZING | SUPPORTED |
| NUMBER OF PRESETS | 255 |
| FLEXIBLE INSTALLATION | STANDARD MOUNT, UPSIDE-DOWN MOUNT |
| USB Features | |
| OPERATING SYSTEMS | WINDOWS 7, WINDOWS 8, WINDOWS 8.1, WINDOWS 10, MACOS, LINUX |
| COLOR SYSTEM | YUV 4:2:2 |
| VIDEO FORMATS | USB 3.0: 1080p/30, 1080p/25, 720p/30, 720p/25 |
| USB VIDEO COMMUNICATION | UVC 1.0 |
| UVC PTZ | SUPPORTED |
| INPUT/OUTPUT INTERFACE | |
| AUDIO INPUTS | 1-CH 3.5MM AUDIO INTERFACE, LINE IN |
| USB | 1 X USB3.0: TYPE B FEMALE JACK 1 X USB2.0: TYPE A FEMALE JACK (RESERVED INTERFACE) |
| 1XRS-232 IN | 8-PIN MIN DIN |
| MAX DISTANCE | 30M |
| PROTOCOLS | VISCA/PELCO-D/PELCO-P |
| 1XRS-232 OUT | 8-PIN MIN DIN |
| MAX DISTANCE | 30M |
| PROTOCOLS | VISCA NETWORK USE ONLY |
| 1XRS485 | SHARE WITH RS232 OUT |
| MAX DISTANCE | 1200M |
| PROTOCOLS | VISCA/PELCO--D/ PELCO-P |
| GENERIC SPECIFICATIONS | |
| POWER JACK | JEITA TYPE (DC IN 12V) |
| INPUT VOLTAGE | DC 12V |
| POWER CONSUMPTION | 12W (MAX) |
| OPERATING TEMPERATURE | -10¡C Ð 40¡C |
| STORAGE TEMPERATURE | -40¡C Ð 60¡C |
| DIMENSIONS | 240MM X 144MM X 160MM |
| WEIGHT | 1.65KG (3.6LB) |
| PART NUMBER | 910-2100-004 |
Professional-grade HD USB PTZ camera for conference rooms, webconferencing, UC applications and more.
Features:
- Full HD 1080p video, 12x optical zoom, and wide-angle capability to capture all participants in the room with advanced noise reduction.
- Compatibility with USB 3.0 and 2.0 makes it perfect for PC-based video and web conferencing applications.
- Compatible with popular applications such as COLLABORATE® Space, Microsoft Teams,Cisco Jabber, WebEx, GoToMeeting, Google Hangouts, and more
- Control the camera's functions via IR remote control, RS-232, or USB control.
Applications
- PC-based video conferencing
- Web conferencing
- Unified communications
- Capture applications and more
Environments
- Huddle spaces
- Executive offices
- Conference rooms
- Boardrooms
- Training centers
| CAMERA | |
| VIDEO SYSTEM | 1080 p /30, 1080 p /25, 720 p /30, 720 p /25 |
| SENSOR | 1/2.7 INCH, CMOS, EFFECTIVE |
| PIXEL | 2.07M |
| SCANNING MODE | PROGRESSIVE |
| LENS | 12X, F3.5MM Ð 42.3MM, F1.8 Ð F2.8 |
| MINIMAL ILLUMINATION | 0.05 LUX @ (F1.8, AGC ON) |
| SHUTTER | 1/30S Ð 1/10000S |
| WHITE BALANCE | AUTO, INDOOR, OUTDOOR, ONE PUSH, MANUAL |
| BACKLIGHT COMPENSATION | SUPPORTED |
| DIGITAL NOISE REDUCTION | 2D / 3D DIGITAL NOISE REDUCTION VIDEO S/N : ³55DB VIDEO S/N : ³55DB |
| HORIZONTAL ANGLE OF VIEW | 72.5¡ Ð 6.9¡ |
| VERTICAL ANGLE OF VIEW | 44.8¡ Ð 3.9¡ |
| HORIZONTAL ROTATION RANGE | ±170¡ |
| VERTICAL ROTATION RANGE | -30¡ Ð +90¡ |
| PAN SPEED RANGE | 1.7¡ Ð 100¡/S |
| TILT SPEED RANGE | 1.7¡ Ð 69.9¡/S |
| H / V FLIP | SUPPORTED |
| IMAGE FREEZING | SUPPORTED |
| NUMBER OF PRESETS | 255 |
| FLEXIBLE INSTALLATION | STANDARD MOUNT, UPSIDE-DOWN MOUNT |
| USB Features | |
| OPERATING SYSTEMS | WINDOWS 7, WINDOWS 8, WINDOWS 8.1, WINDOWS 10, MACOS, LINUX |
| COLOR SYSTEM | YUV 4:2:2 |
| VIDEO FORMATS | USB 3.0: 1080p/30, 1080p/25, 720p/30, 720p/25 |
| USB VIDEO COMMUNICATION | UVC 1.0 |
| UVC PTZ | SUPPORTED |
| INPUT/OUTPUT INTERFACE | |
| AUDIO INPUTS | 1-CH 3.5MM AUDIO INTERFACE, LINE IN |
| USB | 1 X USB3.0: TYPE B FEMALE JACK 1 X USB2.0: TYPE A FEMALE JACK (RESERVED INTERFACE) |
| 1XRS-232 IN | 8-PIN MIN DIN |
| MAX DISTANCE | 30M |
| PROTOCOLS | VISCA/PELCO-D/PELCO-P |
| 1XRS-232 OUT | 8-PIN MIN DIN |
| MAX DISTANCE | 30M |
| PROTOCOLS | VISCA NETWORK USE ONLY |
| 1XRS485 | SHARE WITH RS232 OUT |
| MAX DISTANCE | 1200M |
| PROTOCOLS | VISCA/PELCO--D/ PELCO-P |
| GENERIC SPECIFICATIONS | |
| POWER JACK | JEITA TYPE (DC IN 12V) |
| INPUT VOLTAGE | DC 12V |
| POWER CONSUMPTION | 12W (MAX) |
| OPERATING TEMPERATURE | -10¡C Ð 40¡C |
| STORAGE TEMPERATURE | -40¡C Ð 60¡C |
| DIMENSIONS | 240MM X 144MM X 160MM |
| WEIGHT | 1.65KG (3.6LB) |
| PART NUMBER | 910-2100-004 |
