Description

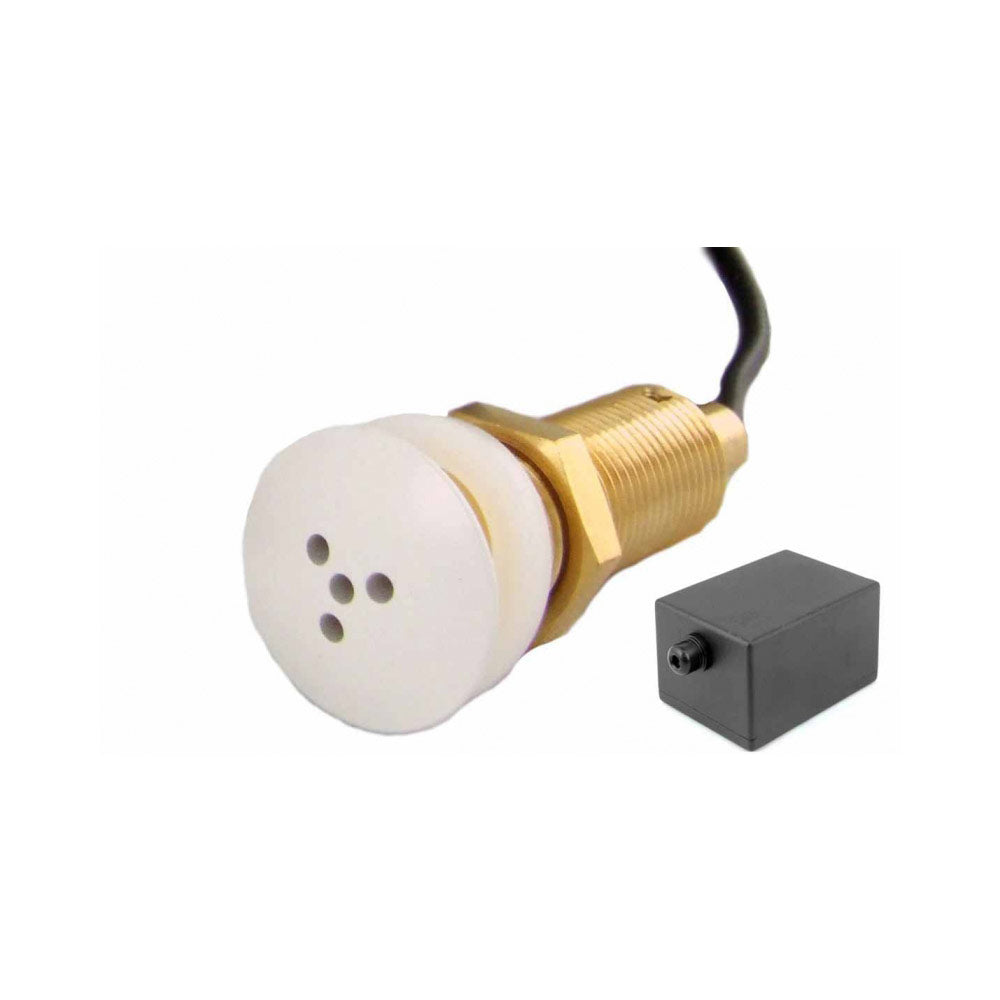

Through desk/ceiling/panel mount Boundary Layer design with an Omni-Directional Polar Pattern. XLR pre-wired output with pre-amp.
- Boundary Layer Condenser microphone.
- RF friendily technology offering immunity from GSM (cellphones) and other sources of frequency interference.
- Omni-Directional.
- High quality brass construction.
- Ease of mounting.
- Low visibility when mounted.
- Screw terminal termination supplied with an Open Ended cable.
- Supplied with CPPW01-RF.
- Finish: Matt Black, White or Nickel.
Length | 25mm (1.0) |
Application | Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres. |
Type | Condenser (back electret) |
Polar Pattern | Omni-Directional |
Frequency Response | 50 Hz - 20 KHz |
Sensitivity | -37.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa) |
Impedance | 200 Ohms |
S/N Ratio | 68dB(A) |
Maximum Sound Pressure Level | 120db at 1KHz 1% T.H.D. |
Power Requirements | 2 - 10 Volts max via in line resistor |
Termination | CPPW01-RF - screw terminal connections. |
Finish | Matt Black, White or Nickel. |
Dimensions | DIA 20mm (0.8) |
Through desk/ceiling/panel mount Boundary Layer design with an Omni-Directional Polar Pattern. XLR pre-wired output with pre-amp.
- Boundary Layer Condenser microphone.
- RF friendily technology offering immunity from GSM (cellphones) and other sources of frequency interference.
- Omni-Directional.
- High quality brass construction.
- Ease of mounting.
- Low visibility when mounted.
- Screw terminal termination supplied with an Open Ended cable.
- Supplied with CPPW01-RF.
- Finish: Matt Black, White or Nickel.
Length | 25mm (1.0) |
Application | Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres. |
Type | Condenser (back electret) |
Polar Pattern | Omni-Directional |
Frequency Response | 50 Hz - 20 KHz |
Sensitivity | -37.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa) |
Impedance | 200 Ohms |
S/N Ratio | 68dB(A) |
Maximum Sound Pressure Level | 120db at 1KHz 1% T.H.D. |
Power Requirements | 2 - 10 Volts max via in line resistor |
Termination | CPPW01-RF - screw terminal connections. |
Finish | Matt Black, White or Nickel. |
Dimensions | DIA 20mm (0.8) |
