Description

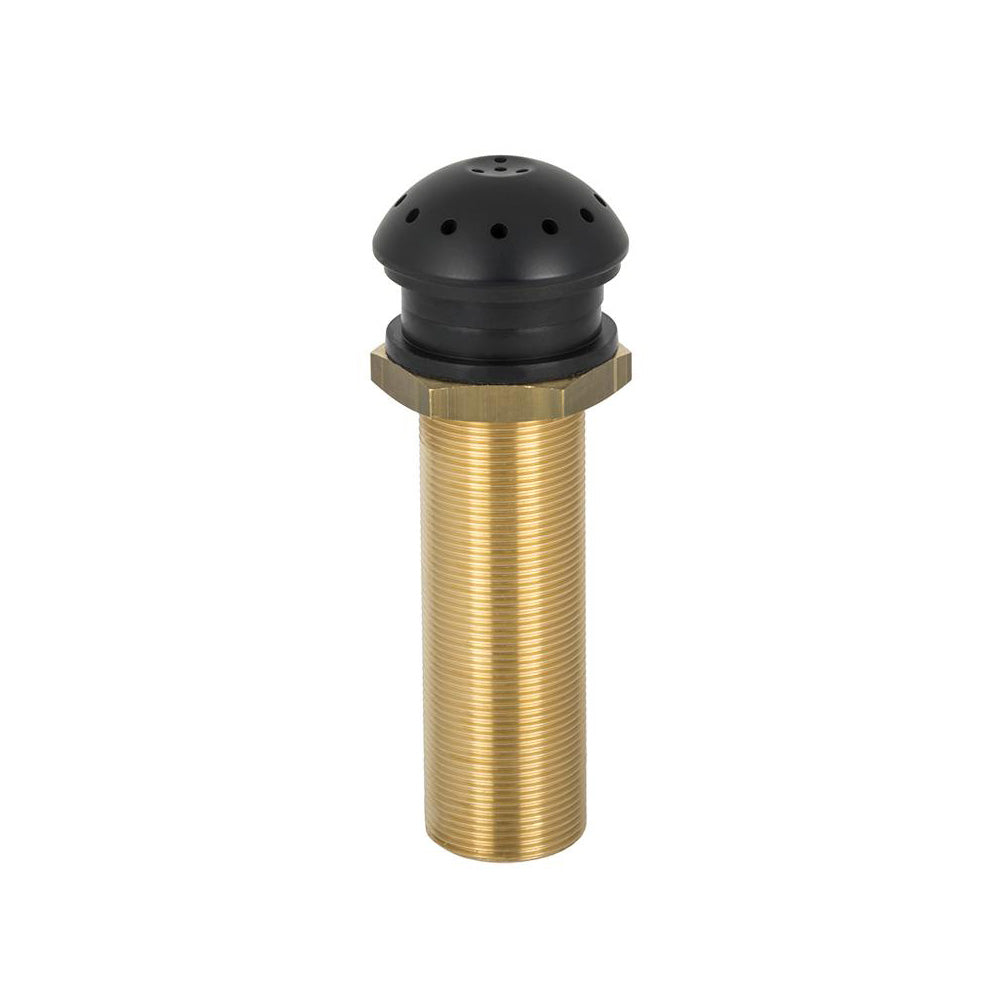

Low profile Through Table/Desk Omni-Directional Boundary Layer Microphone.
Features:
- RF friendily technology offering immunity from GSM (cellphones) and other sources of frequency interference.
- Engineered in high quality brass.
- Omni-Directional Polar Pattern.
- Wide smooth response.
- Balanced output.
- Simple through-desk shock mounting.
- Low profile at surface level.
- Integral Phantom Power Module.
- Finish: Satin Black or Nickel.
Length | 85mm (3.35") |
Application | For boardrooms,conferencing,court rooms and other such venues. |
Type | Condenser (back electret) |
Polar Pattern | Omni-directional |
Frequency Response | 50 Hz - 20 KHz |
Sensitivity | -42dB +/- 3dB at 1 KHz (OdB = 1 V/Pa) |
Impedance | 200 Ohms |
S/N Ratio | 58dB(A) |
Maximum Sound Pressure Level | 120db at 1KHz 1% T.H.D. |
Power Requirements | 9 - 48 volts phantom power |
Termination | Male 3 pin XLR |
Finish | Satin Black or Nickel. |
Dimensions | Hole cut out diameter 24mm (0.94") Head Dia:30.00mm (1.18") |
Weight | 112g (3.95oz) |
