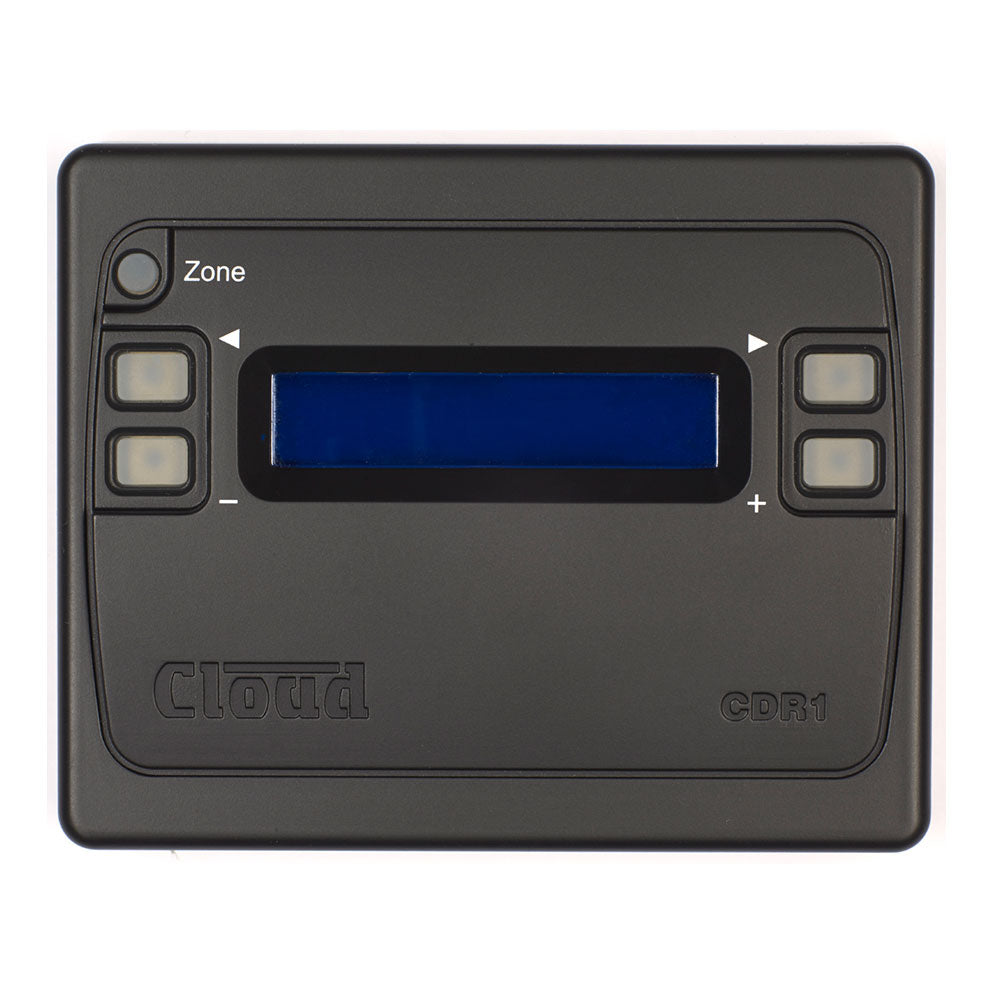

Cloud CDR-1 Remote Music Source Select for DCM1 (Black)

The CDR1 and CDR1F are the remote control panels for use with the Cloud DCM-1 Digitally Controlled Mixer. They are fitted with the same alphanumeric display as the DCM-1, menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of systemoperation than from the DCM-1's front panel. A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Features

• Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
• Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
• Can be interconnected using a wide choice of wiring topologies
• Choice of two mounting styles to suit installation
• Backlit 2-row x 16 character dot matrix alphanumeric display
• User accessible functions:
  Source selection
  Level control
  Group enable/disable
• Engineer mode functions (password enabled):
  Local zone EQ adjustment
• Installer mode (Enabled by internal jumper):
  Zone assignment
  Password setting
  Display adjustment
  Inactivity time (time for which display backlight remains lit after a button is pressed)
