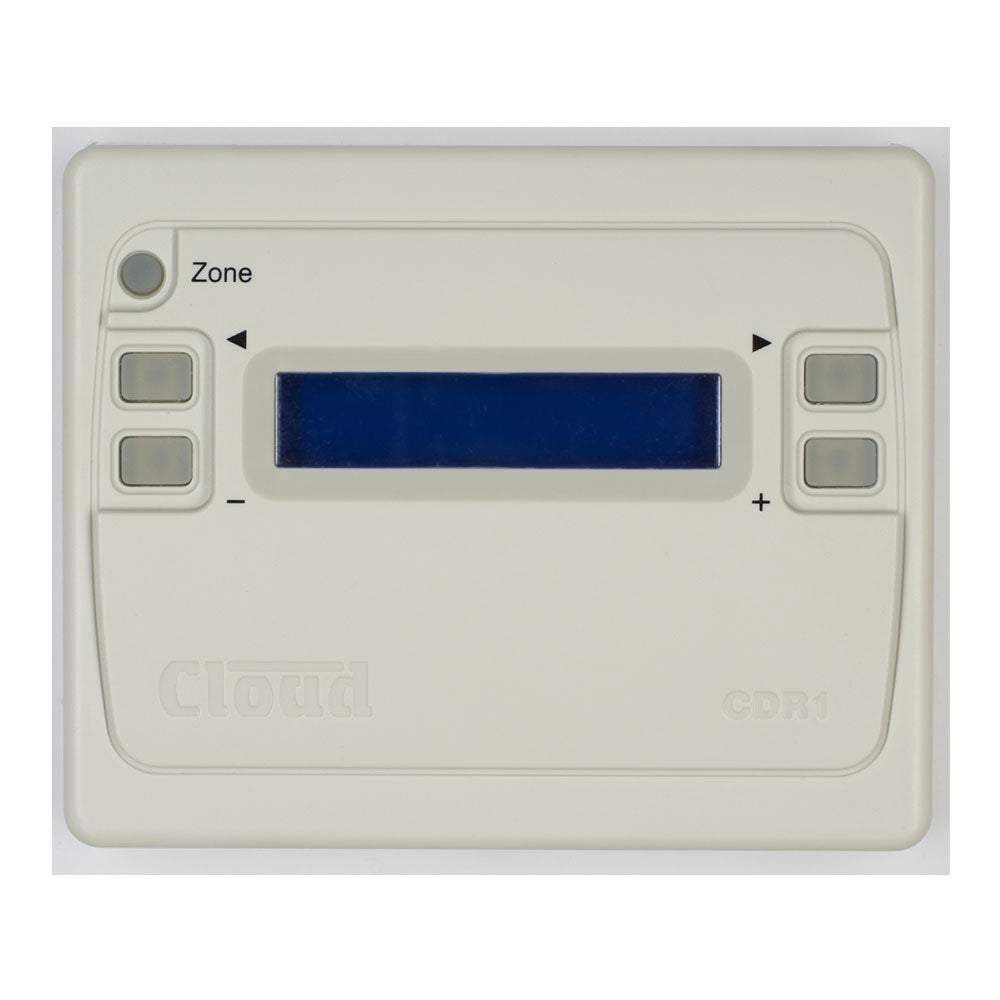

Cloud CDR-1 Remote Music Source Select for DCM1 (White)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:CLOU-CDR1W

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The CDR1 and CDR1F are the remote control panels for use with the Cloud DCM-1 Digitally Controlled Mixer. They are fitted with the same alphanumeric display as the DCM-1, menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of systemoperation than from the DCM-1's front panel. A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

    Features

    • Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
    • Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
    • Can be interconnected using a wide choice of wiring topologies
    • Choice of two mounting styles to suit installation
    • Backlit 2-row x 16 character dot matrix alphanumeric display
    • User accessible functions:
      Source selection
      Level control
      Group enable/disable
    • Engineer mode functions (password enabled):
      Local zone EQ adjustment
    • Installer mode (Enabled by internal jumper):
      Zone assignment
      Password setting
      Display adjustment
      Inactivity time (time for which display backlight remains lit after a button is pressed)
  • Front Panel
    Display16x2 character BlueWhite LCD
    Input5 push buttons
    Data Connection
    Connectors2x RJ45 socket
    ProtocolCAN Bus
    Maximum length1km
    Power Connection
    Connectors1x RJ45 in (+ data)
    1x RJ45 out (+ data)
    1x 2-way 5mm screw terminalsocket
    Consumption50mA at 12V typical
    Accepted external supplies12 – 24V DC
    9 – 17VAC
    Dimensions149.70 x 90.20 x 39.25mm
    BackboxDual-gangUK,47mm deep
    Protrusion once mounted9mm
    Number ofzones controlled1 + assigned groups
