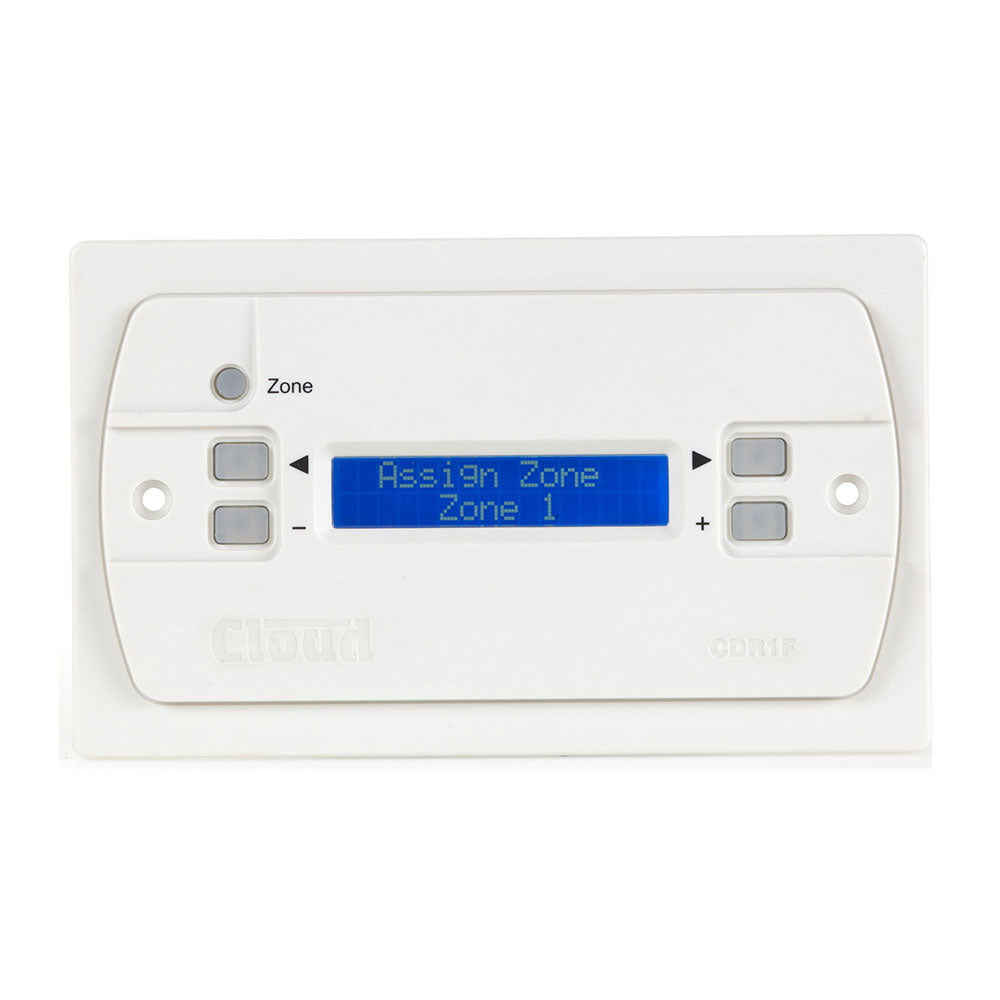

Cloud CDR-1F Wall Mount Remote Music Source Selector for DCM1 (White)


  • Dale #:

    CLOU-CDR1FW
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The CDR-1F is a flush-mount remote control panel for use with the Cloud DCM-1 Digital Control Mixer, fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one or many of the DCM-1's zones, the CDR-1F provides the user and instal... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CDR-1F is a flush-mount remote control panel for use with the Cloud DCM-1 Digital Control Mixer, fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one or many of the DCM-1's zones, the CDR-1F provides the user and installer with localised control of a zone. A zone may have one CDR-1F, more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Features

  • Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
  • Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
  • Can be interconnected using a wide choice of wiring topologies
  • Choice of two mounting styles to suit installation
  • Backlit 2-row x 16 character dot matrix alphanumeric display
  • User accessible functions:
    Source selection
    Level control
    Group enable/disable
  • Engineer mode functions (password enabled):
    Local zone EQ adjustment
  • Installer mode (Enabled by internal jumper):
    Zone assignment
    Password setting
    Display adjustment
    Inactivity time (time for which display backlight remains lit after a button is pressed)

More +

Product Specs

Front Panel
Display16x2 character BlueWhite LCD
Input5 push buttons
Data Connection
Connectors2x RJ45 socket
ProtocolCAN Bus
Maximum length1km
Power Connection
Connectors1x RJ45 in (+ data)
1x RJ45 out (+ data)
1x 2-way 5mm screw terminalsocket
Consumption50mA at 12V typical
Accepted externalsupplies12 – 24V DC
9 – 17VAC
Dimensions149.70 x 90.20 x 39.25mm
BackboxDual-gangUK,47mm deep
Protrusion once mounted9mm
Number ofzones controlled1 + assigned groups
