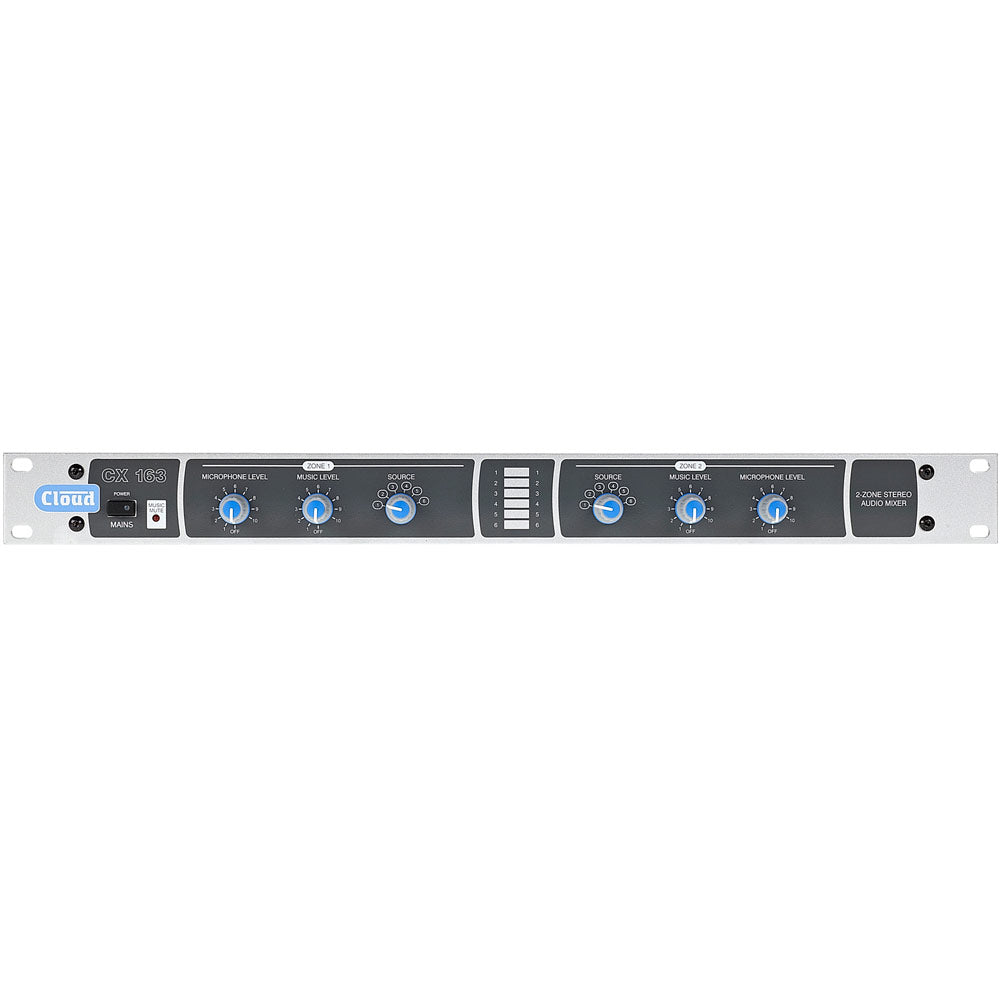

Cloud CX163 2 Zone with Utility Zone Mixer


  • Dale #:

    CLOU-CX163
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled re... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.

Features

  • 2 zone stereo mixer with mono utility output
  • Both stereo zones can be configured to run as mono
  • Utility output is constant OdB
  • Utility music source is selectable via internal jumper
  • 6 stereo line inputs
  • Line 6 priority over other input sources in zone 1 only
  • Remote music mute
  • Microphone access contacts for paging to all 3 zones
  • 100Hz high pass filter on all microphone inputs
  • Two band microphone EQ
  • Remote level control in each zone using RL1
  • Front panel controls give microphone level, music source and volume

More +

Product Specs

Line Inputs
Frequency Response20 Hz-22 kHz, 0 -0.5 dB
Distortion20 Hz-22 kHz, <0.05% Typical
Sensitivity100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
Input Gain Control24 dB range
Input Impedance48 kΩ
Headroom>20 dB
Noise20 Hz-22 kHz (0 dB gain), <-84 dBu rms typical
EqualisationLF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10kHz
Microphone Input
Frequency Response100 Hz -3 dB (filter), 20 kHz <-0.5 dB
Distortion<0.05%, 20 Hz – 22 kHz typical
Gain Range10 dB to 50 dB
Input Impedance>2 kΩ (balanced)
Common Mode Rejection1 kHz >70 dB
Headroom>20 dB
Noise20 Hz -22 kHz (150Ω), -128 dB EIN
EqualisationLF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz
Outputs
Output0 dBu (775 mV) via 3.5mm-pitch plug-in screw terminals
Minimum load impedance1.2 kΩ
Maximum output level+20 dBu
General
Power Input230 V/115 V ±10%
Fuse RatingT100 mA 230 V, T200 mA 115 V
Fuse Type20 mm x 5 mm 250 V
Dimensions482.6 mm x 44 mm (1U) x 152.5 mm
Weight2.15 kg
