Cloud CX261 Single Zone Mixer


  • Dale #:

    CLOU-CX261
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.Features Six (u... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

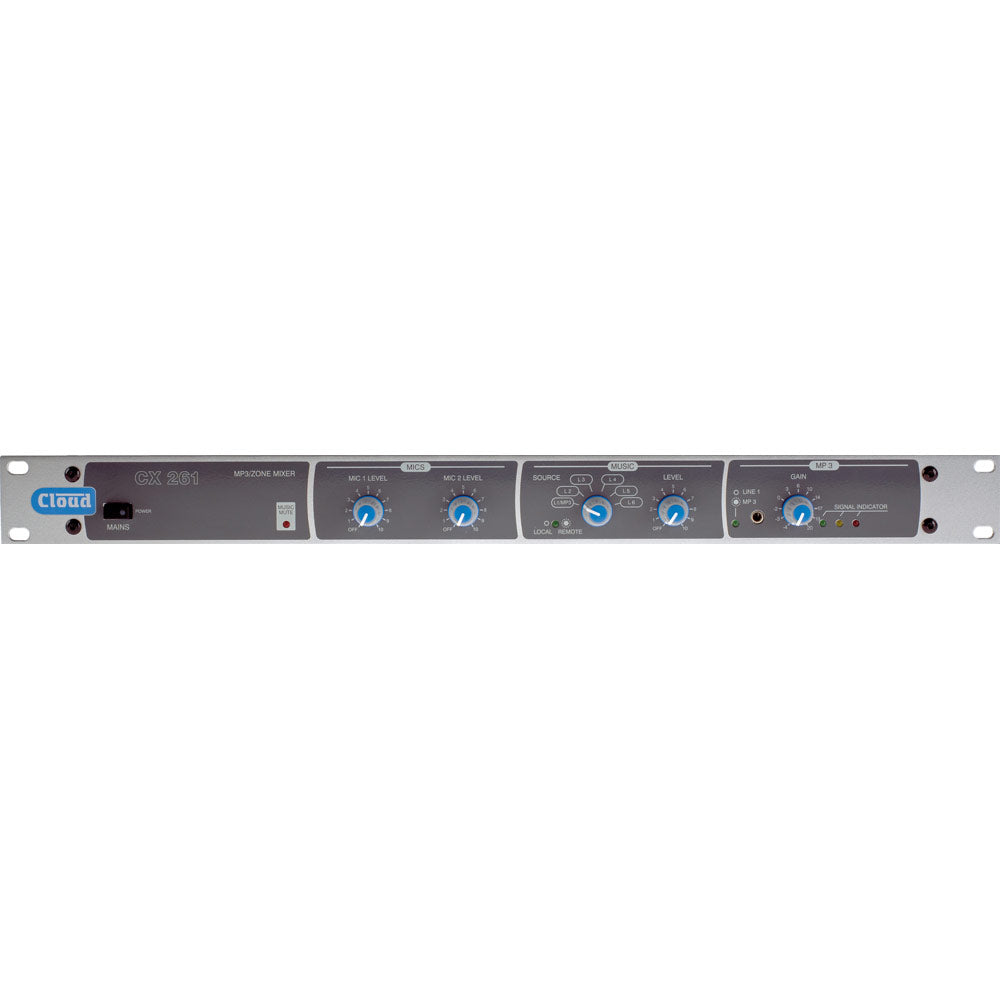

The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.

Features

  • Six (unbalanced) stereo line inputs with individual gain control
  • Two electronically-balanced mic inputs
  • Front panel control of music source/level and mic level
  • Front panel input (3.5mm jack) for MP3 player
  • HF & LF EQ adjustment for music and mic inputs
  • MIC 1 input configurable as transformer-isolated line input
  • MIC 1 priority over MIC 2 (selectable)
  • Short-to-ground access connector
  • Selectable LINE 6 priority with choice of release times
  • Music mute control input (NO or NC)
  • Compatible with standard Cloud remote control panels
  • Electronically-balanced stereo main output
  • Transformer-isolated mono auxiliary output
  • Aux output source selection (internal jumper)
  • Optional Bose EQ cards available
  • 1U 19'' rack mounting unit

More +

Product Specs

LINE INPUTS
Frequency Response20 Hz - 20 kHz, ±0.5 dB
Distortion<0.05% typical, 1 kHz
Sensitivity0.775 V (0 dBu), ±12 dB
Input Gain Control24 dB range
Input Impedance48 kohms
Headroom>20 dB
Noise-88 dB rel 0 dBu (typical); A-weighted, rms
EqualisationLF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz
MP3 INPUT
Frequency Response20 Hz – 20 kHz, ±0.5 dB
Distortion<0.05% @ 1 kHz
Sensitivity range-20 dBu to +4 dBu
Gain adjustment24 dB
MICROPHONE INPUTS
Frequency Response<0.05%, 20 Hz - 22 kHz
Gain Range40 dB
Sensitivity-10 dBu to -50 dBu
Input Impedance>2 kohms (balanced)
Common Mode Rejection1 kHz, >70 dB
Headroom>20 dB
Noise<-125 dB EIN, A-weighted, 150 ohms
EqualisationLF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz
TEL INPUT
Frequency Response-3 dB @ 100 Hz (filter); <-0.5 dB @ 20 kHz
Distortion<0.05%, 200 Hz – 20 kHz
Sensitivity-20 dBu to + 4 dBu
Headroom>20 dB
OUTPUTS
Nominal Output Level0 dBu (MAIN); -6 dBu (AUX/MOH)
Minimum Load Impedance1.2 kohms (MAIN); 600 ohms (AUX/MOH)
Maximum Output Level+20 dBu (MAIN); 0 dBu (AUX/MOH)
Power Input230 V ±10% (optional external 115/230 V transformer available)
Fuse RatingT100mA 230V
Fuse Type20 mm x 5 mm 250 V
Dimensions Net (w x h x d)482 mm x 44 mm (1U) x 155 mm; 19” x 1.7” x 6.1”
Dimensions Gross (Shipping)560 mm x 140 mm x 290 mm; 22” x 6” x 11”
Weight (Net)2.15 kg / 4.82 lbs
Weight (Gross)3.5 kg / 7.7 lbs

More +
