DALE SKU # COMM-R5COAX66T

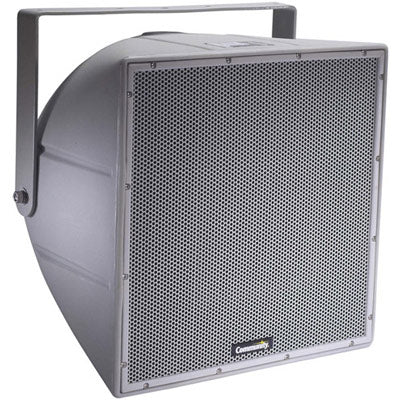

Community R.5COAX66T R Series 2-Way 12" 200 Watt 70/100V Coaxial All Weather Loudspeaker - Grey

Sale price$1,125.00 Regular price$1,596.00
Save $471.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The R.5COAX66T high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R.5COAX66T comes with a factory-installed 200W, 70V/100V autoformer. Five-year limited product warranty fifteen-year enclosure warranty.

    Features
    • Weather-resistant, rotomolded UV enclosure
    • Weather-treated drivers and crossovers
    • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
    • High fidelity
    • High efficiency
    • Integral mounting points
    • High power passive crossover
    • Factory-installed 200W, 70V autoformer
    Loudspeaker Type 2-way, coaxial, weather-resistant, full-range
    Operating Range 80 Hz to 18 kHz 90 Hz to 12.5 kHz (±3.5 dB) 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V
    Sensitivity (1W/1m) 97 dB SPL (100 Hz to 13 kHz 1/3 octave bands) 96 dB SPL (250 Hz to 4 kHz speech range)
    200w Nominal Impedance 25 ohms
    Minimum Impedance 15.9 Ohms @ 9.8 kHz
    Nominal Ð6dB Beamwidth 60¡H (+20¡ / -6¡, 1.6 kHz to 12.5 kHz) 60¡V (+20¡ / -3¡, 1.6 kHz to 12.5 kHz)
    Axial Q / DI 15.2 / 11.8, 1.6 kHz to 12.5 kHz
    Crossover Frequency 2 kHz
    Recommended Signal Processing 80 Hz high pass filter
    Drivers LF 1 x 12Ó HF 1 x 1Ó exit titanium free, Ferrofluid-cooled
    Driver Protection DYNA-TECH protection circuitry
    Input Connection 12 foot (4 m) SJOW #16 gauge
    Controls None
    Enclosure Rotomolded LLDPE, light grey
    Mounting/Rigging Provisions (5) 3/8-16 rigging points
    Grille 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
    Environmental Performance IEC529 IP54W rating with a minimum 5-degree downward aiming angle
    Required Accessories 24 dB/Oct high pass filter
    Supplied Accessories (1) Yoke bracket, light grey (1) Aiming strap
    Optional Accessories PMB Series pole mount brackets
    Dimensions
    Height 16 inches (406.4 mm)
    Width 16 inches (406.4 mm)
    Depth 15.94 inches (404.88 mm)
    Weight 38.5 lbs (17.46 kg)
    Shipping Weight 47 lbs ( 21.3 kg)

    The R.5COAX66T high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R.5COAX66T comes with a factory-installed 200W, 70V/100V autoformer. Five-year limited product warranty fifteen-year enclosure warranty.

    Features
    • Weather-resistant, rotomolded UV enclosure
    • Weather-treated drivers and crossovers
    • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
    • High fidelity
    • High efficiency
    • Integral mounting points
    • High power passive crossover
    • Factory-installed 200W, 70V autoformer
    Loudspeaker Type 2-way, coaxial, weather-resistant, full-range
    Operating Range 80 Hz to 18 kHz 90 Hz to 12.5 kHz (±3.5 dB) 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V
    Sensitivity (1W/1m) 97 dB SPL (100 Hz to 13 kHz 1/3 octave bands) 96 dB SPL (250 Hz to 4 kHz speech range)
    200w Nominal Impedance 25 ohms
    Minimum Impedance 15.9 Ohms @ 9.8 kHz
    Nominal Ð6dB Beamwidth 60¡H (+20¡ / -6¡, 1.6 kHz to 12.5 kHz) 60¡V (+20¡ / -3¡, 1.6 kHz to 12.5 kHz)
    Axial Q / DI 15.2 / 11.8, 1.6 kHz to 12.5 kHz
    Crossover Frequency 2 kHz
    Recommended Signal Processing 80 Hz high pass filter
    Drivers LF 1 x 12Ó HF 1 x 1Ó exit titanium free, Ferrofluid-cooled
    Driver Protection DYNA-TECH protection circuitry
    Input Connection 12 foot (4 m) SJOW #16 gauge
    Controls None
    Enclosure Rotomolded LLDPE, light grey
    Mounting/Rigging Provisions (5) 3/8-16 rigging points
    Grille 3-layer WeatherStopª, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
    Environmental Performance IEC529 IP54W rating with a minimum 5-degree downward aiming angle
    Required Accessories 24 dB/Oct high pass filter
    Supplied Accessories (1) Yoke bracket, light grey (1) Aiming strap
    Optional Accessories PMB Series pole mount brackets
    Dimensions
    Height 16 inches (406.4 mm)
    Width 16 inches (406.4 mm)
    Depth 15.94 inches (404.88 mm)
    Weight 38.5 lbs (17.46 kg)
    Shipping Weight 47 lbs ( 21.3 kg)
