DAS EP-6K4 - 4-Channel Power Amplifier (8 ohm or 100V)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

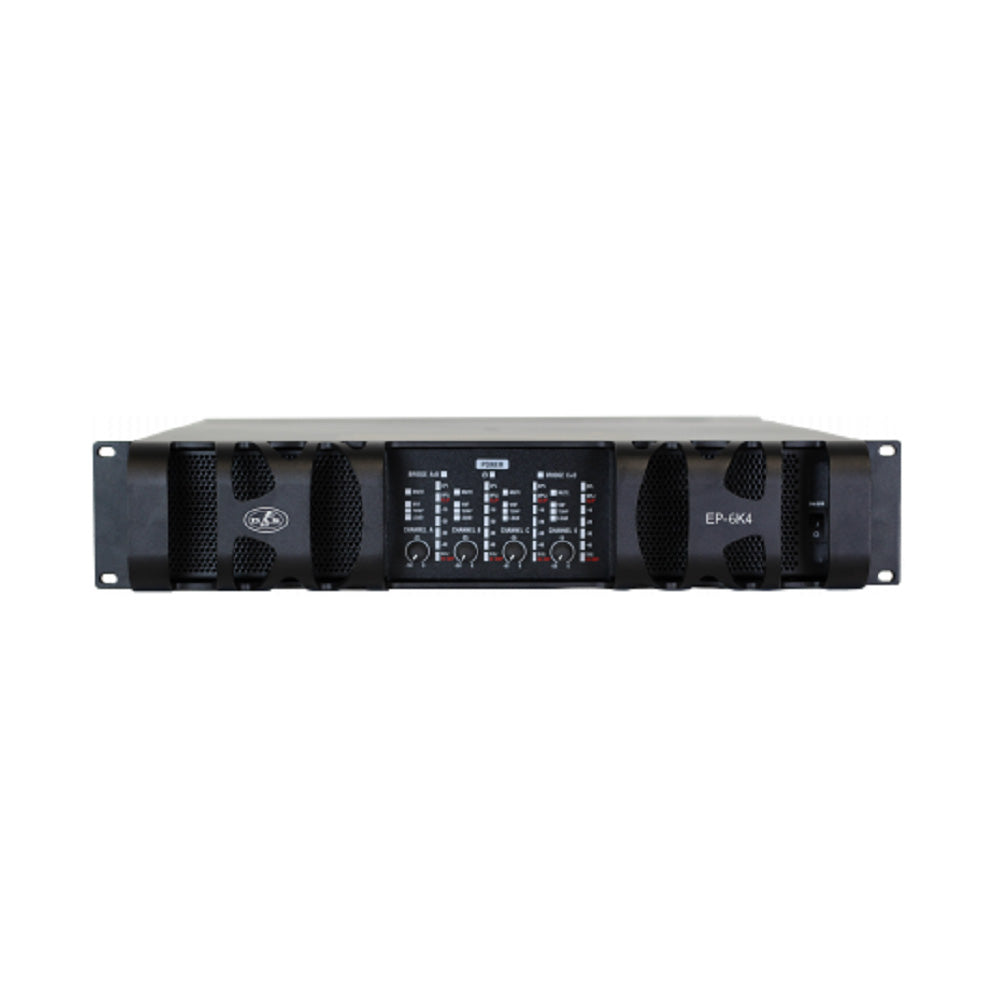

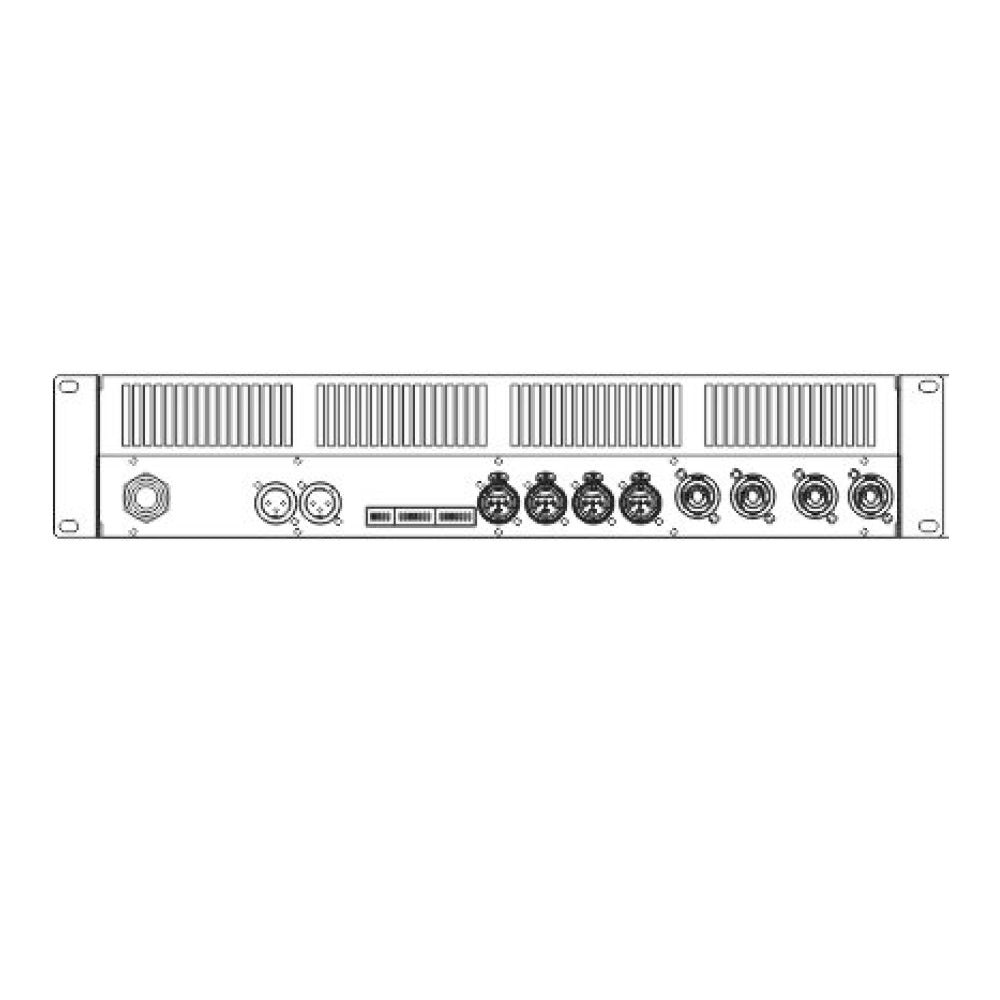

The EP Series EP-6K4 offers 1200 W per channel at four ohms. The amplifiers also offer operation in bridge mode. The rear panel incorporates switches for changing the gain and selection between standard and bridge modes. Input and output connections are made through XLR connectors. The EP-6K4 is housed in a rugged 2-unit high steel chassis.
Features:
- 4-channel 250 W @ 4 ohm
- 2-channel 500 W @ 100 V
- 2U DIN rack space
| Output Power Ratings | |
| Power 8 Ohms, Both Channels Driven | 4 x 625 W |
| Power 8 Ohms Bridged | 2 x 2500 W |
| Power 4 Ohms, Both Channels Driven | 4 x 1250 W |
| Electronics and Connectors | |
| Amplifier Channels | 4 |
| Output Circuitry | Switched Amplification |
| Frequency Response | 10 Hz-30 kHz |
| Voltage gain | 23 Ð 44 dB (Rear DIPs adjustable) |
| Controls | Power On/Off, Gain Pots, Rear DIP Switches |
| Cooling | Front-to-Back |
| Amplifier Protections | Thermal, Overload, Short Circuit, Over Current |
| LED Indicators | Independent Channel Meters, Clip/VPL, Temp, Mute, VHF, On |
| Audio Signal Input Connector | 4 x Balanced Neutrik XLR |
| Speaker Output Connector | 4 x Neutrik NL4 |
| Current Draw 230 V / 115 V | -/ 15 A |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 95 x 483 x 415 mm 3,8 x 19,0 x 16,3 in |
| Net Weight | 12,0 kg ( 26,4 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 190 x 525 x 570 mm 6,7 x 20,7 x 22,4 in |
| Shipping Weight | 13,0 kg ( 28,7 lb ) |
The EP Series EP-6K4 offers 1200 W per channel at four ohms. The amplifiers also offer operation in bridge mode. The rear panel incorporates switches for changing the gain and selection between standard and bridge modes. Input and output connections are made through XLR connectors. The EP-6K4 is housed in a rugged 2-unit high steel chassis.
Features:
- 4-channel 250 W @ 4 ohm
- 2-channel 500 W @ 100 V
- 2U DIN rack space
| Output Power Ratings | |
| Power 8 Ohms, Both Channels Driven | 4 x 625 W |
| Power 8 Ohms Bridged | 2 x 2500 W |
| Power 4 Ohms, Both Channels Driven | 4 x 1250 W |
| Electronics and Connectors | |
| Amplifier Channels | 4 |
| Output Circuitry | Switched Amplification |
| Frequency Response | 10 Hz-30 kHz |
| Voltage gain | 23 Ð 44 dB (Rear DIPs adjustable) |
| Controls | Power On/Off, Gain Pots, Rear DIP Switches |
| Cooling | Front-to-Back |
| Amplifier Protections | Thermal, Overload, Short Circuit, Over Current |
| LED Indicators | Independent Channel Meters, Clip/VPL, Temp, Mute, VHF, On |
| Audio Signal Input Connector | 4 x Balanced Neutrik XLR |
| Speaker Output Connector | 4 x Neutrik NL4 |
| Current Draw 230 V / 115 V | -/ 15 A |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 95 x 483 x 415 mm 3,8 x 19,0 x 16,3 in |
| Net Weight | 12,0 kg ( 26,4 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 190 x 525 x 570 mm 6,7 x 20,7 x 22,4 in |
| Shipping Weight | 13,0 kg ( 28,7 lb ) |
