DALE SKU # DAS-INTEGRALAS1

DAS INTEGRAL-AS1 - Stereo Audio Source with Tuner / DVD Player / USB / Bluetooth

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

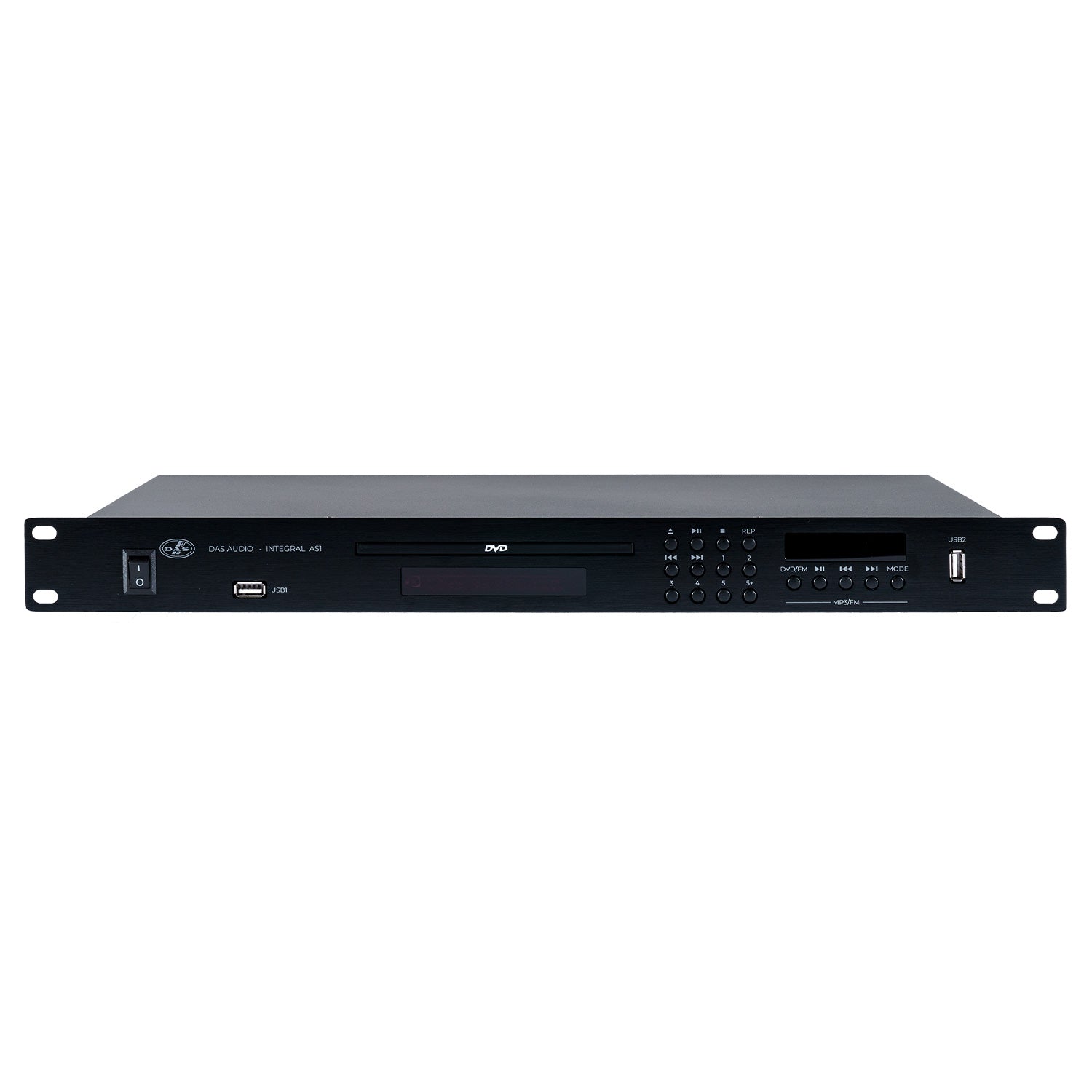

    INTEGRAL-AS1 is a stereo rack mount audio source with two independent channels. It is equipped with DVD player, FM/AM tuner, two USB slots and one BT channel for wireless connectivity. It performs 2x unbalanced and 2x balanced stereo audio outputs. The front panel integrates two screens to display the information of each channel and a collection of buttons to navigate and activate the different features available. IR remote control, FM/AM antennas and 2x RCA cables are included.

    Features:

    • Stereo rack mount audio sourc
    • Two independent channels
    • DVD player, FM/AM tuner, two USB slots, one BT channel for wireless connectivity
    Performance
    System 2 Channels Multimedia Player
    Compatible Media L Channel: CD / USB / Bluetooth
    R Channel: USB/Bluetooth/FM (RDS)/DAB + (DAB)/AM
    Playable Formats CD: CD / CD-R / CD-RW
    USB: MP3 / WAV / WMA / FLAC / APE
    Bluetooth Version Version 5.0
    Electronics and Connectors
    Frequency Range FM (RDS): 87.50 Ð 108.00 MHz
    DAB + (DAB): 168.00 Ð 240.00 MHz
    AM: 522 Ð 1620 kHz
    Frequency Response 20 Hz Ð 20 kHz (+0, -0.5 dB)
    Signal to Noise Ratio >105 dB
    Total Harmonic Distortion < 0.005%
    Unbalanced L/R Outputs 2 x RCA
    Level: 2 Vrms (max. 10 dBu) @ 10 kohms load
    Load Impedance:> 10 kohms
    Power Supply AC 60/50 Hz with selector 115/230 V
    Current Draw 230 V / 115 V 0.13 A/ 0.26 A
    Dimensions-Weight
    Dimensions ( H x W x D ) 45 x 483 x 255 mm
    1,8 x 19,0 x 10,0 in
    Net Weight 2,0 kg ( 5,1 lb )
    Shipping
    Carton Dimensions ( H x W x D ) 130 x 525 x 380 mm
    5,1 x 20,7 x 14,9 in
    Shipping Weight 3,0 kg ( 6,8 lb )

    INTEGRAL-AS1 is a stereo rack mount audio source with two independent channels. It is equipped with DVD player, FM/AM tuner, two USB slots and one BT channel for wireless connectivity. It performs 2x unbalanced and 2x balanced stereo audio outputs. The front panel integrates two screens to display the information of each channel and a collection of buttons to navigate and activate the different features available. IR remote control, FM/AM antennas and 2x RCA cables are included.

    Features:

    • Stereo rack mount audio sourc
    • Two independent channels
    • DVD player, FM/AM tuner, two USB slots, one BT channel for wireless connectivity
    Performance
    System 2 Channels Multimedia Player
    Compatible Media L Channel: CD / USB / Bluetooth
    R Channel: USB/Bluetooth/FM (RDS)/DAB + (DAB)/AM
    Playable Formats CD: CD / CD-R / CD-RW
    USB: MP3 / WAV / WMA / FLAC / APE
    Bluetooth Version Version 5.0
    Electronics and Connectors
    Frequency Range FM (RDS): 87.50 Ð 108.00 MHz
    DAB + (DAB): 168.00 Ð 240.00 MHz
    AM: 522 Ð 1620 kHz
    Frequency Response 20 Hz Ð 20 kHz (+0, -0.5 dB)
    Signal to Noise Ratio >105 dB
    Total Harmonic Distortion < 0.005%
    Unbalanced L/R Outputs 2 x RCA
    Level: 2 Vrms (max. 10 dBu) @ 10 kohms load
    Load Impedance:> 10 kohms
    Power Supply AC 60/50 Hz with selector 115/230 V
    Current Draw 230 V / 115 V 0.13 A/ 0.26 A
    Dimensions-Weight
    Dimensions ( H x W x D ) 45 x 483 x 255 mm
    1,8 x 19,0 x 10,0 in
    Net Weight 2,0 kg ( 5,1 lb )
    Shipping
    Carton Dimensions ( H x W x D ) 130 x 525 x 380 mm
    5,1 x 20,7 x 14,9 in
    Shipping Weight 3,0 kg ( 6,8 lb )
