Description

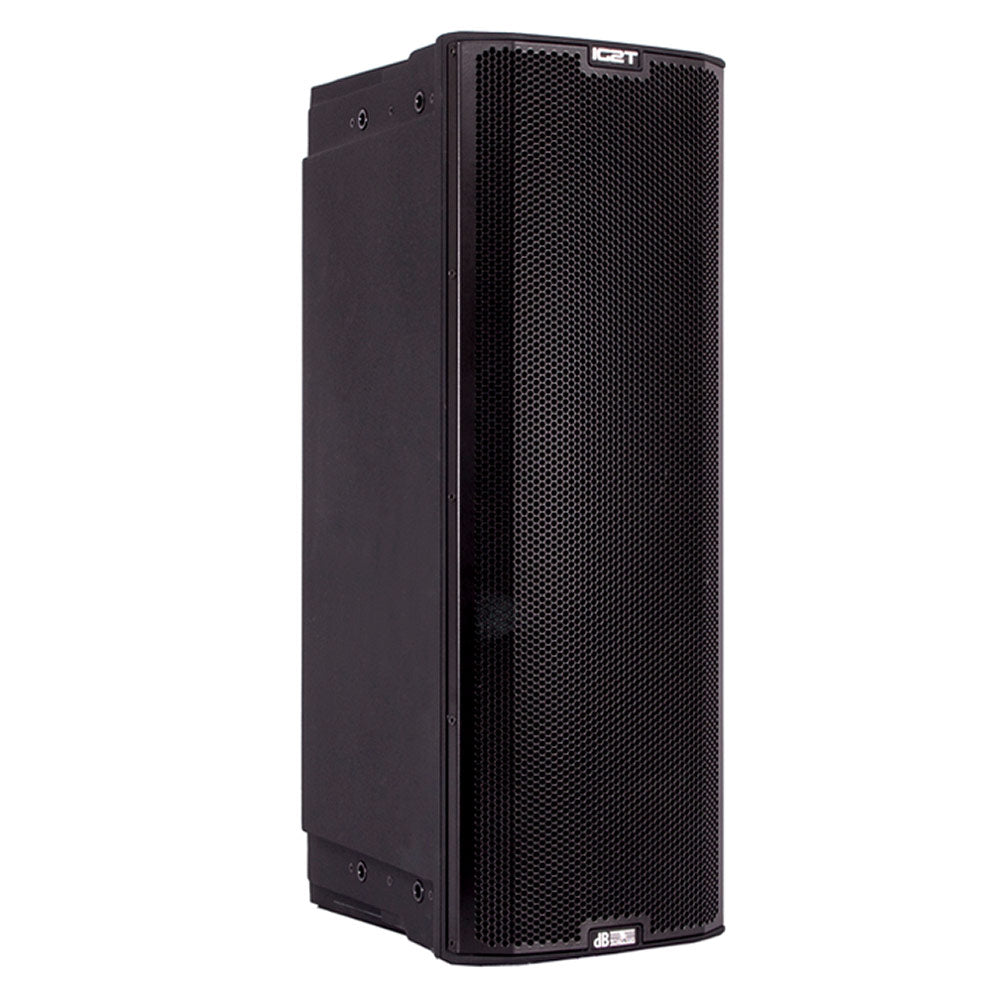

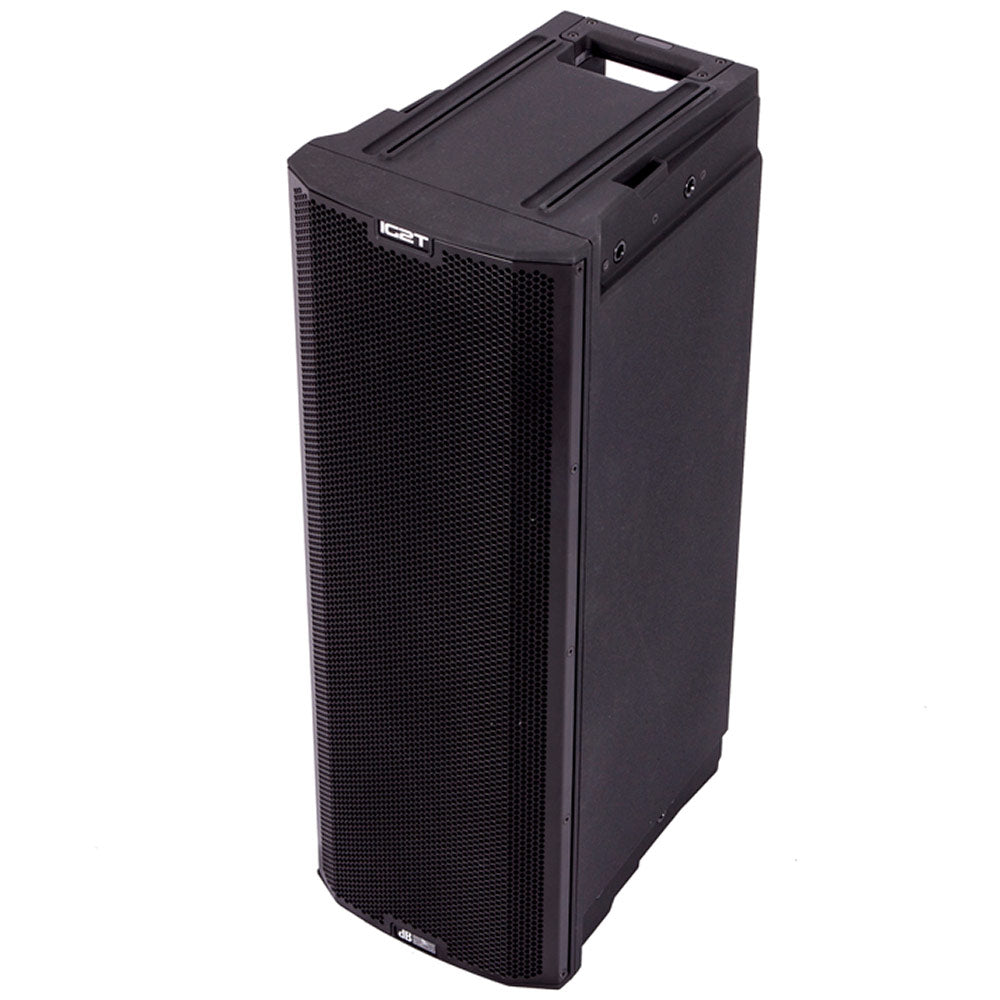

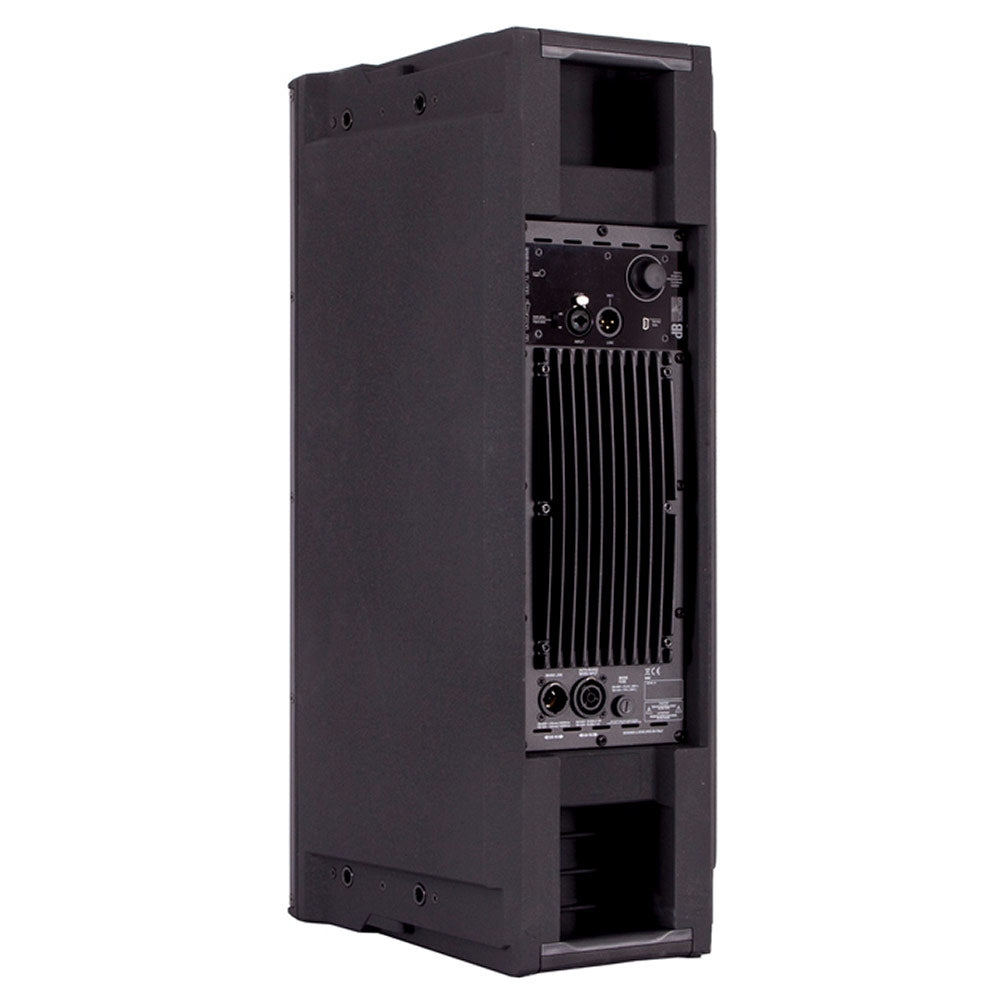

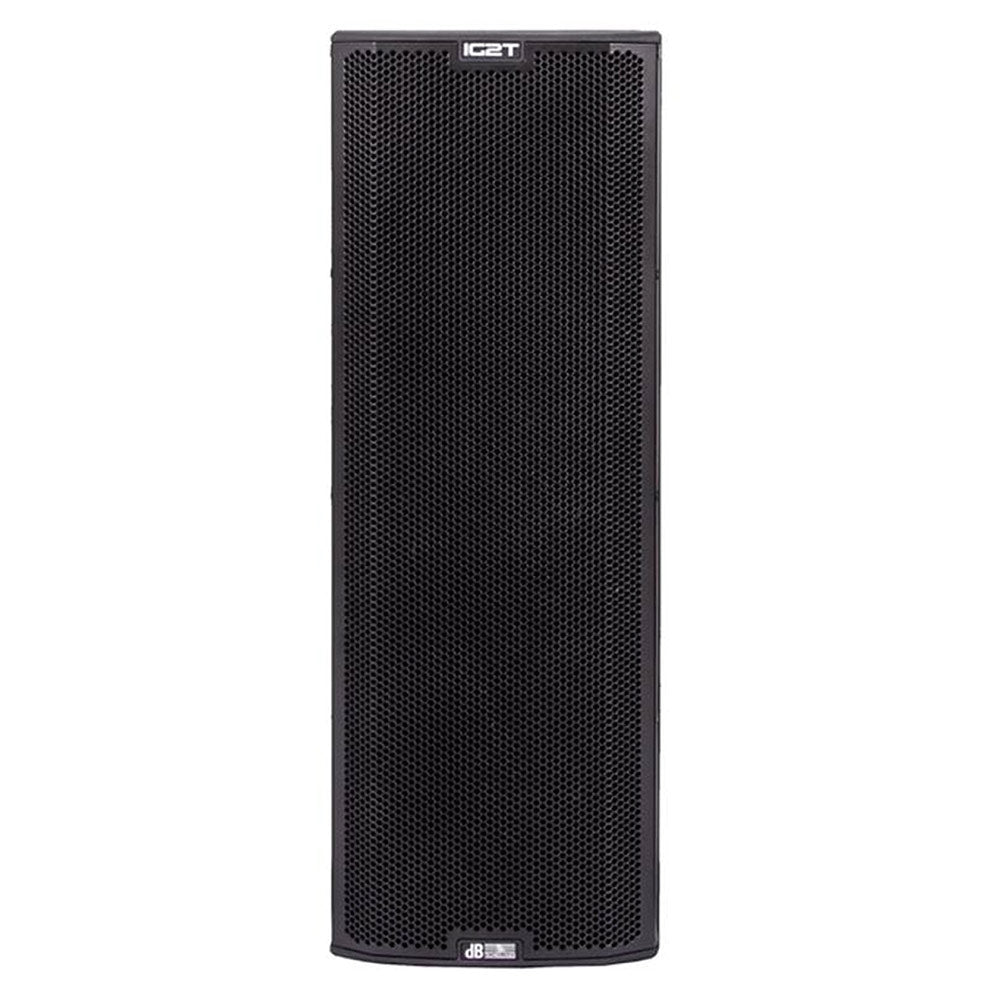

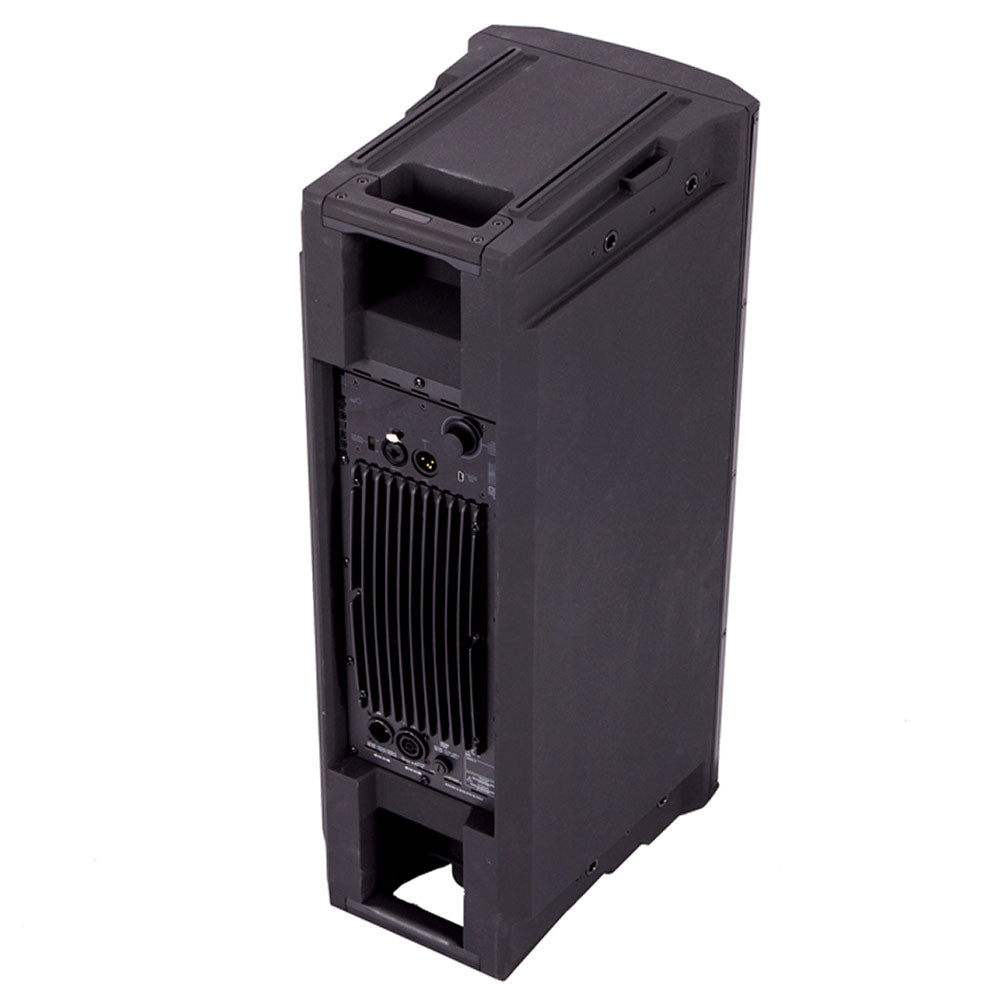

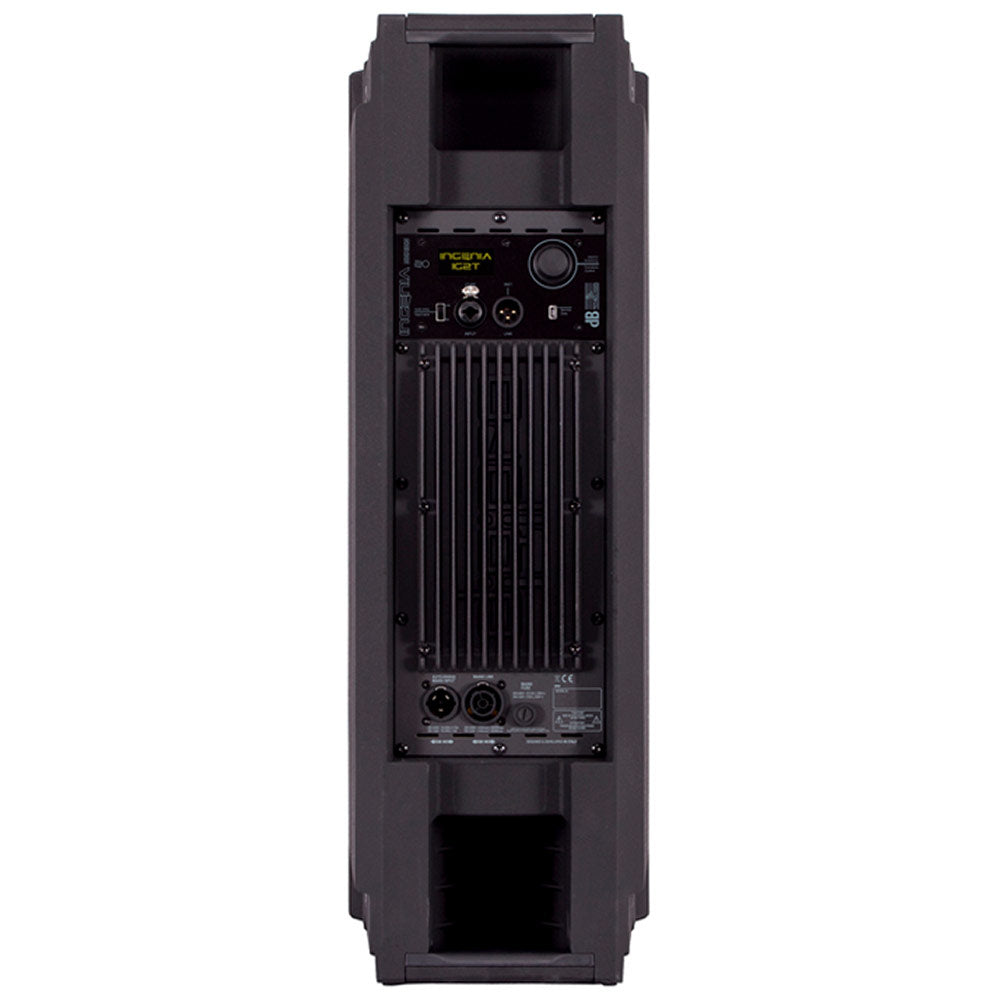

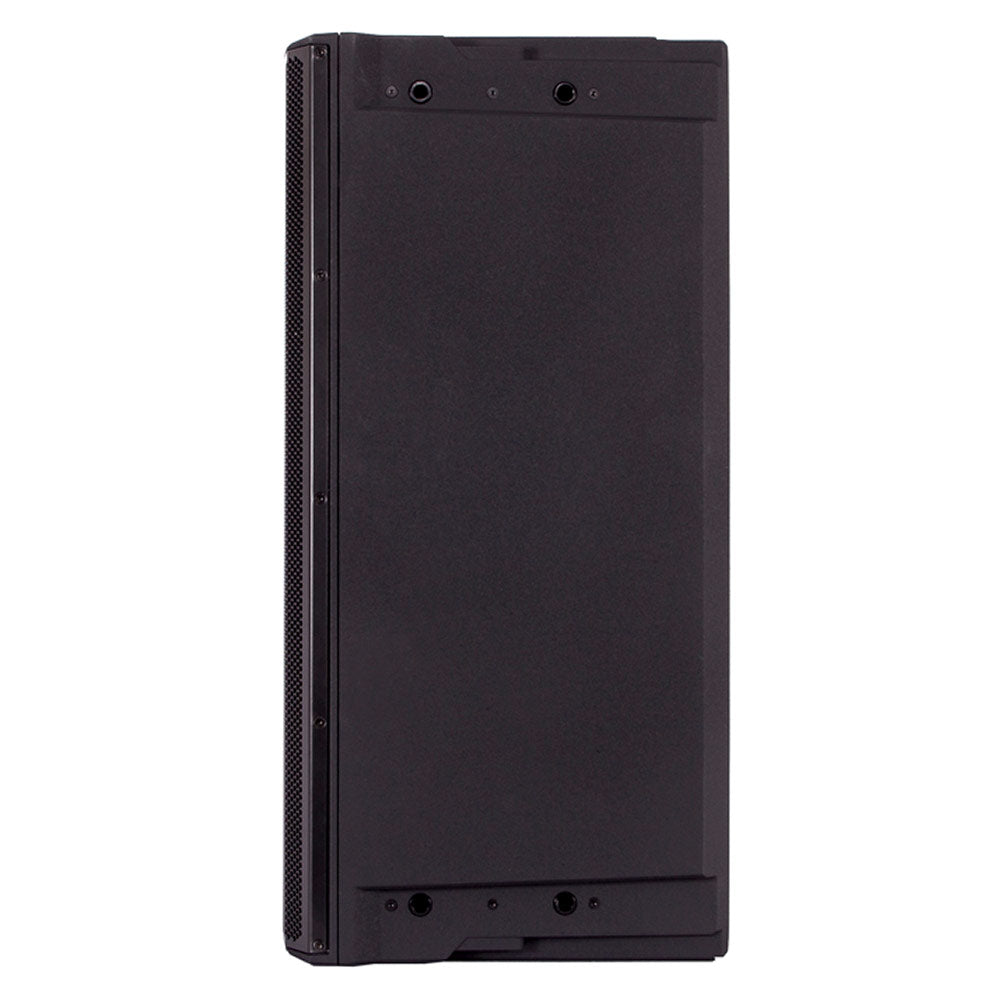

INGENIA IG2T is a vertical 2-way speaker, equipped with two 8" woofers and one 1" compression driver exit (voice coil: 1.4"), controlled by a latest generation 400 W RMS DIGIPRO G3 amplifier. Combined XLR-TR-TRS audio signal input. It allows to use a balanced XLR connector, or a 1/4" TS or TRS jack input. Balanced "XLR" output, allowing to send the input audio signal to another amplified speaker.
Features:
- An accurate design of the horn, featuring an asymmetric directivity, specifically designed to provide excellent acoustic coverage, ensuring an uncompromising sound definition in different indoor and outdoor applications
- Digital steering controlled by the powerful internal DSP, with the use of 2 stacked speakers, allowing to combine wider coverage and greater sound power with uncompromising accuracy and clarity
- Immediate automatic detection of the 2-speaker configuration, thanks to the infra-red communication system installed on the handles (EPD technology) and to the fast, customizable, DSP-controlled management. In this configuration the OLED displays orientate automatically. Just operating the control section of one of the two speakers allows to drive the whole system
- An innovative shape, with the use of 2 woofers and 1 driver, in a cabinet combining ruggedness, sound performances, compactness and easy handling
- Extreme versatility, allowing to quickly and easily save and recall one's settings, protecting them with a settable password
Type | Vertical 2 Way Speaker |
Frequency Response [-10dB] | 59 - 20.000 Hz |
Frequency Response [-6dB] | 63 - 19200 Hz |
Max SPL | 128 dB |
RMS Amplification Power | 400 W |
Peak Power | 800 W |
Interface | Push rotary encoder + OLED display |
Internal Controller | DSP 56 bit |
A/D D/A Converter | 24 bit/48 kHz |
Settings | Factory settings and customisable settings that can be saved and recalled |
Limiter | Peak, RMS, Thermal |
Inputs | 1x Combo (XLR/Jack) balanced/unbalanced |
Outputs | 1x XLR link OUT |
USB | Mini US, B type |
Ready for Fly-Bar | Yes |
Handles | 1 upper / 1 lower with IR interface |
Installation on Pole | Yes, 36 mm |
Dimensions (W x H x D) | 8.98 x 25.43 x 12.40 inches |
Weight | 28.22 lbs |
